FILTRAX (eco) 線上採樣超過濾處理系統 Sample Filtration Systems
產品編號：
典型應用：預先過濾線上儀器的水樣
Filtrax 水樣過濾系統可直接從曝氣池或最終沉澱池中提取水樣，並自動清洗其內建過濾膜。
● 採用超濾技術，超濾膜能過濾0.15μm顆粒
● 兩個蠕動泵交替運作，輪流抽取水樣
● 獨特空氣清洗設計，可自動清洗其內建之過濾膜
● 不需經常維護的潛水泵
● 採樣管可加熱以確保Filtrax在任何天氣條件下能在戶外使用
● 系統可自動監測水樣之流速
The Filtrax and Filtrax eco Sample Filtration Systems continually extract samples directly from process effluent and pull the water through ultra-filtration membranes (0.15 µm) that are immersed in the aeration basin or primary settling tank.
Once filtered, the samples can be analyzed with one of Hach’s analyzers, such as the UVAS or NITRITAX, when used in flow through installations.
Filtrax 水樣過濾系統可直接從曝氣池或最終沉澱池中提取水樣，並自動清洗其內建過濾膜。
● 採用超濾技術，超濾膜能過濾0.15μm顆粒
● 兩個蠕動泵交替運作，輪流抽取水樣
● 獨特空氣清洗設計，可自動清洗其內建之過濾膜
● 不需經常維護的潛水泵
● 採樣管可加熱以確保Filtrax在任何天氣條件下能在戶外使用
● 系統可自動監測水樣之流速
The Filtrax and Filtrax eco Sample Filtration Systems continually extract samples directly from process effluent and pull the water through ultra-filtration membranes (0.15 µm) that are immersed in the aeration basin or primary settling tank.
Once filtered, the samples can be analyzed with one of Hach’s analyzers, such as the UVAS or NITRITAX, when used in flow through installations.
Established Technology In Situ and Down the Line
The Hach Filtrax Sample Filtration System is specifically designed for efficient wastewater analysis. Samples are extracted directly from the activated sludge aeration basin or final settling tank and solids are removed in situ. Separate, high-maintenance submersible pumps become unnecessary. Sample delivery lines and analyzers stay clean. Sample extraction automatically alternates between two continuously cleaned filter elements to allow optimum cleaning of the idle filter. Sample pre-treatment and delivery is continuous and efficient even with a high sludge volume index or floating sludge.
Simple to Use and Maintain
A built-in air purge system in the Filtrax system prevents adhesion of solids to the filter membranes and greatly reduces maintenance cost and time. All tubing is completely accessible and easy to replace. Moving parts never come into contact with the sample. Self-diagnostics provide operators with three levels of error messages if components require attention. Operators control all Filtrax system functions with menu-driven software. The instrument display provides continuous readout of current flow rate through each filter module as well as heater status. Two programmable alarm relays are provided: one relay can be used to alert operators to inspect the Filtrax system when flow decreases and a second programmable relay can shut down the unit if flow decreases further.
Operating Principle

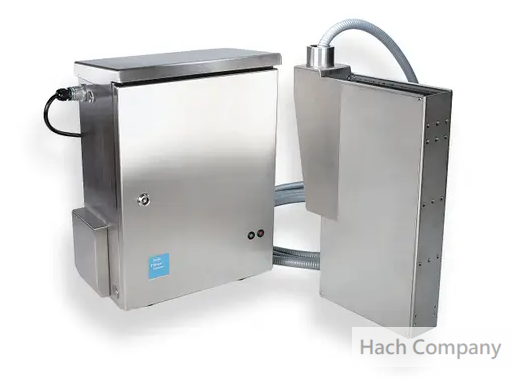

All control components are heated and contained in an IP55-rated enclosure, suitable for outdoor installation. The Filtrax system is made of three components. The control unit is internally heated for outdoor installation. Inside are sample pumps, an air compressor for filter membrane cleaning, and the electronic controller. Filters are constantly cleaned by a vigorous stream of air bubbles against the sides of the module. Two small peristaltic pumps alternately draw wastewater samples through the two filter membranes for optimum cleaning of the idle filter. The filtration module holder is made of stainless steel and is designed for submerged installation. It contains two filter modules each equipped with an ultra-filtration (0.15 µm) filter membrane. Samples are pulled to the control unit from the filtration module holder with a 15-ft. (5-m) heated suction hose. This hose also contains the air compressor tubing. Samples are then delivered directly to the online measuring instrument.
Hach's Family of Nutrient Analyzers
The Hach Filtrax Sample Filtration System is designed to optimize performance of Hach's Amtax sc Ammonia Analyzer or Phosphax sc Phosphate Analyzer. It also complements Hach's NITRATAX plus sc or NITRATAX clear sc Nitrate Analyzer by supplying solids-free sample to its flow through panel. Rely on the Filtrax system to provide properly conditioned sample to Hach's APA 6000 Alkalinity, Ammonia, Monochloramine, and Phosphate Analyzers too.
Works reliably, even with a high sludge volume index or floating sludge
