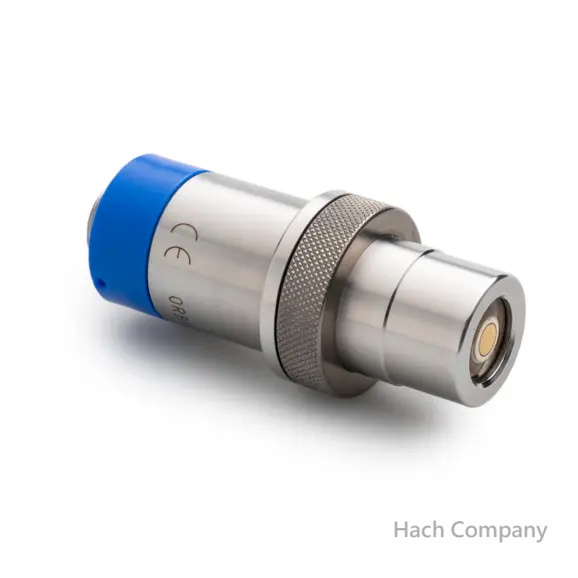

溶氧感測器 Orbisphere GA2400 Stainless Steel Oxygen Sensor (EC), 40 bar, EPDM O-rings
產品編號：GA2400-S00
Highly accurate and customizable oxygen measurement for all environments 適用於各種環境的高精準度的含氧量監測
The Orbisphere GA2400 oxygen (O₂) Electrochemical (EC) sensor is designed for process monitoring as well as laboratory analysis in the liquid or gas phases across. 專門為線上監測 ppm 或 ppb 等級環境中的溶氧量而設計。也可用於液相或氣相氧氣的實驗室分析。
With its large measuring possibilities the Orbisphere GA2400 O₂ EC-sensor can be used for a wide range of applications from beer or soft-drinks production to rinsing of semiconductor waters in chip-manufacturing plants, reactor coolant systems in nuclear power plants, or any place where oxygen measurement is critical. 優異監測效能，可廣泛應用於各種領域，從啤酒或汽水飲料生產到晶片製造廠半導體水的沖洗，再到核電廠反應器的冷卻系統，以及任何對氧氣量測量要求極高的環境應用
A small residual signal with unrivalled accuracy (± 0.1 ppb) is made possible by the exclusive sensor design. Different pre-mounted membrane kits are available to fulfill any particular process requirements and O₂ measurement ranges required. 獨特的設計能夠達到極低的殘餘訊號和無與倫比的精準度 (± 0.1 ppb)。多種預裝膜套組滿足多種特定的過程要求和所需的 O₂ 測量濃度範圍。
The stainless steel Orbisphere GA2400-S00 O₂ electrochemical sensor is mechanically resistant to pressure up to 40 bar. 採用不銹鋼材質，可承受 40 bar 的壓力。
Certifications : CE
Range 量測範圍 :
Range at 25 °C (77 °F)
2935A-A: 10 ppb - 400 ppm or 20 Pa - 1,000 kPa
2952A-A: 1 ppb - 80 ppm or 5 Pa - 200 kPa
2956A-A: 0.1 ppb - 20 ppm or 0.25 Pa - 50 kPa
29552A-A: 2 ppb - 80 ppm or 5 Pa - 200 kPa
Accuracy :
Accuracy = Trueness (ISO 57251)
2935A-A: The greater of ±1% of reading or ± 10 ppb, or ± 20 Pa
2952A-A: The greater of ±1% of reading or ± 2 ppb, or ± 5 Pa
2956A-A: The greater of ±1% of reading or ± 0.1 ppb¹, or ± 1 ppb², or ± 0.25 Pa
29552A-A: The greater of ±1% of reading or ± 2 ppb, or ± 5 Pa
¹ Accuracy is ± 0.1 ppb for 410, 510, 362x, 360x and 3655 instruments
² Accuracy is ± 1 ppb for 366x and 3650 instruments
Response Time :
Response time at 25 °C (77 °F) for a 90% signal change
2935A-A: 2.5 min
2952A-A: 38 s
2956A-A: 7.2 s
29552A-A: 90 s
Flow Rate :
Recommended flow rate in flow chamber
2935A-A: 25 mL/min
2952A-A: 50 mL/min
2956A-A: 180 mL/min
29552A-A: 50 mL/min
Pressure Range : 40 bar
Pressure resistance : 40 bar minimum with default PPS collar (100 bar with stainless steel collar)
Protection Class IP66
Temperature Compensation : -5 - 60 °C (23 - 140 °F)
Temperature resistance : -5 - 100 °C (23 - 212 °F)
Protection Class 防護等級 : IP66
What's included : Oxygen Sensor (GA2400-S00), incl. plastic screw-on storage cap for sensor head protection; protection cap without grille (33051-S0); protection cap with grille (33051-SP)
*使用 Orbisphere 510 Oxygen Controllers 控制器進行監控. Controllers sold separately.
關鍵字 : 純水 溶氧量 分析儀, pure water oxygen analyzer, 純水 溶氧 自動分析儀, 純水 溶氧 監測儀
The Orbisphere GA2400 oxygen (O₂) Electrochemical (EC) sensor is designed for process monitoring as well as laboratory analysis in the liquid or gas phases across. 專門為線上監測 ppm 或 ppb 等級環境中的溶氧量而設計。也可用於液相或氣相氧氣的實驗室分析。
With its large measuring possibilities the Orbisphere GA2400 O₂ EC-sensor can be used for a wide range of applications from beer or soft-drinks production to rinsing of semiconductor waters in chip-manufacturing plants, reactor coolant systems in nuclear power plants, or any place where oxygen measurement is critical. 優異監測效能，可廣泛應用於各種領域，從啤酒或汽水飲料生產到晶片製造廠半導體水的沖洗，再到核電廠反應器的冷卻系統，以及任何對氧氣量測量要求極高的環境應用
A small residual signal with unrivalled accuracy (± 0.1 ppb) is made possible by the exclusive sensor design. Different pre-mounted membrane kits are available to fulfill any particular process requirements and O₂ measurement ranges required. 獨特的設計能夠達到極低的殘餘訊號和無與倫比的精準度 (± 0.1 ppb)。多種預裝膜套組滿足多種特定的過程要求和所需的 O₂ 測量濃度範圍。
The stainless steel Orbisphere GA2400-S00 O₂ electrochemical sensor is mechanically resistant to pressure up to 40 bar. 採用不銹鋼材質，可承受 40 bar 的壓力。
Certifications : CE
Range 量測範圍 :
Range at 25 °C (77 °F)
2935A-A: 10 ppb - 400 ppm or 20 Pa - 1,000 kPa
2952A-A: 1 ppb - 80 ppm or 5 Pa - 200 kPa
2956A-A: 0.1 ppb - 20 ppm or 0.25 Pa - 50 kPa
29552A-A: 2 ppb - 80 ppm or 5 Pa - 200 kPa
Accuracy :
Accuracy = Trueness (ISO 57251)
2935A-A: The greater of ±1% of reading or ± 10 ppb, or ± 20 Pa
2952A-A: The greater of ±1% of reading or ± 2 ppb, or ± 5 Pa
2956A-A: The greater of ±1% of reading or ± 0.1 ppb¹, or ± 1 ppb², or ± 0.25 Pa
29552A-A: The greater of ±1% of reading or ± 2 ppb, or ± 5 Pa
¹ Accuracy is ± 0.1 ppb for 410, 510, 362x, 360x and 3655 instruments
² Accuracy is ± 1 ppb for 366x and 3650 instruments
Response Time :
Response time at 25 °C (77 °F) for a 90% signal change
2935A-A: 2.5 min
2952A-A: 38 s
2956A-A: 7.2 s
29552A-A: 90 s
Flow Rate :
Recommended flow rate in flow chamber
2935A-A: 25 mL/min
2952A-A: 50 mL/min
2956A-A: 180 mL/min
29552A-A: 50 mL/min
Pressure Range : 40 bar
Pressure resistance : 40 bar minimum with default PPS collar (100 bar with stainless steel collar)
Protection Class IP66
Temperature Compensation : -5 - 60 °C (23 - 140 °F)
Temperature resistance : -5 - 100 °C (23 - 212 °F)
Protection Class 防護等級 : IP66
What's included : Oxygen Sensor (GA2400-S00), incl. plastic screw-on storage cap for sensor head protection; protection cap without grille (33051-S0); protection cap with grille (33051-SP)
*使用 Orbisphere 510 Oxygen Controllers 控制器進行監控. Controllers sold separately.
關鍵字 : 純水 溶氧量 分析儀, pure water oxygen analyzer, 純水 溶氧 自動分析儀, 純水 溶氧 監測儀
The Hach® Orbisphere GA2400 & GA2800 EX oxygen (O2) Electrochemical (EC) sensors are designed for process monitoring of dissolved oxygen in ppm or ppb environments. It can also be utilized as part of laboratory analysis of oxygen in the liquid or gas phases.
Easy and fast maintenance 維護簡單快捷
Traditional cleaning processes can take more than thirty minutes to complete. The GA2400 and GA2800 EX come with an innovative cartridge system that contains everything needed to complete membrane and electrolyte solution change in less than 5 minutes. 傳統的清洗流程可能需超過三十分鐘才能完成。 GA2400 和 GA2800 EX 配備創新的濾芯系統，其中包含更換膜和電解液所需的一切，可在 5 分鐘內完成。
Low level oxygen measurement and unrivaled accuracy 優異精準度，監測低濃度氧氣量
The Hach Orbisphere GA2400 and GA2800 EX utilise an electrochemical oxygen sensor with a lower detection level of 0.1 ppb and unrivaled highly accurate readings of ±1%. This feature allows users to ensure control of low oxygen levels, for product and equipment integrity and avoiding corrosion. 採用電化學方法的氧氣感測器，偵測極限低至 0.1 ppb，讀數精準度高達 ±1%。此特性讓使用者能有效控制低氧濃度，確保產品和設備的完整性，並防止腐蝕。
The Hach Orbisphere GA2400 and GA2800 EX utilise an electrochemical oxygen sensor with a lower detection level of 0.1 ppb and unrivaled highly accurate readings of ±1%. This feature allows users to ensure control of low oxygen levels, for product and equipment integrity and avoiding corrosion. 採用電化學方法的氧氣感測器，偵測極限低至 0.1 ppb，讀數精準度高達 ±1%。此特性讓使用者能有效控制低氧濃度，確保產品和設備的完整性，並防止腐蝕。
Robust for harsh environments 堅固耐用，耐受嚴苛環境應用
The robust stainless steel or Hastelloy design makes the GA2400 and GA2800 EX sensor ideal for the most demanding applications. ATEX certification comes standard in all GA2800 units, making the sensor especially suitable for harsh chemical environments. 採用堅固的不銹鋼或哈氏合金材質，是嚴苛環境應用的理想選擇。所有 GA2800 型號均標配 ATEX 認證，適用嚴苛的化學環境應用。
The robust stainless steel or Hastelloy design makes the GA2400 and GA2800 EX sensor ideal for the most demanding applications. ATEX certification comes standard in all GA2800 units, making the sensor especially suitable for harsh chemical environments. 採用堅固的不銹鋼或哈氏合金材質，是嚴苛環境應用的理想選擇。所有 GA2800 型號均標配 ATEX 認證，適用嚴苛的化學環境應用。
