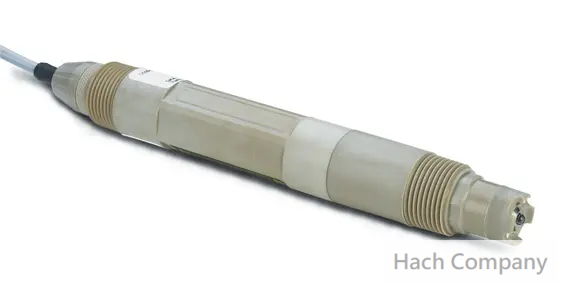

水中pH計 pHD sc Online pH Sensor - General Purpose
產品編號：DPD1P1Q06
General Purpose Online Process pH Sensor with Integrated Digital Electronics for "Plug and Play" with Hach sc Digital Controllers - pHD Technology, Glass pH Electrode, PEEK Housing, Convertible Mount, 10m Cable
通用型線上pH感測器，整合數位電子元件，與 Hach SC系列智慧型數位控制器連接後即可立即啟用 - pHD技術，玻璃pH電極，PEEK外殼，可轉換安裝方式，10公尺長電纜
The smart choice for accurate and reliable online process pH measurement
Compliance 認證 : Hazardous Location, Maritime, CE
Range 量測範圍 : -2.0 to 14.0 pH
Accuracy : ± 0.02 pH
Repeatability : ± 0.05 pH
Sensitivity : ± 0.01 pH
Drift : 0.03 pH per 24 hours, non-cumulative
Flow Rate : 3 m (10 ft.) per second, maximum
Sensor Cable : 1.8 m (6 ft.) polyurethane, 4-conductor cable with one shield, rated to 105°C (221°F)
Sensor Thread : 1" NPT
Temperature Sensor : NTC 300 Ω thermistor for automatic temperature compensation and analyzer temperature readout
Operating Temperature Range : -5 - 70 °C (23 - 158 °F) pHD and ORP
0 - 50 °C (32 - 122 °F) SS pHD
Before initial pH calibration, calibrate the temperature measurement when the sensor is in water or buffer which is at approximately the same temperature as the pH buffers (matches current recommendation)
Pressure Range : Maximum 10.7 bar . 6.9 bar for Digital Sensor at 70°C, and 6.9 bar for Analog Sensor at 105°C.
Cable Connection : Digital
Communication : Modbus

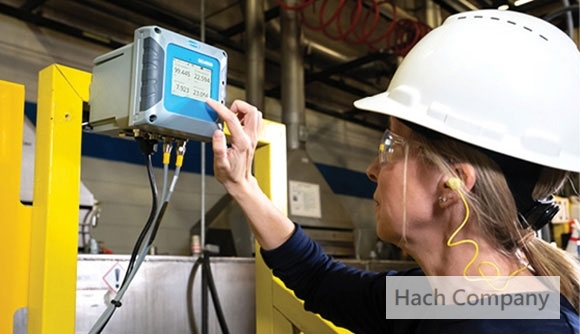

*連接 Hach SC系列 digital controllers 智慧型數位控制器即可立即使用
關鍵字 : 酸鹼值 感測器, 酸鹼度感測器, 水中酸鹼度 監測儀, 工業級pH計, 工業級酸鹼度計
通用型線上pH感測器，整合數位電子元件，與 Hach SC系列智慧型數位控制器連接後即可立即啟用 - pHD技術，玻璃pH電極，PEEK外殼，可轉換安裝方式，10公尺長電纜
The smart choice for accurate and reliable online process pH measurement
Compliance 認證 : Hazardous Location, Maritime, CE
Range 量測範圍 : -2.0 to 14.0 pH
Accuracy : ± 0.02 pH
Repeatability : ± 0.05 pH
Sensitivity : ± 0.01 pH
Drift : 0.03 pH per 24 hours, non-cumulative
Flow Rate : 3 m (10 ft.) per second, maximum
Sensor Cable : 1.8 m (6 ft.) polyurethane, 4-conductor cable with one shield, rated to 105°C (221°F)
Sensor Thread : 1" NPT
Temperature Sensor : NTC 300 Ω thermistor for automatic temperature compensation and analyzer temperature readout
Operating Temperature Range : -5 - 70 °C (23 - 158 °F) pHD and ORP
0 - 50 °C (32 - 122 °F) SS pHD
Before initial pH calibration, calibrate the temperature measurement when the sensor is in water or buffer which is at approximately the same temperature as the pH buffers (matches current recommendation)
Pressure Range : Maximum 10.7 bar . 6.9 bar for Digital Sensor at 70°C, and 6.9 bar for Analog Sensor at 105°C.
Cable Connection : Digital
Communication : Modbus
*連接 Hach SC系列 digital controllers 智慧型數位控制器即可立即使用
關鍵字 : 酸鹼值 感測器, 酸鹼度感測器, 水中酸鹼度 監測儀, 工業級pH計, 工業級酸鹼度計
Exceptional Process pH Sensor Performance with the Differential Electrode pHD Measurement Technique
This field-proven technique uses three electrodes instead of the two normally used in conventional pH sensors. Process and reference electrodes measure the pH differentially with respect to a third ground electrode. The end result is unsurpassed measurement accuracy, reduced reference junction potential, and elimination of sensor ground loops. These process pH sensors provide greater reliability, resulting in less downtime and maintenance.
Lower Maintenance Needs with the Double Junction Salt Bridge
The double junction salt bridge creates a barrier to contamination which minimizes the dilution of the internal standard cell solution. The result is lower maintenance needs and a longer time period between calibrations.
Extended Working Life with the Replaceable Salt Bridge/Protector
The unique, replaceable salt bridge holds an extraordinary volume of buffer to extend the working life of the sensor by protecting the reference electrode from harsh process conditions. The salt bridge simply threads onto the end of the sensor if replacement is needed.
Reliability with Built-in Encapsulated Preamp
Encapsulated construction protects the sensor’s built-in preamp from moisture and humidity, ensuring reliable sensor operation. The preamp in the pHD analog sensor produces a strong signal, enabling the sensor to be located up to 1000 m (3280 ft.) from the analyzer.
Patented Technology
The former GLI, now a Hach Company brand, invented the Differential Electrode Technique for pH measurement in 1970. The pHD™ sensor series (U.S. Patent Number 6395158B1, dated May 28, 2002) takes this field-proven technology to a new level.
