超純水臭氧感測器 Orbisphere C1100 Ozone sensor, titanium, up to 100 bar
產品編號：C1100-T00
Electrochemical ozone sensor, titanium version, maximum pressure 100 bar, with Smart capability. The C1100 can measure O3 below 1 ppb level with performance unrivaled in the market.
Orbisphere C1100 臭氧感測器採用電化學方法，鈦合金版本，最大壓力100 bar，具備智慧功能。 C1100 ozone sensor 能夠測量低於1 ppb的臭氧濃度，性能在市場上首屈一指。
The Orbisphere C1100 sensor is designed to measure ozone in ultra pure water loops, or in the sanitizing phase of any beverage production line (bypass).
This unique sensor does not require a specific set up or skilled operators for in-line operation.
Orbisphere C1100 ozone sensor 專門為測量超純水循環系統中的臭氧濃度而設計，也可用於任何飲料生產線（旁路）的消毒階段。
無需特殊設定或專業操作人員即可在線上運作。
Certifications : 2004/108/EC - EN 61326-1
Membrane : 2956A-C
Range 量測範圍 : 0 ppb - 50 ppm O₃
Accuracy : ± 0.4 ppb or ±5% whichever is the greater
Response Time : 30 s
Pressure Range : Up to 100 bar
Temperature Range : -5 - 45 °C
Flow Rate : 350 mL/min (typical)

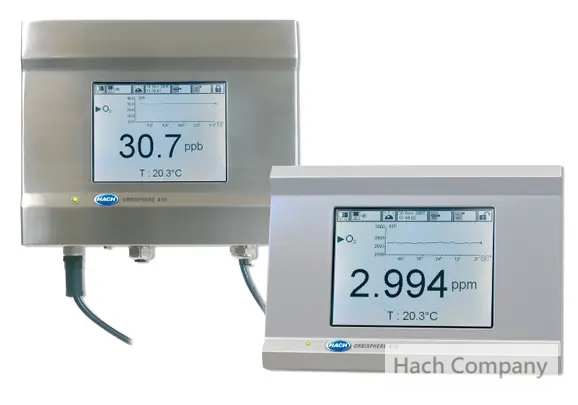

*使用 Orbisphere 510/410 controllers 進行控制 (sold separately)
關鍵字 : ultra pure water ozone analyzer, 超純水 臭氧 濃度 線上分析儀
Orbisphere C1100 臭氧感測器採用電化學方法，鈦合金版本，最大壓力100 bar，具備智慧功能。 C1100 ozone sensor 能夠測量低於1 ppb的臭氧濃度，性能在市場上首屈一指。
The Orbisphere C1100 sensor is designed to measure ozone in ultra pure water loops, or in the sanitizing phase of any beverage production line (bypass).
This unique sensor does not require a specific set up or skilled operators for in-line operation.
Orbisphere C1100 ozone sensor 專門為測量超純水循環系統中的臭氧濃度而設計，也可用於任何飲料生產線（旁路）的消毒階段。
無需特殊設定或專業操作人員即可在線上運作。
Certifications : 2004/108/EC - EN 61326-1
Membrane : 2956A-C
Range 量測範圍 : 0 ppb - 50 ppm O₃
Accuracy : ± 0.4 ppb or ±5% whichever is the greater
Response Time : 30 s
Pressure Range : Up to 100 bar
Temperature Range : -5 - 45 °C
Flow Rate : 350 mL/min (typical)
*使用 Orbisphere 510/410 controllers 進行控制 (sold separately)
關鍵字 : ultra pure water ozone analyzer, 超純水 臭氧 濃度 線上分析儀
True Zero - drift free and accurate measurements
With the unique Orbisphere platinum guard ring technology preventing false signals arising from the electrolyte, this sensor provides a true, drift free zero. Operators can be confident of measurements and alarm settings knowing the sensor is providing a 0.6 ppb detection level and ±0.4 ppb accuracy at a 5 ppb level.
Wasted production is eliminated with no alarm discrepancies and risk is reduced in stopping the production line.
With the unique Orbisphere platinum guard ring technology preventing false signals arising from the electrolyte, this sensor provides a true, drift free zero. Operators can be confident of measurements and alarm settings knowing the sensor is providing a 0.6 ppb detection level and ±0.4 ppb accuracy at a 5 ppb level.
Wasted production is eliminated with no alarm discrepancies and risk is reduced in stopping the production line.
Fast, easy, traceable and reliable calibration
The C1100 ozone sensor has a unique air calibration feature that offers operators a quick and easy method to calibrate without requiring an external standard. Air calibration provides an accuracy of better than ±5% (achieving better than ±1% against an ozone standard of known concentration). The sensor could be delivered with a traceable validation certificate (to be ordered separately) using a ±0.5% reference. The Orbisphere C1100 is the only sensor in the available that provides such certified high accuracy!
The C1100 ozone sensor has a unique air calibration feature that offers operators a quick and easy method to calibrate without requiring an external standard. Air calibration provides an accuracy of better than ±5% (achieving better than ±1% against an ozone standard of known concentration). The sensor could be delivered with a traceable validation certificate (to be ordered separately) using a ±0.5% reference. The Orbisphere C1100 is the only sensor in the available that provides such certified high accuracy!
Low cost maintenance
With the patented Orbisphere cartridge, maintenance is easy. Both the set up and the initial sensor replacement procedure can be performed in just 3 minutes without the risk of miss positioning the membrane. This unique benefit substantially reduces and saves your annual maintenance costs.
With the patented Orbisphere cartridge, maintenance is easy. Both the set up and the initial sensor replacement procedure can be performed in just 3 minutes without the risk of miss positioning the membrane. This unique benefit substantially reduces and saves your annual maintenance costs.
Unbeatable reliability
Orbisphere has a history for quality and reliability when it comes to manufacturing long lasting and accurate instrumentation. The Orbisphere C1100 ozone sensor is designed to offer beverage and water quality operators peace of mind when measuring ozone.
Orbisphere has a history for quality and reliability when it comes to manufacturing long lasting and accurate instrumentation. The Orbisphere C1100 ozone sensor is designed to offer beverage and water quality operators peace of mind when measuring ozone.
