水中濁度和酸鹼度監測 Dual Parameter Monitoring Panel with SC4500, TU5300sc and digital pH Sensor
產品編號：DPMP-TUPHD

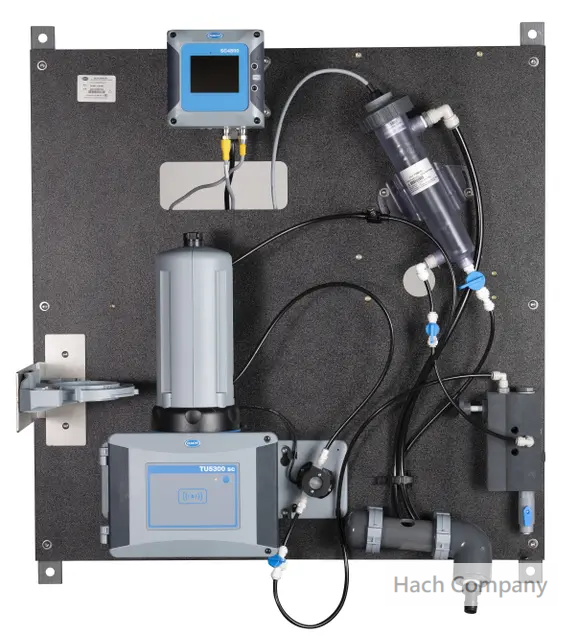

The Dual Parameter Turbidity panels offer TU5 Series TU5300sc Low Range Laser Turbidimeter, Digital pH Sensor and SC4500 controller in the convenience of one panel. These panel configurations are pre-engineered, ready to install, simple solutions that are designed to work together.
雙參數整合 TU5300sc 低濃度濁度感測器、數位酸鹼度感測器以及SC4500控制器
Parameter 分析參數 : Turbidity, pH
Sensors 感測器 :
TU5300sc
pHD
Range 量測範圍 :
TU5300sc 0 - 700 NTU / FNU / TE/F / FTU
pHD -2.0 - 14.0 pH
Regulatory : (US)EPA
Solution Type : Drinking water, raw and treated 飲用水（原水和處理水）
Certifications : CE compliant
US FDA accession number: 1420493-000 EPA version, 1420492-000 ISO version
Complies with IEC/EN 60825-1 and to 21 CFR 1040.10 in accordance with Laser Notice No. 50)
Australian ACMA Marking
Light Source 光源 : Class 2 laser product, with embedded 650 nm (EPA 0.43 mW) or Class 1 laser product, with embedded 850 nm (ISO), max. 0.55 mW (complies with IEC/EN 60825-1 and to 21 CFR 1040.10 in accordance with Laser Notice No. 50)
Sample Flow Rate : 100 - 1000 mL/min; optimal flow rate: 200 - 500 mL/min
Sample Pressure : 0.3 - 5.2 bar (4.5 - 75 psi)
System Check : Yes
Calibration Method : For Formazin and Stablcal:
20 NTU from 0 to 40 NTU; at 20 FNU and 600 NTU for full range
Custom calibration for up to 6-point calibrations
Verification : Liquid: Stablcal®, Formazin (0.1 to 40 NTU)
Dry: Glass Rod at <0.1 NTU
關鍵字 : 線上濁度計, 線上酸鹼度計, turbidity analyzer, pH 感測器, online turbidimeter, 自來水 濁度計
