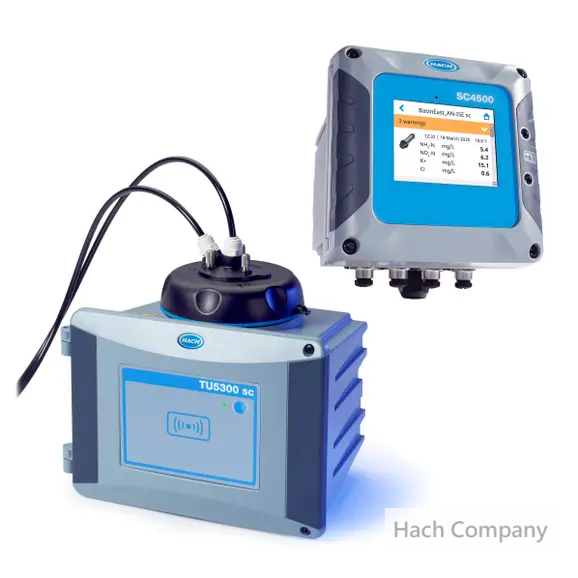

水中濁度監測儀 TU5300sc Low Range Laser Turbidimeter, EPA Version, Automatic Cleaning Module, with SC4500 Controller, 1 Channel
產品編號：LXV525.97KTO011
The EPA approved TU5 Series® platform employs a unique optical design that sees more of your sample than any other turbidimeter, delivering the best low level precision and sensitivity while minimizing variability between measurements. For the first time you will be able to remove uncertainty of which measurement to trust between your lab and process instruments, thanks to identical 360° x 90° Detection® Technology in any TU5 Series turbidimeter. Hach TU5系列線上濁度計方法取得美國環保署核准，創新突破的360° x 90° Detection™ 專利光學偵測技術，能偵測到更多的水質濁度狀況，提供最佳的低濃度濁度監測精準度和靈敏度，以及更快速的濁度自動監測。
The TU5300sc Low Range Laser Turbidimeter dramatically reduces the time needed to get a turbidity measurement you can rely on. A stable laser light source eliminates the need for annual lamp replacements. The turbidimeter’s measurement surface area has been reduced by 98%, allowing you to save time cleaning. An automatic cleaning module is available that keeps your instrument clean, reducing the amount of time spent cleaning the instrument ever further. All of this, along with the ability to measure to 2 mNTU, gives you the next standard in the evolution of turbidity. 穩定的雷射光源無需每年更換燈泡。濁度計的測量表面積減少了 98%，因而節省清潔時間。可選配自動清潔模組以保持儀器清潔，進一步減少清潔時間。加上 2 mNTU 的測量能力，為您帶來濁度測量領域的全新標準。
Only the new TU5 Series Lab & Process Turbidimeters with 360° x 90° Detection deliver unprecedented confidence that a change in your reading is a change in your water. TU5系列濁度監測儀測試快，反應快，節省水量。實驗室設備無需使用矽油擦拭樣品瓶，縮減測試所需的步驟並減少可能的誤差。
Model : TU5300sc
Light Source : Class 2 laser product, with embedded 650 nm (EPA 0.43 mW) or Class 1 laser product, with embedded 850 nm (ISO), max. 0.55 mW (complies with IEC/EN 60825-1 and to 21 CFR 1040.10 in accordance with Laser Notice No. 50)
Certifications : CE compliant
US FDA accession number: 1420493-000 EPA version, 1420492-000 ISO version
Australian ACMA Marking
Range 量測範圍 :
EPA:
0 - 700 NTU / FNU / TE/F / FTU
0 - 100 mg/L
0 - 175 EBC
ISO:
0 - 1000 NTU / FNU / TE/F / FTU
0 - 100 mg/L
0 - 250 EBC
Accuracy : ±2% or 0.01 NTU from 0 - 40 NTU
±10% of reading from 40 - 1000 NTU based on Formazin primary standard
Repeatability : Better than 1% of reading or ±0.002 NTU (TU5300sc) or ±0.0006 NTU (TU5400sc) on Formazin at 25 °C (77 °F), whichever is greater
Resolution : 0.0001 NTU / FNU / TE/F / FTU / EBC
Response Time : TU5300sc: T90 <45 seconds at 100 mL/min
TU5400sc: T90 <30 seconds at 100 mL/min
Sample Flow Rate : 100 - 1000 mL/min; optimal flow rate: 200 - 500 mL/min
Calibration Method : For Formazin and Stablcal®:
20 NTU from 0 to 40 NTU; at 20 FNU and 600 NTU for full range
Custom calibration for up to 6-point calibrations
關鍵字 : 水中濁度分析儀, 線上 濁度計, Turbidimeter, Turbidity meter, Turbidity analyzer, Turbidity sensor, 水中濁度 濃度 監測
The TU5300sc Low Range Laser Turbidimeter dramatically reduces the time needed to get a turbidity measurement you can rely on. A stable laser light source eliminates the need for annual lamp replacements. The turbidimeter’s measurement surface area has been reduced by 98%, allowing you to save time cleaning. An automatic cleaning module is available that keeps your instrument clean, reducing the amount of time spent cleaning the instrument ever further. All of this, along with the ability to measure to 2 mNTU, gives you the next standard in the evolution of turbidity. 穩定的雷射光源無需每年更換燈泡。濁度計的測量表面積減少了 98%，因而節省清潔時間。可選配自動清潔模組以保持儀器清潔，進一步減少清潔時間。加上 2 mNTU 的測量能力，為您帶來濁度測量領域的全新標準。
Only the new TU5 Series Lab & Process Turbidimeters with 360° x 90° Detection deliver unprecedented confidence that a change in your reading is a change in your water. TU5系列濁度監測儀測試快，反應快，節省水量。實驗室設備無需使用矽油擦拭樣品瓶，縮減測試所需的步驟並減少可能的誤差。
Model : TU5300sc
Light Source : Class 2 laser product, with embedded 650 nm (EPA 0.43 mW) or Class 1 laser product, with embedded 850 nm (ISO), max. 0.55 mW (complies with IEC/EN 60825-1 and to 21 CFR 1040.10 in accordance with Laser Notice No. 50)
Certifications : CE compliant
US FDA accession number: 1420493-000 EPA version, 1420492-000 ISO version
Australian ACMA Marking
Range 量測範圍 :
EPA:
0 - 700 NTU / FNU / TE/F / FTU
0 - 100 mg/L
0 - 175 EBC
ISO:
0 - 1000 NTU / FNU / TE/F / FTU
0 - 100 mg/L
0 - 250 EBC
Accuracy : ±2% or 0.01 NTU from 0 - 40 NTU
±10% of reading from 40 - 1000 NTU based on Formazin primary standard
Repeatability : Better than 1% of reading or ±0.002 NTU (TU5300sc) or ±0.0006 NTU (TU5400sc) on Formazin at 25 °C (77 °F), whichever is greater
Resolution : 0.0001 NTU / FNU / TE/F / FTU / EBC
Response Time : TU5300sc: T90 <45 seconds at 100 mL/min
TU5400sc: T90 <30 seconds at 100 mL/min
Sample Flow Rate : 100 - 1000 mL/min; optimal flow rate: 200 - 500 mL/min
Calibration Method : For Formazin and Stablcal®:
20 NTU from 0 to 40 NTU; at 20 FNU and 600 NTU for full range
Custom calibration for up to 6-point calibrations
關鍵字 : 水中濁度分析儀, 線上 濁度計, Turbidimeter, Turbidity meter, Turbidity analyzer, Turbidity sensor, 水中濁度 濃度 監測
Groundbreaking 360° x 90° Detection Technology
The TU5 Series employs a patented optical design that sees more of your sample than any other turbidimeter, delivering the best low level precision and sensitivity while minimizing variability from test to test.
The TU5 Series employs a patented optical design that sees more of your sample than any other turbidimeter, delivering the best low level precision and sensitivity while minimizing variability from test to test.
Everything about turbidity – faster
The TU5 Series dramatically reduces the time needed to get a turbidity measurement you can rely on, with 98% less online sample surface area to clean, sealed vials for calibration, and the elimination of the need for indexing and silicone oil in the lab. Not to mention, a smaller online sample volume means you will detect events almost immediately.
The TU5 Series dramatically reduces the time needed to get a turbidity measurement you can rely on, with 98% less online sample surface area to clean, sealed vials for calibration, and the elimination of the need for indexing and silicone oil in the lab. Not to mention, a smaller online sample volume means you will detect events almost immediately.
Easy Adoption
The familiar experience of a modern touchscreen, the ability to use your current Hach sensors, and the same footprint as the SC200, make installation and integration of the SC4500 Controller seamless.
The familiar experience of a modern touchscreen, the ability to use your current Hach sensors, and the same footprint as the SC200, make installation and integration of the SC4500 Controller seamless.
No Time for Downtime
The SC4500's built-in predictive diagnostic software ensures measurement confidence and reduces the risk of unexpected equipment downtime by enabling proactive maintenance planning via MSM, including step-by-step instructions.
The SC4500's built-in predictive diagnostic software ensures measurement confidence and reduces the risk of unexpected equipment downtime by enabling proactive maintenance planning via MSM, including step-by-step instructions.
