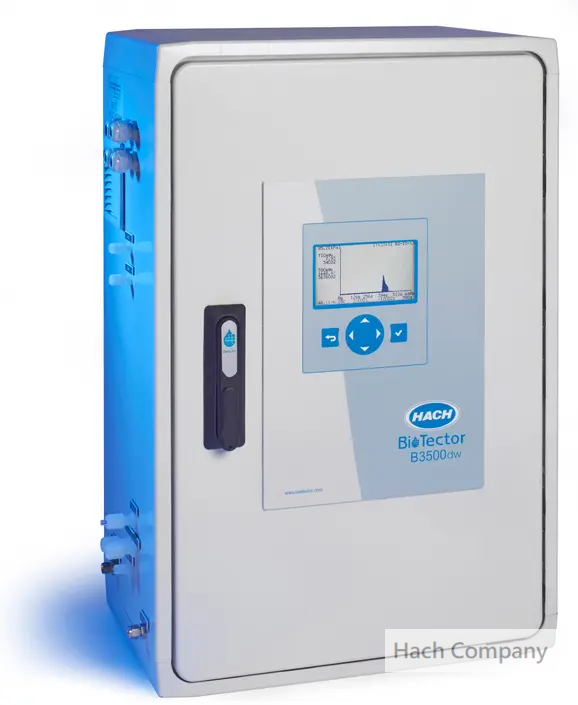

水中總有機碳監測儀-自來水應用 BioTector B3500dw Process TOC analyzer, 0 - 25 ppm
產品編號：DWACAA152AAA2
Maximum uptime and reliability for TOC analysis in drinking water applications Hach BioTector B3500dw 運用獲得專利、經美國環保署飲用水方法核可的兩級高級氧化技術，得以提供信賴的準確監測數據，為自來水應用提供最大的可靠度和正常運行時間。通常每年僅需維護兩次即可完成試劑補充、泵管更換和校正等標準項目。
The Hach BioTector B3500dw, with patented, EPA drinking water method approved Two Stage, Advanced Oxidation Technology, provides accurate results you can be confident in, and gives you maximum reliability and uptime for drinking water applications. The analyzer typically requires maintenance only twice a year for standard items like reagent replenishment, pump tube replacement and calibration, making it an affordable TOC analyzer option.
兩階段的先進氧化專利技術(TSAO)提供絕佳穩定度 - B3500dw的自清潔水樣反應器採用美國EPA方法批准的專利技術，具有兩階段先進氧化技術，可提供最佳可靠度。
Because the analyzer body has one of the most compact analyzer footprints available, plants can free up critical wall space that can be used for other instruments. The B3500dw typically requires reagent replenishment only once every six months instead of bi-weekly or monthly, plus the analyzer has the ability to monitor two streams at the same time, and calculate % TOC removal eliminating the need for two separate analyzers. The result is accurate, low cost analysis you can rely on.
With maximum reliability and uptime along with low operating costs, the B3500dw provides immediate, direct savings and is the industry’s choice when it comes to TOC analysis for drinking water applications.
Many additional versions available on request.
Parameter 分析參數 : TOC (NPOC), TIC, % TOC removal (with 2 streams) and COD, BOD after correlation
Measurement Method 監測方法 : Infrared measurement of CO₂ after oxidation
(DIN EN 1484:1997-08, ISO 8245:1999-03, EPA 415.1)
Oxidation Method 氧化方法 : Patented Two-Stage Advanced Oxidation Process (TSAO) using Hydroxyl Radicals, Hach Company method 10261 (EPA approved for drinking water)
Range 量測範圍 : 0 - 25 mg/L C
Range Selection : Automatic or manual range selection
Repeatability : ±3% of reading or ±0.03 mg/L, whichever is greater;
Lower Limit of detection LOD = 0.06 mg/L
Particle Size : Up to 100 µm
Cycle Time : From 5.5 minutes, depending on range and application
Data Storage 數據儲存 : Previous 9999 reaction data
Previous 99 fault events
Channels : 1 Channel / Grab sample-Calibration Port (includes two 4-20mA outputs enabled as standard)
Communication 通訊傳輸 : Modbus RTU, Modbus TCP/IP & Profibus (when the Profibus option is selected, the digital output signals are sent through the Profibus converter with its specific communication protocol)
關鍵字 : 線上 總有機碳分析儀, Online TOC analyzer, 線上連續監測水中TOC
The Hach BioTector B3500dw, with patented, EPA drinking water method approved Two Stage, Advanced Oxidation Technology, provides accurate results you can be confident in, and gives you maximum reliability and uptime for drinking water applications. The analyzer typically requires maintenance only twice a year for standard items like reagent replenishment, pump tube replacement and calibration, making it an affordable TOC analyzer option.
兩階段的先進氧化專利技術(TSAO)提供絕佳穩定度 - B3500dw的自清潔水樣反應器採用美國EPA方法批准的專利技術，具有兩階段先進氧化技術，可提供最佳可靠度。
Because the analyzer body has one of the most compact analyzer footprints available, plants can free up critical wall space that can be used for other instruments. The B3500dw typically requires reagent replenishment only once every six months instead of bi-weekly or monthly, plus the analyzer has the ability to monitor two streams at the same time, and calculate % TOC removal eliminating the need for two separate analyzers. The result is accurate, low cost analysis you can rely on.
With maximum reliability and uptime along with low operating costs, the B3500dw provides immediate, direct savings and is the industry’s choice when it comes to TOC analysis for drinking water applications.
Many additional versions available on request.
Parameter 分析參數 : TOC (NPOC), TIC, % TOC removal (with 2 streams) and COD, BOD after correlation
Measurement Method 監測方法 : Infrared measurement of CO₂ after oxidation
(DIN EN 1484:1997-08, ISO 8245:1999-03, EPA 415.1)
Oxidation Method 氧化方法 : Patented Two-Stage Advanced Oxidation Process (TSAO) using Hydroxyl Radicals, Hach Company method 10261 (EPA approved for drinking water)
Range 量測範圍 : 0 - 25 mg/L C
Range Selection : Automatic or manual range selection
Repeatability : ±3% of reading or ±0.03 mg/L, whichever is greater;
Lower Limit of detection LOD = 0.06 mg/L
Particle Size : Up to 100 µm
Cycle Time : From 5.5 minutes, depending on range and application
Data Storage 數據儲存 : Previous 9999 reaction data
Previous 99 fault events
Channels : 1 Channel / Grab sample-Calibration Port (includes two 4-20mA outputs enabled as standard)
Communication 通訊傳輸 : Modbus RTU, Modbus TCP/IP & Profibus (when the Profibus option is selected, the digital output signals are sent through the Profibus converter with its specific communication protocol)
關鍵字 : 線上 總有機碳分析儀, Online TOC analyzer, 線上連續監測水中TOC
Rock solid reliability
With patented, EPA method approved Two Stage Advanced Oxidation Technology, the self-cleaning sample reactor of B3500dw delivers maximum reliability.
With patented, EPA method approved Two Stage Advanced Oxidation Technology, the self-cleaning sample reactor of B3500dw delivers maximum reliability.
Lowest cost of ownership
With its 99.86% uptime, semi-annual maintenance and reagent replenishment is all that is needed.
With its 99.86% uptime, semi-annual maintenance and reagent replenishment is all that is needed.
Secure your source water
TSAO technology analyzes organics in your source that are invisible to scanning UV technologies.
TSAO technology analyzes organics in your source that are invisible to scanning UV technologies.
