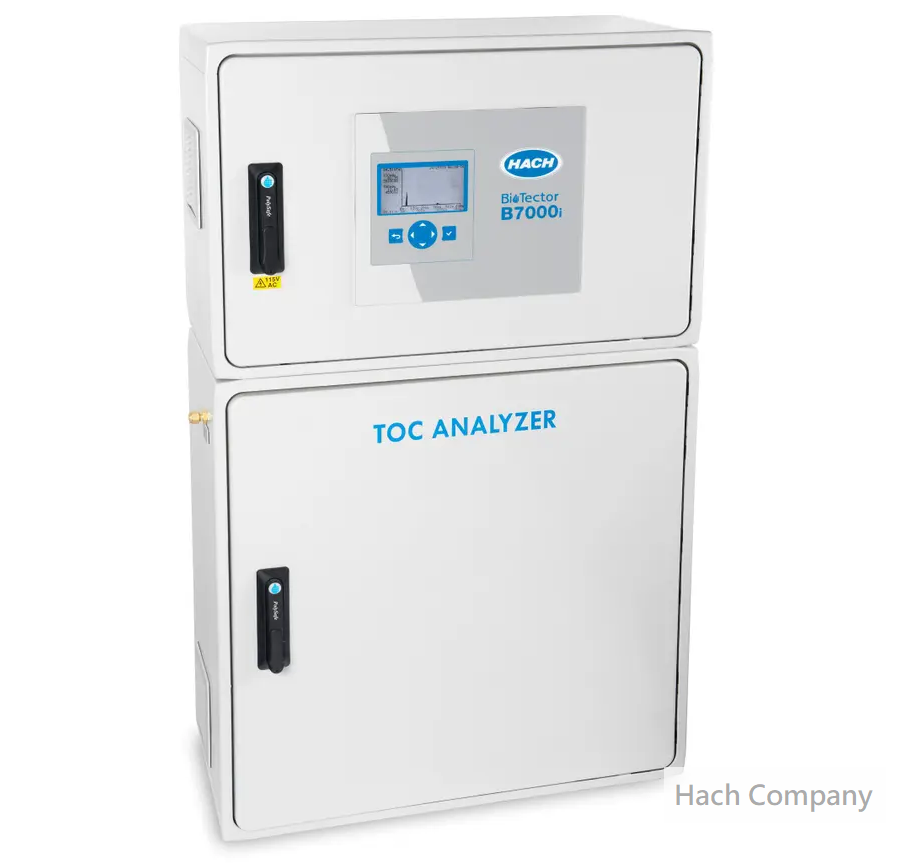

水中總有機碳線上分析儀 BioTector B7000i Online TOC Analyzer, 0 - 10000 mg/L C, 1 stream, 115 V AC
產品編號：B7AAAA052AABAA2
Hach Biotector B7000i online TOC analyzer 為高精密型水中總有機碳線上監測儀，滿足特殊高度污染環境的水質TOC監測需求。B7000i 內建自清潔樣品管線和反應器，即使廢污水中含有大量脂肪、油、油脂、污泥和顆粒物或 pH 值波動，依然能夠穩定進行監測提供精確可靠的數據。
B7000 TOC 總有機碳分析儀採用領先之專利自動清潔氧化技術，讓您輕易地監測難處理的複雜水樣，大幅減少傳統線上監測所需的高維護工作量，同時大幅維護成本。
The ideal on-line TOC Analyzer to achieve precise results even for your most challenging applications
Hach BioTector TOC analyzers provide maximum uptime and reliability due to a patented self-cleaning oxidation technology that easily handles difficult samples and significantly reduces maintenance. Unlike traditional TOC analyzers, the Biotector eliminates build up issues from salts, particulates, fats, oils and greases that lead to drift and high maintenance. With reliable, continuous monitoring and real-time process control, plant operators can optimize their processes to lower overall plant operating costs. The most advanced system in its class, Biotector products achieve precise results from the simplest to the most demanding applications.
With patented two-stage advanced oxidation technology, the BioTector handles even the most challenging applications involving fats, oils, greases, salts, sludge, and particulates. Oversized tubing eliminates filtration and sample contamination. There's minimal maintenance. No calibration or operator intervention required between service intervals. Provides a quick pay back with cost savings in chemical dosing, waste reduction and optimized processes.
●專利兩階段先進氧化技術（美國專利：No.6623974 B1 23）處理極具挑戰性之嚴苛應用
●自動清潔技術和超大型管道設計，無需過濾，防止管道堵塞和水样污染現象
●有效監測含大量懸浮物，油脂，石油，潤滑油，污泥和鹽分水樣
●正常運行率高達99.7％
Parameter 分析參數 : TOC, TIC, TC, VOC, after correlation COD, BOD
Measurement Method 分析方法 : Infrared measurement of CO2 after oxidation 氧化後二氧化碳的紅外線測量
Oxidation Method 氧化方法 : Patented Two-Stage Advanced Oxidation Process using Hydroxyl Radicals.
Range 量測範圍 : 0 - 10000 mg/L C
Range Selection 範圍選擇 : Automatic or Manual Range Selection
Repeatability 重複性 : ± 3 % of reading or ± 0.3 mg/L C, whichever is greater, with Automatic Range Selection
Lower Limit of Detection (LOD) 低偵測限 : 0.06 mg/L C
Cycle Time 循環 : From 6.5 minutes, depending on range and application
Data Storage 數據儲存 : Previous 9999 analysis data on screen in the microcontroller memory and storage of data archive for the lifetime of the analyzer in the SD/MMC card.
Previous 99 fault data on screen in the microcontroller memory and storage of fault data archive for the lifetime of the analyzer in the SD/MMC card.
Communication 通訊傳輸 : Modbus RTU, Modbus TCP/IP & Profibus (when the Profibus option is selected, the digital output signals are sent through the Profibus converter with its specific communication protocol)
Except for Zone 1 certification then Modbus RTU, Modbus TCP/IP & Modbus TCP/IP Redundant is available
EExp / Hazardous Location : Certification options are available to European Standards, (ATEX Zone 1, Zone 2), North American Standards (Class I Division 2) and IECEx Zone 1
關鍵字 : 線上 總有機碳 監測儀, 線上 TOC 水質 自動監測, 連續監測 水 TOC 濃度, Online TOC analyzer, process water TOC monitoring
B7000 TOC 總有機碳分析儀採用領先之專利自動清潔氧化技術，讓您輕易地監測難處理的複雜水樣，大幅減少傳統線上監測所需的高維護工作量，同時大幅維護成本。
The ideal on-line TOC Analyzer to achieve precise results even for your most challenging applications
Hach BioTector TOC analyzers provide maximum uptime and reliability due to a patented self-cleaning oxidation technology that easily handles difficult samples and significantly reduces maintenance. Unlike traditional TOC analyzers, the Biotector eliminates build up issues from salts, particulates, fats, oils and greases that lead to drift and high maintenance. With reliable, continuous monitoring and real-time process control, plant operators can optimize their processes to lower overall plant operating costs. The most advanced system in its class, Biotector products achieve precise results from the simplest to the most demanding applications.
With patented two-stage advanced oxidation technology, the BioTector handles even the most challenging applications involving fats, oils, greases, salts, sludge, and particulates. Oversized tubing eliminates filtration and sample contamination. There's minimal maintenance. No calibration or operator intervention required between service intervals. Provides a quick pay back with cost savings in chemical dosing, waste reduction and optimized processes.
●專利兩階段先進氧化技術（美國專利：No.6623974 B1 23）處理極具挑戰性之嚴苛應用
●自動清潔技術和超大型管道設計，無需過濾，防止管道堵塞和水样污染現象
●有效監測含大量懸浮物，油脂，石油，潤滑油，污泥和鹽分水樣
●正常運行率高達99.7％
Parameter 分析參數 : TOC, TIC, TC, VOC, after correlation COD, BOD
Measurement Method 分析方法 : Infrared measurement of CO2 after oxidation 氧化後二氧化碳的紅外線測量
Oxidation Method 氧化方法 : Patented Two-Stage Advanced Oxidation Process using Hydroxyl Radicals.
Range 量測範圍 : 0 - 10000 mg/L C
Range Selection 範圍選擇 : Automatic or Manual Range Selection
Repeatability 重複性 : ± 3 % of reading or ± 0.3 mg/L C, whichever is greater, with Automatic Range Selection
Lower Limit of Detection (LOD) 低偵測限 : 0.06 mg/L C
Cycle Time 循環 : From 6.5 minutes, depending on range and application
Data Storage 數據儲存 : Previous 9999 analysis data on screen in the microcontroller memory and storage of data archive for the lifetime of the analyzer in the SD/MMC card.
Previous 99 fault data on screen in the microcontroller memory and storage of fault data archive for the lifetime of the analyzer in the SD/MMC card.
Communication 通訊傳輸 : Modbus RTU, Modbus TCP/IP & Profibus (when the Profibus option is selected, the digital output signals are sent through the Profibus converter with its specific communication protocol)
Except for Zone 1 certification then Modbus RTU, Modbus TCP/IP & Modbus TCP/IP Redundant is available
EExp / Hazardous Location : Certification options are available to European Standards, (ATEX Zone 1, Zone 2), North American Standards (Class I Division 2) and IECEx Zone 1
關鍵字 : 線上 總有機碳 監測儀, 線上 TOC 水質 自動監測, 連續監測 水 TOC 濃度, Online TOC analyzer, process water TOC monitoring
Worry-free TOC with smart design
The B7000i comes with a built in self-cleaning sample line and reactor. This enables the B7000i to deliver trustworthy results even if your water contains high levels of fats, oils, greases, sludge and particulates or has pH swings.
Easy handling
All B7000i come with unique oversized tubing which eliminated the need for filtration and you can be sure to have a fully representative sample. The special tubing also prevents clogging as well as sample contamination.
Superior reliability
Using BioTector’s internationally proven and innovative Two Stage Advanced Oxidation technology the B7000i delivers maximum reliability, accuracy and availability with a MCert certified uptime of 99.86%. In addition no calibration or maintenance is required between 6-month service intervals.
Flexible field of application
Depending on the type of application, the instrument can operate across a very wide measuring range. The B7000i analyzer also has multistreaming capabilities with up to 6 process streams possible. Additionally, it can be adapted for indoor or outdoor use.
Low cost of ownership
Installing a B7000i provides cost savings through optimizing processes by decreasing chemical dosing, waste reduction, reducing samples processes and lowering overall plant operation costs.
