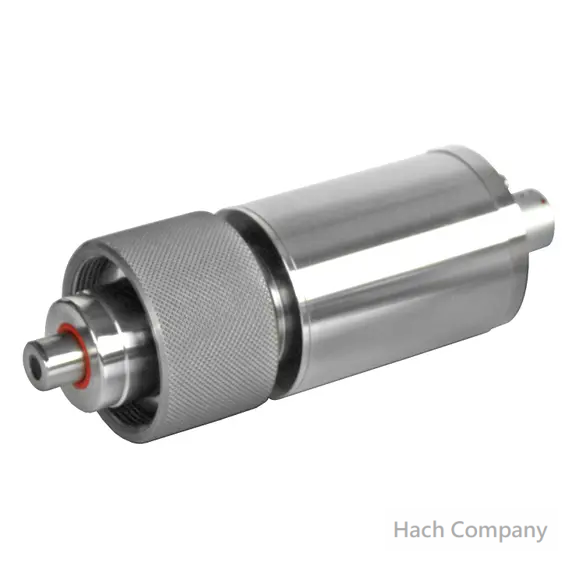

純水溶氧感測器(光學法) Orbisphere K1100 Luminescent Dissolved oxygen sensor, 0-2000 ppb, 28 mm Orbisphere fitting
產品編號：K1100-S00
The original maintenance-free optical oxygen sensor for power plants. 免維護的電廠純水溶氧監測
Applications : Ultrapure Water 超純水, Boiler Water 鍋爐水, Steam Cycle 蒸汽循環系統

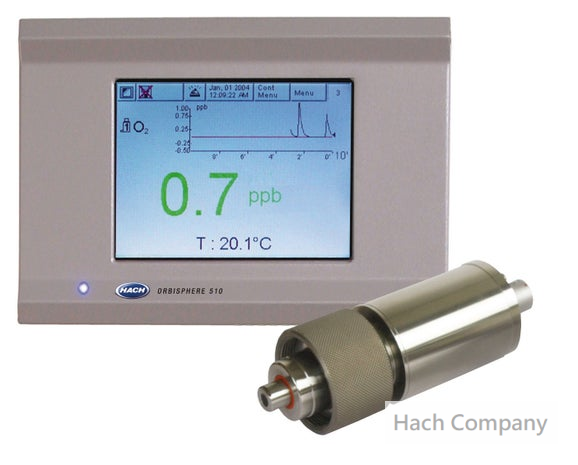

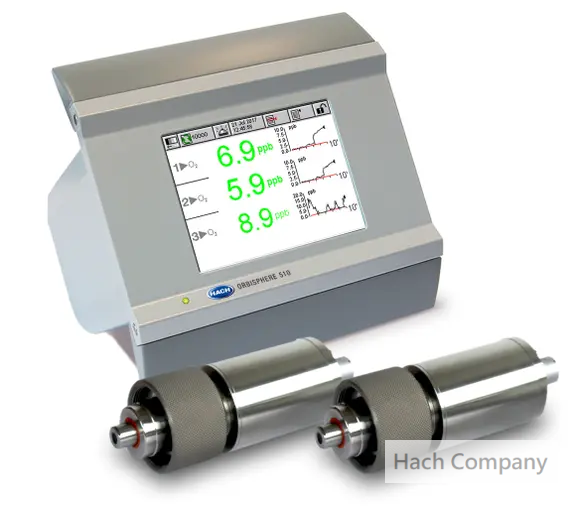

The Orbisphere K1100 is a high accuracy Luminescent Dissolved Oxygen Sensor optimized for power industry application. Since 1978, Hach Orbisphere LDO analyzers have set the industry standard for oxygen measurement by delivering confidence to every water chemistry manager. Together with the Orbisphere 410 single channel controller and the Orbisphere 510 multichannel controller, offers a new way of monitoring oxygen in power plants.
高精準度光學法純水溶氧感測器。自 1978 年以來，Hach Orbisphere 光學溶氧分析儀的優異性能為水質化學管理人員帶來安心保障，樹立溶氧測量的標準。搭配 Orbisphere 410 單通道控制器和 Orbisphere 510 多通道控制器進行純水氧氣量監控。
The absence of membrane and electrolyte means that the sensor accuracy is unaffected by process changes such as changes in flow. The K1100 dissolved oxygen analyzer maintains this tradition and offers significant operating and cost benefits.
由於無需膜和電解質，此感測器的精準度不受流量變化等過程變化的影響，顯著提升運作效率和成本效益。
Parameter 分析參數 : Oxygen
Application 應用 : In-line 線上
Certifications 認證 : 2004/108/EC - EN 61326-1
Range 量測範圍 : 0 - 2000 ppb dissolved O2 (DO)
Accuracy : ± 0.8 ppb or 2 % whichever is greater
Lower Limit of Detection (LOD) : 0.6 ppb
Repeatability : ± 0.4 ppb or 1 % whichever is greater
Reproducibility : ± 0.8 ppb or 2 % whichever is greater
Response Time : (90%) <10 s (gas phase); <30 s (liquid phase)
Calibration 校正 : Single point zero calibration with standard 99.999% nitrogen (quality 50) or equivalent oxygen free gas
Sample Flow Rate : 50 - 300 mL/min
Sample Pressure : 1 - 20 bar absolute (14.5 - 290 psia)
Sample Temperature : -5 - 50°C (23 - 122°F)
Temperature Range :
Accurate from -5 - 50 °C (23 - 122 °F)
Resistant - temperature from -5 - 100 °C (23 - 212 °F)
Communication Capabilities 通訊傳輸 : 3 x 0/4-20 mA; RS485; Ethernet
Analog Outputs 輸出 : 3 Smart 0/4 to 20 mA (500 Ohms) programmable as linear or tri-linear, configurable to send diagnostics or alarm information.
What's included 內容物 : K1100 Sensor only 純水溶氧感測器
Controller, sensor cable, flow chamber or process connection must be ordered separately 控制器、電纜、flow chamber 或連接件需另外訂購
*使用 Orbisphere 410 單通道控制器 或 Orbisphere 510 多通道控制器進行監控
關鍵字 : 純水 溶氧量 分析, pure water oxygen analyzer, 純水 溶氧分析儀, 純水 溶氧 監測儀
Applications : Ultrapure Water 超純水, Boiler Water 鍋爐水, Steam Cycle 蒸汽循環系統
The Orbisphere K1100 is a high accuracy Luminescent Dissolved Oxygen Sensor optimized for power industry application. Since 1978, Hach Orbisphere LDO analyzers have set the industry standard for oxygen measurement by delivering confidence to every water chemistry manager. Together with the Orbisphere 410 single channel controller and the Orbisphere 510 multichannel controller, offers a new way of monitoring oxygen in power plants.
高精準度光學法純水溶氧感測器。自 1978 年以來，Hach Orbisphere 光學溶氧分析儀的優異性能為水質化學管理人員帶來安心保障，樹立溶氧測量的標準。搭配 Orbisphere 410 單通道控制器和 Orbisphere 510 多通道控制器進行純水氧氣量監控。
The absence of membrane and electrolyte means that the sensor accuracy is unaffected by process changes such as changes in flow. The K1100 dissolved oxygen analyzer maintains this tradition and offers significant operating and cost benefits.
由於無需膜和電解質，此感測器的精準度不受流量變化等過程變化的影響，顯著提升運作效率和成本效益。
Parameter 分析參數 : Oxygen
Application 應用 : In-line 線上
Certifications 認證 : 2004/108/EC - EN 61326-1
Range 量測範圍 : 0 - 2000 ppb dissolved O2 (DO)
Accuracy : ± 0.8 ppb or 2 % whichever is greater
Lower Limit of Detection (LOD) : 0.6 ppb
Repeatability : ± 0.4 ppb or 1 % whichever is greater
Reproducibility : ± 0.8 ppb or 2 % whichever is greater
Response Time : (90%) <10 s (gas phase); <30 s (liquid phase)
Calibration 校正 : Single point zero calibration with standard 99.999% nitrogen (quality 50) or equivalent oxygen free gas
Sample Flow Rate : 50 - 300 mL/min
Sample Pressure : 1 - 20 bar absolute (14.5 - 290 psia)
Sample Temperature : -5 - 50°C (23 - 122°F)
Temperature Range :
Accurate from -5 - 50 °C (23 - 122 °F)
Resistant - temperature from -5 - 100 °C (23 - 212 °F)
Communication Capabilities 通訊傳輸 : 3 x 0/4-20 mA; RS485; Ethernet
Analog Outputs 輸出 : 3 Smart 0/4 to 20 mA (500 Ohms) programmable as linear or tri-linear, configurable to send diagnostics or alarm information.
What's included 內容物 : K1100 Sensor only 純水溶氧感測器
Controller, sensor cable, flow chamber or process connection must be ordered separately 控制器、電纜、flow chamber 或連接件需另外訂購
*使用 Orbisphere 410 單通道控制器 或 Orbisphere 510 多通道控制器進行監控
關鍵字 : 純水 溶氧量 分析, pure water oxygen analyzer, 純水 溶氧分析儀, 純水 溶氧 監測儀
One calibration per year 每年一次校正
One zero point calibration per year is all that is needed with the K1100 sensor. Designed for minimal drift, luminescent technology makes the K1100 sensor the most stable sensor with the longest calibration interval in the industry.
One zero point calibration per year is all that is needed with the K1100 sensor. Designed for minimal drift, luminescent technology makes the K1100 sensor the most stable sensor with the longest calibration interval in the industry.
K1100 感測器每年只需進行一次零點校正。 K1100 感測器採用光學技術，漂移極小，是穩定度最高、校正週期最長的感測器。
No membranes = two minutes of maintenance 無需膜片 = 兩分鐘維護
With no membranes to replace and no electrolyte solution to replenish, the K1100 requires only two minutes of maintenance per year. Corrosive or hazardous chemicals are not required, making the annual task faster, easier and safer without reducing measurement precision. 無需更換膜，也無需補充電解液，每年只需兩分鐘維護。無需使用腐蝕性或危險化學品，讓年度維護工作更快、更輕鬆、更安全，且不會降低測量精準度。
With no membranes to replace and no electrolyte solution to replenish, the K1100 requires only two minutes of maintenance per year. Corrosive or hazardous chemicals are not required, making the annual task faster, easier and safer without reducing measurement precision. 無需更換膜，也無需補充電解液，每年只需兩分鐘維護。無需使用腐蝕性或危險化學品，讓年度維護工作更快、更輕鬆、更安全，且不會降低測量精準度。
Low cost retrofit 經濟效益
The complete system consists of a controller, a flow chamber, and the K1100 Luminescent Dissolved Oxygen sensor. The sensor is compatible with Hach Orbisphere 28 mm flow chambers, eliminating the need for engineering changes. Installation is fast and easy and does not require special preparation. 整套系統以控制器、flow chambers 以及 K1100 光學溶氧感測器運作。溶氧感測器與 Hach Orbisphere 28 mm flow chambers 相容，無需進行任何工程改造。安裝快速簡便，無需特殊準備。
The complete system consists of a controller, a flow chamber, and the K1100 Luminescent Dissolved Oxygen sensor. The sensor is compatible with Hach Orbisphere 28 mm flow chambers, eliminating the need for engineering changes. Installation is fast and easy and does not require special preparation. 整套系統以控制器、flow chambers 以及 K1100 光學溶氧感測器運作。溶氧感測器與 Hach Orbisphere 28 mm flow chambers 相容，無需進行任何工程改造。安裝快速簡便，無需特殊準備。
A new level of confidence 高水準的可靠度
The K1100 optical sensor is the first to use luminescent measurement technology to measure both ppb and ppm oxygen levels in power plants. Since 1978, Hach Orbisphere sensors have set the industry standard for oxygen measurement by delivering confidence to every water chemistry manager. The K1100 maintains this tradition and offers significant operating and cost benefits. K1100 光學感測器是首款採用光學技術測量電廠中 ppb 和 ppm 等級氧氣濃度的水質分析感測器。卓越的性能協助每位水質化學管理人員獲得可靠的測量結果，大幅提升運作效率和成本效益。
The K1100 optical sensor is the first to use luminescent measurement technology to measure both ppb and ppm oxygen levels in power plants. Since 1978, Hach Orbisphere sensors have set the industry standard for oxygen measurement by delivering confidence to every water chemistry manager. The K1100 maintains this tradition and offers significant operating and cost benefits. K1100 光學感測器是首款採用光學技術測量電廠中 ppb 和 ppm 等級氧氣濃度的水質分析感測器。卓越的性能協助每位水質化學管理人員獲得可靠的測量結果，大幅提升運作效率和成本效益。
