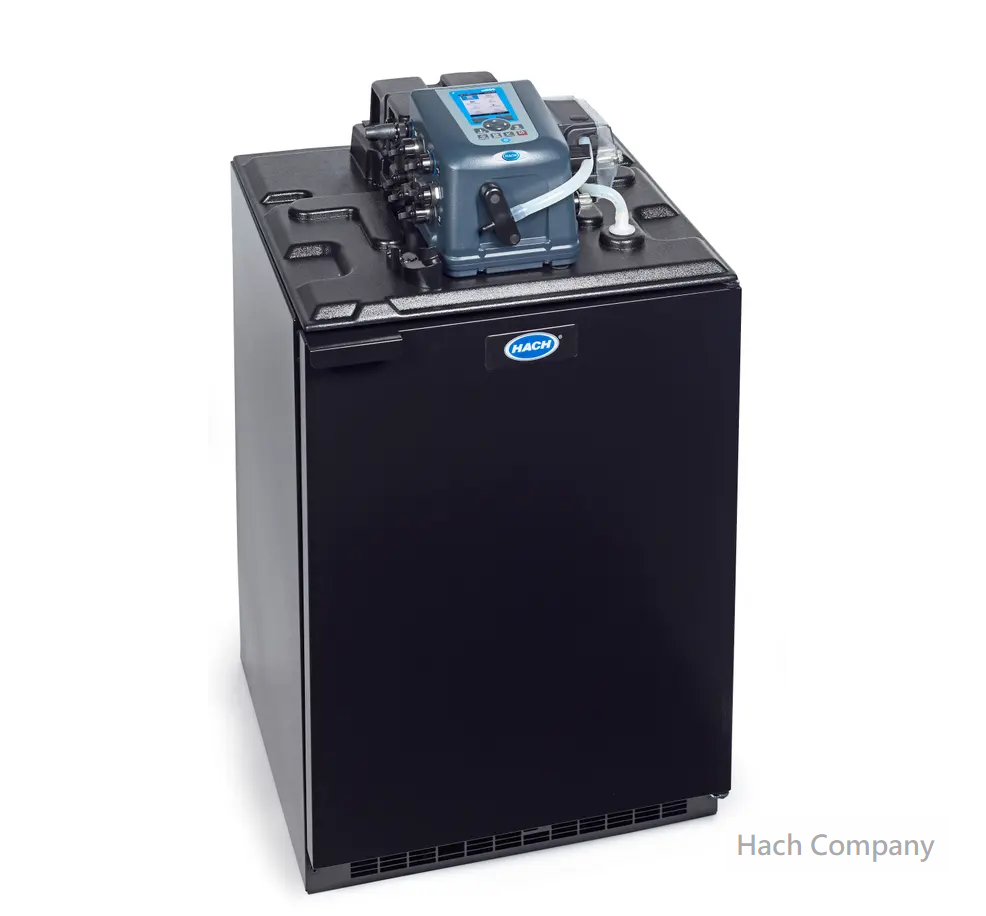

冷藏式自動採水樣器 AS950 Refrigerated Sampler Bundle, 115V, with 1 - 2.5 Gallon Bottle
產品編號：ASR.CXXX1X21XX
Sampling has never been this easy.
將採集水樣, 紀錄水樣到保存水樣的流程自動化, 程式化, 數據化。
專業自動化水質取樣設計，節省人力時間。
The AS950 Refrigerated Sampler is an easy and reliable solution for sample collection. With its large and intuitive display, USB data transfer capabilities, and simple one-screen programming, you can save time and streamline the entire sampling process.
AS950 冷藏式自動採水樣器為一款簡單可靠的水樣採集方案。大尺寸彩色顯示螢幕直覺式操作、USB 資料傳輸功能和簡單的單一螢幕程式編碼，節省時間並簡化整個採樣流程。
Additionally, the AS950 Refrigerated Sampler accurately preserves your samples with an air-sensing thermostat designed to meet international and USEPA guidelines.
此外，AS950 冷藏式自動採水樣器配備符合國際和美國環保署 (USEPA) 標準的空氣感應恆溫器，可正確保存您的水樣。
Equipped with an error message for easy troubleshooting and corrosion-resistant materials, the AS950 Refrigerated Sampler is the ideal choice for consistent and accurate sampling. Its large, color display, and USB upload and download capabilities make sampling more convenient and efficient.
AS950 冷藏式自動採水樣器採用耐腐蝕材料，並配備故障訊息提示功能，方便故障排除，是達到穩定、準確採樣的理想選擇。讓採集水樣更加方便快捷有效率。
Even in challenging environments, the AS950 Refrigerated Sampler ensures sample preservation and eliminates uncertainty with an available error warning and status screen.
即使在嚴苛的應用環境下，AS950 冷藏式自動採水樣器也能確保水樣保存，並透過故障警告和狀態畫面消除不確定性。
Investing in the AS950 Refrigerated Sampler means you'll have an easier and more reliable way to collect samples. Start sampling with precision and confidence today by ordering yours.
Certifications 認證 : CE, UL
Display 顯示螢幕 : 1/4 VGA, Color; self-prompting/menu-driven program
Data Logging 數據採集 :
SAMPLE HISTORY 水樣歷史紀錄 - Stores up to 4000 entries for sample time stamp, bottle number and sample status (success, bottle full, rinse error, user abort, distributor error, pump fault, purge fail, sample timeout, power fail and low main battery).
MEASUREMENTS 量測 - Stores up to 325,000 entries for selected measurement channels in accordance with the selected logging interval.
EVENTS 事件 - Ability to store up to 2000 entries in Sample History logging. Records Power On, Power Fail, Firmware Updated, Pump Fault, Distributor Arm Error, Low Memory Battery, Low Main Battery, User On, User Off, Program Started, Program Resumed, Program Halted, Program Completed, Grab Sample, Tube Change Required, Sensor Communication Errors, Cooling Failed, Heating Failed, Thermal Error Corrected.
Intake 進樣 :
Strainers 過濾器 : Choice of PTFE and 316 stainless steel construction, or all 316 stainless steel in standard size, high velocity, and low profile for shallow depth applications
Purge 吹掃 : Air purged automatically before and after each sample;
duration automatically compensates for varying intake line lengths
Rinse 沖洗 : Intake line automatically rinsed with source liquid prior to each sample, from 1 to 3 rinses
Retries or Fault 重試或故障 : Sample collection cycle automatically repeated from 1 to 3 times if sample not obtained on initial attempt
Programs 程式 :
Dual Programs: Up to 2 sample programs can be run sequentially, in parallel, or according to day of week scheduling; enabling a single sampler to function like multiple samplers 雙程序：最多可設定運行 2 個採樣程序，可按順序、並行或按星期幾設定安排運行；讓單一採水樣器能夠像擁有多個採水樣器一樣運作。
Sampling Mode 採樣模式 :
Pacing 取樣速度配置模式 : Time Weighted, Flow Weighted, Time Table, Flow Table, Event 時間加權、流量加權、時間表、流量表、事件
Distribution 分布模式 : Single bottle composite, multi-bottle composite, multi-bottle discrete, bottles per sample, samples per bottle or a combination of bottles per sample and samples per bottle 單瓶混合、多瓶混合、多瓶離散、每瓶取樣瓶數、每瓶取樣數或每瓶取樣瓶數與每瓶取樣數的組合
Sample Trigger 採樣觸發 : When equipped with flow sensor or pH/temperature sensor or peripheral monitoring options, sampling can be triggered upon an upset condition when field selectable limits are exceeded
Sample Volume 採樣容量 : Programmable in 10 mL increments from 10 - 10,000 mL
Sample Volume Accuracy : Typical: ±5% of 200 mL sample volume with: 4.6 m (15 ft) vertical lift, 4.9 m (16 ft) of 3/8- in. vinyl intake tube, single bottle, full bottle shut-off at room temperature and 1524 m (5000 ft) elevation
Sample Volume Repeatability : Typical: ±5% of 200 mL sample volume with: 4.6 m (15 ft) vertical lift, 4.9 m (16 ft) of 3/8- in vinyl intake tube, single bottle, full bottle shut-off at room temperature and 1524 m (5000 ft) elevation
Operating Mode 操作模式 : Continuous or non-continuous 連續或不連續
Pump flow rate 幫浦流速 : 4.8 L/min (1.25 gpm) at 1 m (3 ft) vertical lift with 3/8-in intake tube typical
Tubing 管路 :
Pump tubing: 9.5 mm ID x 15.9 mm OD Silicone
Intake tubing: 1.0 - 4.75 m minimum length, 1/4" or 3/8" ID Vinyl or 3/8" ID PTFE-lined Polyethylene with protective outer cover (black or clear)
Memory 記憶容量 : Sample history: 4000 records;
Data log: 325,000 records;
Event log: 2000 records
Temperature 溫度 :
Operating: 0 - 50 °C
Storage: -40 - 60 °C
Housing Material 材質 : PC/ABS blend, NEMA 4X, 6, IP68, corrosion and ice resistant (Controller)
Communication Capabilities 傳輸 : USB and optional RS485 (Modbus)
關鍵字 : water auto sampler, water sampler, 自動化 採水樣, 採水樣 自動化
將採集水樣, 紀錄水樣到保存水樣的流程自動化, 程式化, 數據化。
專業自動化水質取樣設計，節省人力時間。
The AS950 Refrigerated Sampler is an easy and reliable solution for sample collection. With its large and intuitive display, USB data transfer capabilities, and simple one-screen programming, you can save time and streamline the entire sampling process.
AS950 冷藏式自動採水樣器為一款簡單可靠的水樣採集方案。大尺寸彩色顯示螢幕直覺式操作、USB 資料傳輸功能和簡單的單一螢幕程式編碼，節省時間並簡化整個採樣流程。
Additionally, the AS950 Refrigerated Sampler accurately preserves your samples with an air-sensing thermostat designed to meet international and USEPA guidelines.
此外，AS950 冷藏式自動採水樣器配備符合國際和美國環保署 (USEPA) 標準的空氣感應恆溫器，可正確保存您的水樣。
Equipped with an error message for easy troubleshooting and corrosion-resistant materials, the AS950 Refrigerated Sampler is the ideal choice for consistent and accurate sampling. Its large, color display, and USB upload and download capabilities make sampling more convenient and efficient.
AS950 冷藏式自動採水樣器採用耐腐蝕材料，並配備故障訊息提示功能，方便故障排除，是達到穩定、準確採樣的理想選擇。讓採集水樣更加方便快捷有效率。
Even in challenging environments, the AS950 Refrigerated Sampler ensures sample preservation and eliminates uncertainty with an available error warning and status screen.
即使在嚴苛的應用環境下，AS950 冷藏式自動採水樣器也能確保水樣保存，並透過故障警告和狀態畫面消除不確定性。
Investing in the AS950 Refrigerated Sampler means you'll have an easier and more reliable way to collect samples. Start sampling with precision and confidence today by ordering yours.
Certifications 認證 : CE, UL
Display 顯示螢幕 : 1/4 VGA, Color; self-prompting/menu-driven program
Data Logging 數據採集 :
SAMPLE HISTORY 水樣歷史紀錄 - Stores up to 4000 entries for sample time stamp, bottle number and sample status (success, bottle full, rinse error, user abort, distributor error, pump fault, purge fail, sample timeout, power fail and low main battery).
MEASUREMENTS 量測 - Stores up to 325,000 entries for selected measurement channels in accordance with the selected logging interval.
EVENTS 事件 - Ability to store up to 2000 entries in Sample History logging. Records Power On, Power Fail, Firmware Updated, Pump Fault, Distributor Arm Error, Low Memory Battery, Low Main Battery, User On, User Off, Program Started, Program Resumed, Program Halted, Program Completed, Grab Sample, Tube Change Required, Sensor Communication Errors, Cooling Failed, Heating Failed, Thermal Error Corrected.
Intake 進樣 :
Strainers 過濾器 : Choice of PTFE and 316 stainless steel construction, or all 316 stainless steel in standard size, high velocity, and low profile for shallow depth applications
Purge 吹掃 : Air purged automatically before and after each sample;
duration automatically compensates for varying intake line lengths
Rinse 沖洗 : Intake line automatically rinsed with source liquid prior to each sample, from 1 to 3 rinses
Retries or Fault 重試或故障 : Sample collection cycle automatically repeated from 1 to 3 times if sample not obtained on initial attempt
Programs 程式 :
Dual Programs: Up to 2 sample programs can be run sequentially, in parallel, or according to day of week scheduling; enabling a single sampler to function like multiple samplers 雙程序：最多可設定運行 2 個採樣程序，可按順序、並行或按星期幾設定安排運行；讓單一採水樣器能夠像擁有多個採水樣器一樣運作。
Sampling Mode 採樣模式 :
Pacing 取樣速度配置模式 : Time Weighted, Flow Weighted, Time Table, Flow Table, Event 時間加權、流量加權、時間表、流量表、事件
Distribution 分布模式 : Single bottle composite, multi-bottle composite, multi-bottle discrete, bottles per sample, samples per bottle or a combination of bottles per sample and samples per bottle 單瓶混合、多瓶混合、多瓶離散、每瓶取樣瓶數、每瓶取樣數或每瓶取樣瓶數與每瓶取樣數的組合
Sample Trigger 採樣觸發 : When equipped with flow sensor or pH/temperature sensor or peripheral monitoring options, sampling can be triggered upon an upset condition when field selectable limits are exceeded
Sample Volume 採樣容量 : Programmable in 10 mL increments from 10 - 10,000 mL
Sample Volume Accuracy : Typical: ±5% of 200 mL sample volume with: 4.6 m (15 ft) vertical lift, 4.9 m (16 ft) of 3/8- in. vinyl intake tube, single bottle, full bottle shut-off at room temperature and 1524 m (5000 ft) elevation
Sample Volume Repeatability : Typical: ±5% of 200 mL sample volume with: 4.6 m (15 ft) vertical lift, 4.9 m (16 ft) of 3/8- in vinyl intake tube, single bottle, full bottle shut-off at room temperature and 1524 m (5000 ft) elevation
Operating Mode 操作模式 : Continuous or non-continuous 連續或不連續
Pump flow rate 幫浦流速 : 4.8 L/min (1.25 gpm) at 1 m (3 ft) vertical lift with 3/8-in intake tube typical
Tubing 管路 :
Pump tubing: 9.5 mm ID x 15.9 mm OD Silicone
Intake tubing: 1.0 - 4.75 m minimum length, 1/4" or 3/8" ID Vinyl or 3/8" ID PTFE-lined Polyethylene with protective outer cover (black or clear)
Memory 記憶容量 : Sample history: 4000 records;
Data log: 325,000 records;
Event log: 2000 records
Temperature 溫度 :
Operating: 0 - 50 °C
Storage: -40 - 60 °C
Housing Material 材質 : PC/ABS blend, NEMA 4X, 6, IP68, corrosion and ice resistant (Controller)
Communication Capabilities 傳輸 : USB and optional RS485 (Modbus)
關鍵字 : water auto sampler, water sampler, 自動化 採水樣, 採水樣 自動化

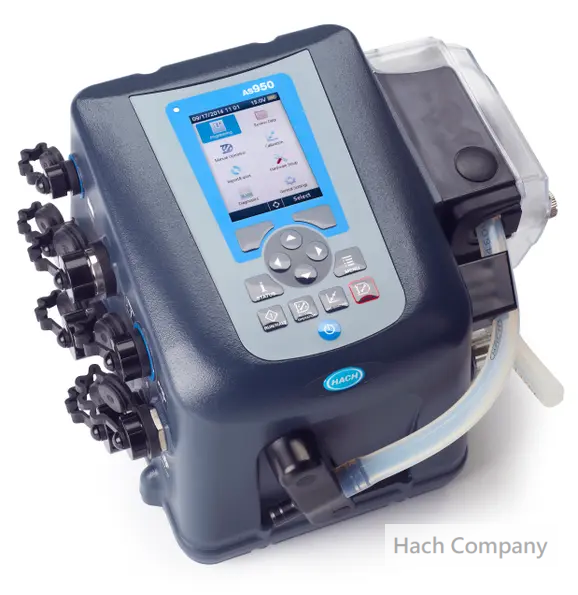

Easiest and Most Intuitive Operation
The large full color display and intuitive programming give you access to all your programmable criteria on a single screen - eliminating scrolling through menus and supporting error-free operation.
The large full color display and intuitive programming give you access to all your programmable criteria on a single screen - eliminating scrolling through menus and supporting error-free operation.
Most Convenient Data Transfer and Programming Available
The AS950 is the only sampler that utilizes a USB drive to upload and download data and copy programs from one sampler to another.
The AS950 is the only sampler that utilizes a USB drive to upload and download data and copy programs from one sampler to another.
Confidence in Your Sampling Process
The program status screen instantly communicates alarms, missed samples and program progress for quick and easy troubleshooting.
The program status screen instantly communicates alarms, missed samples and program progress for quick and easy troubleshooting.
Resists Corrosion
The refrigerated sampler base is designed to endure humid and highly corrosive environments, minimizing damage caused by corrosive gases, rodents, and standing water to guarantee environmental integrity.
The refrigerated sampler base is designed to endure humid and highly corrosive environments, minimizing damage caused by corrosive gases, rodents, and standing water to guarantee environmental integrity.
Accurate and Consistent Sample Preservations
The custom-designed air-sensing thermostat controls temperature in accordance with USEPA and international guidelines, preserving samples regardless of outside temperatures and conditions.
The custom-designed air-sensing thermostat controls temperature in accordance with USEPA and international guidelines, preserving samples regardless of outside temperatures and conditions.
Easy maintenance at low cost
Spring-mounted rollers provide long tubing life keepign maintenance costs low. The desiccant and pump tubing can easily be accessed; the replacement is possible without any tools. The rugged see-through pump cover is made for a quick visual inspection.
Spring-mounted rollers provide long tubing life keepign maintenance costs low. The desiccant and pump tubing can easily be accessed; the replacement is possible without any tools. The rugged see-through pump cover is made for a quick visual inspection.
