Reliable Fluoride Measurement in Complex Water Matrices 精確穩定可靠監測複雜水基質中的氟化物濃度

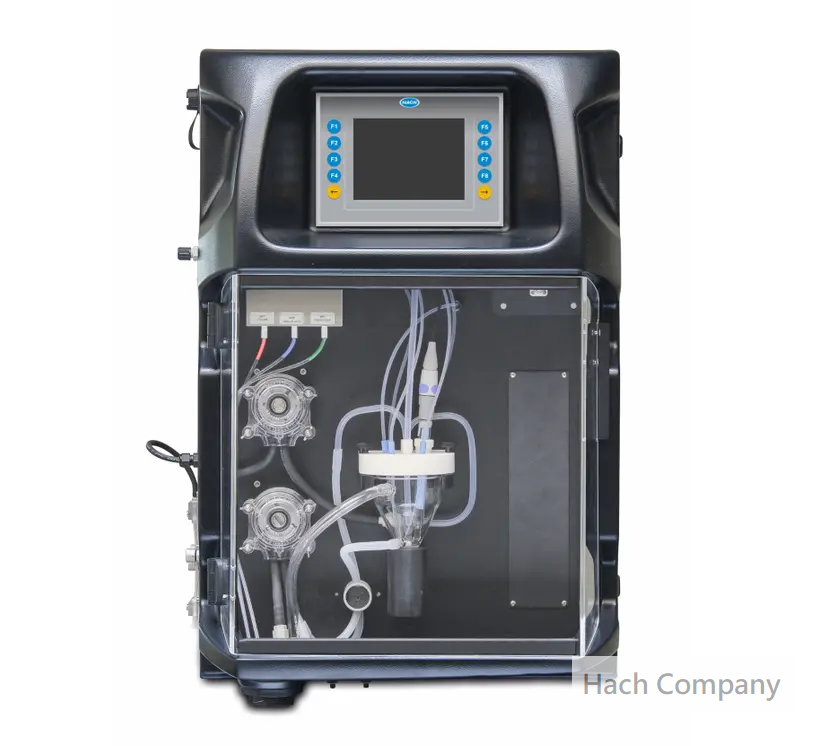

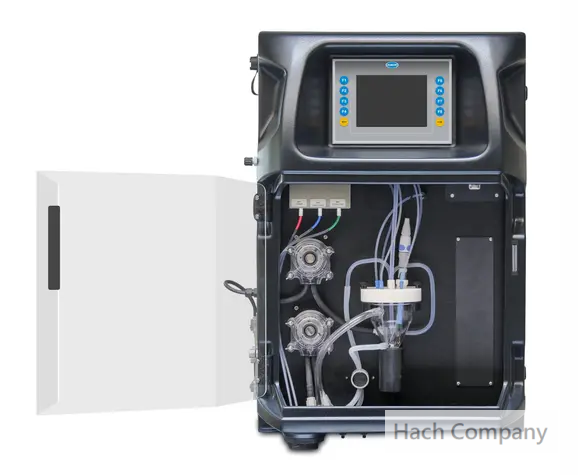

Fluoride measurement in wastewater and industrial process water can be distorted by matrix effects from ions such as calcium and aluminum. The EZ3508sc uses a standard addition method to compensate for these interferences, delivering accurate, repeatable fluoride results while minimizing reagent consumption.
廢污水和工業製程用水中的氟化物測量會受到鈣、鋁等離子基質效應的影響。 EZ3508sc 以標準添加法補償這些干擾，大幅減少試劑消耗，同時提供準確、可重複的氟化物監測數據。

Designed for reliable operation, gel-filled ISE electrodes eliminate electrolyte refilling and automated cleaning and calibration reduce hands-on maintenance. Digital communication protocols integrate the analyzer into your network for immediate access to results, diagnostics and status.
分析儀設計穩定可靠，採用凝膠填充的離子選擇性電極 (ISE) 無需補充電解液，自動清潔和校正功能減少人工維護工作量。數位通訊協定可將分析儀整合到與您的網路系統，以便即時存取監測數據、儀器診斷資訊和狀態。

Benefits:
- Standard addition compensates for matrix effects in complex samples 標準添加法可補償複雜水樣中的基質效應
- Accurate, repeatable fluoride results with low reagent consumption 試劑消耗量低，即可獲得準確、可重複的氟濃度數據
- Gel-filled ISE electrodes eliminate electrolyte refilling 凝膠填充的離子選擇性電極無需補充電解液
- Automated cleaning and calibration reduce manual service 自動清洗和校正減少人工維護
- Digital connectivity for fast access to results, diagnostics and status 數位化連線可快速存取結果、儀器診斷資訊和狀態

Certifications 認證 : CE, ETL certified to UL and CSA safety standards, UKCA

Measurement method 量測方法 : Discontinuous measurement by combined Ion-Selective Electrode with standard addition

Range 量測範圍 :
No dilution
0.2 - 10 mg/L F-
0.5 - 25 mg/L F-
1 - 50 mg/L F-
2 - 100 mg/L F-

Internal dilution
10 - 500 mg/L F-
20 - 1000 mg/L F

Precision : Better than 2% full scale range for standard test solutions

Lower Limit of Detection (LOD) :
No dilution
0.2 - 10 mg/L F-: 0.2 mg/L
0.5 - 25 mg/L F-: 0.5 mg/L
1 - 50 mg/L F-: 1 mg/L
2 - 100 mg/L F-: 2 mg/L

Internal dilution
10 - 500 mg/L F-: 10 mg/L
20 - 1000 mg/L F-: 20 mg/L

Sample Flow Rate : 100 - 300 mL/min

Sample Pressure : By external overflow vessel (open to atmospheric pressure)

Sample Quality : Maximum particle size 100 µm, < 0.1 g/L; Turbidity < 50 NTU

Cycle Time 循環時間 :
No dilution
Default: 5 minutes
Continuous: 5 minutes

Internal dilution
Default: 10 minutes
Continuous: 8 minutes

Calibration 校正 : Automatic; 2-point; offset or slope; Frequency freely programmable: 6 hours, 12 hours, daily, weekly. Note: manufacturer recommends that a calibration is done when the reagents are replaced

Automatic cleaning 自動清潔 : Yes; Frequency freely programmable: 6 hours, 12 hours, daily, weekly

Instrument Air : Dry and oil free according to ISA-S7.0.01-1996 quality standard for instrument air. Used to flush the instrument in corrosive environment. Min. 0.2 bar - Max. 0.5 bar

Interferences 干擾 : Metal ions like aluminum [(Al)³+] > 72 mg/L, calcium [(Ca)²+] > 108 mg/L and iron [(Fe)²+/(Fe)³+] > 150 mg/L. Fats, oil, proteins, surfactants and tar.

Number of sample streams 水樣流 : Standard: 1
Optional accessory for 2, 4, or 8 sample streams

Analog Outputs 類比輸出 : Active 0 - 20 mA (or 4 - 20 mA) max. 500 Ohm load, standard 4, optional: 8

Digital Outputs 數位輸出 : Relays: 5 contacts, not user configurable: Malfunction, maintenance, analysis ready, sample ready, sample ready (EZ9150)

Ethernet Connections: Optional: Claros Ethernet connection and Modbus TCP/IP Ethernet connector; LAN version; 10/100 Mbps or Profinet or Ethernet IP

RS485 communication: Profibus DP or Modbus RTU

Protection Class : IP44
