水中懸浮固體與濁度感測器加控制器 Solitax inline sc Turbidity & Suspended Solids Probe, 0.001-4000 NTU, 0.001 mg/L-50 g/L, SC4500 Controller, Stainless Steel
產品編號：LXV525.97KTO026
Hach Solitax sc sensors provide accurate, colour-independent measurement of turbidity and suspended solids in drinking water, wastewater and industrial process applications. A self-cleaning device prevents biological growth and interference of gas bubbles. This system’s reliable performance and full data communication capability help improve process control and reduce treatment costs associated with polymer use, digester volume, and sludge handling.
Hach Solitax sc 感測器精確測量自來水、廢污水和工業製程應用的濁度和懸浮固體。自清潔裝置可防止生物生長和氣泡干擾。效能可靠和全面的數據通訊能力協助改善過程控制並降低與聚合物使用、消化器容量和污泥處理相關的處理成本。
Solitax Inline sc Turbidity and Suspended Solids Insertion Probe with Wiper, Stainless Steel
High-precision in pipe turbidity and suspended solids measurements in low/medium concentrated sludges according to DIN EN ISO 7027 and DIN 38414
Solitax Inline sc 濁度和懸浮固體感測器，附刮水器，不鏽鋼材質。符合 DIN EN ISO 7027 和 DIN 38414 標準，精確即時監測低/中濃度廢污水汙泥中的濁度和懸浮固體
The Solitax inline sc turbidity and suspended solids insertion probe provides high-precision results in clear to strongly turbid liquids as well as in low and medium concentrated sludges. Since this probe is for in pipe use only an appropriate mounting assembly for insertion application is required. Turbidity measurement performance is certified to MCERTS regulation and the probe operates with a 90° measuring method according to DIN EN ISO 7027. The suspended solids measurement by a colour-independent method with an infrared duo scattered light photometer is in accordance with DIN 38414. A proven automatic wiper cleaning system allows sustained performance quality in drinking water as well as in waste water applications. The Solitax inline sc probe material is stainless steel and measurement data is displayed and processed with the help of a digital Hach SC controller.
精密型 Solitax 濁度和懸浮固體感測探頭精確監測從清澈到高濁度的液體以及低濃度和中等濃度的污泥。由於此感測探頭僅用於管道內，因此只需配備合適的插入式安裝套件即可。濁度測量效能通過 MCERTS 認證，感測探頭採用符合 DIN EN ISO 7027 標準的 90° 測量方法。懸浮物測量採用與顏色無關的紅外線雙散射光光度計，符合 DIN 38414 標準。成熟穩定的自動刮水清潔系統可確保在飲用水和廢水應用維持持續穩定的效能。 感測探頭採用不鏽鋼材質，透過 Hach sc系列數位控制器進行顯示監測數據和控制處理。
Certifications : CE, MCERTS
Measuring Principle 量測原理 : Infrared Duo scattered light technique for color-independent
turbidity measurement Turbidity in accordance with
DIN EN ISO 7027 / TS equivalent DIN 38414
Range 量測範圍 :
TSS content: 0.001 mg/L - 50 g/L
Turbidity: 0.001 - 4000 NTU
Accuracy : Turbidity up to 1000 NTU:
without calibration < 5% of the measured value ±0.01 NTU
with calibration < 1% of the measured value ±0.01 NTU
Repeatability : TSS content: < 3%|Turbidity: < 1%
Response Time T90 : 1 - 300 s adjustable
Calibration Method 校正 : Turbidity: Formazin or Stablcal Standard (at 800 NTU).
Suspended Solids: Sample specific, based on gravimetric TSS analysis with a correction factor procedure.
Pressure Range : Stainless steel insertion sensor: <6 bar or <60 m (87 psi)
IP Rating 防護等級 : IP68
Cable Length : 10 m (33 ft) (optional extension cables available)
Controller Compatibility 相容控制器 : SC4500, SC1000, SC200
關鍵字 : 水中 懸浮固體 分析儀, 水中 懸浮固體 監測儀, 水中 ss 濃度 監測, turbidity and suspended solids analyzer, suspended solids analyzer, 廢污水 懸浮固體 濃度 自動監測, turbidity analyzer, ss analyzer, 水中 懸浮物 監測, 水中懸浮物分析儀, 連續檢測懸浮物, 連續監測水中懸浮物, 水中懸浮物 偵測, SS水質儀器
Hach Solitax sc 感測器精確測量自來水、廢污水和工業製程應用的濁度和懸浮固體。自清潔裝置可防止生物生長和氣泡干擾。效能可靠和全面的數據通訊能力協助改善過程控制並降低與聚合物使用、消化器容量和污泥處理相關的處理成本。
Solitax Inline sc Turbidity and Suspended Solids Insertion Probe with Wiper, Stainless Steel
High-precision in pipe turbidity and suspended solids measurements in low/medium concentrated sludges according to DIN EN ISO 7027 and DIN 38414
Solitax Inline sc 濁度和懸浮固體感測器，附刮水器，不鏽鋼材質。符合 DIN EN ISO 7027 和 DIN 38414 標準，精確即時監測低/中濃度廢污水汙泥中的濁度和懸浮固體
The Solitax inline sc turbidity and suspended solids insertion probe provides high-precision results in clear to strongly turbid liquids as well as in low and medium concentrated sludges. Since this probe is for in pipe use only an appropriate mounting assembly for insertion application is required. Turbidity measurement performance is certified to MCERTS regulation and the probe operates with a 90° measuring method according to DIN EN ISO 7027. The suspended solids measurement by a colour-independent method with an infrared duo scattered light photometer is in accordance with DIN 38414. A proven automatic wiper cleaning system allows sustained performance quality in drinking water as well as in waste water applications. The Solitax inline sc probe material is stainless steel and measurement data is displayed and processed with the help of a digital Hach SC controller.
精密型 Solitax 濁度和懸浮固體感測探頭精確監測從清澈到高濁度的液體以及低濃度和中等濃度的污泥。由於此感測探頭僅用於管道內，因此只需配備合適的插入式安裝套件即可。濁度測量效能通過 MCERTS 認證，感測探頭採用符合 DIN EN ISO 7027 標準的 90° 測量方法。懸浮物測量採用與顏色無關的紅外線雙散射光光度計，符合 DIN 38414 標準。成熟穩定的自動刮水清潔系統可確保在飲用水和廢水應用維持持續穩定的效能。 感測探頭採用不鏽鋼材質，透過 Hach sc系列數位控制器進行顯示監測數據和控制處理。
Certifications : CE, MCERTS
Measuring Principle 量測原理 : Infrared Duo scattered light technique for color-independent
turbidity measurement Turbidity in accordance with
DIN EN ISO 7027 / TS equivalent DIN 38414
Range 量測範圍 :
TSS content: 0.001 mg/L - 50 g/L
Turbidity: 0.001 - 4000 NTU
Accuracy : Turbidity up to 1000 NTU:
without calibration < 5% of the measured value ±0.01 NTU
with calibration < 1% of the measured value ±0.01 NTU
Repeatability : TSS content: < 3%|Turbidity: < 1%
Response Time T90 : 1 - 300 s adjustable
Calibration Method 校正 : Turbidity: Formazin or Stablcal Standard (at 800 NTU).
Suspended Solids: Sample specific, based on gravimetric TSS analysis with a correction factor procedure.
Pressure Range : Stainless steel insertion sensor: <6 bar or <60 m (87 psi)
IP Rating 防護等級 : IP68
Cable Length : 10 m (33 ft) (optional extension cables available)
Controller Compatibility 相容控制器 : SC4500, SC1000, SC200
關鍵字 : 水中 懸浮固體 分析儀, 水中 懸浮固體 監測儀, 水中 ss 濃度 監測, turbidity and suspended solids analyzer, suspended solids analyzer, 廢污水 懸浮固體 濃度 自動監測, turbidity analyzer, ss analyzer, 水中 懸浮物 監測, 水中懸浮物分析儀, 連續檢測懸浮物, 連續監測水中懸浮物, 水中懸浮物 偵測, SS水質儀器
Excellent correlation to laboratory analysis 與實驗室分析數據有優異的相關性
Solitax sc sensors show an exceptional correlation to laboratory analysis. On-line measurement not only saves time on manual analysis, but also provides critical real-time measurements that can be used to operate the plant more efficiently. Solitax sc 感測器與實驗室分析數據表現出優異的相關性。線上監測不僅節省人工分析的時間，還提供關鍵的即時測量，協助廠區水務管理更有效地運作。
Solitax sc sensors show an exceptional correlation to laboratory analysis. On-line measurement not only saves time on manual analysis, but also provides critical real-time measurements that can be used to operate the plant more efficiently. Solitax sc 感測器與實驗室分析數據表現出優異的相關性。線上監測不僅節省人工分析的時間，還提供關鍵的即時測量，協助廠區水務管理更有效地運作。

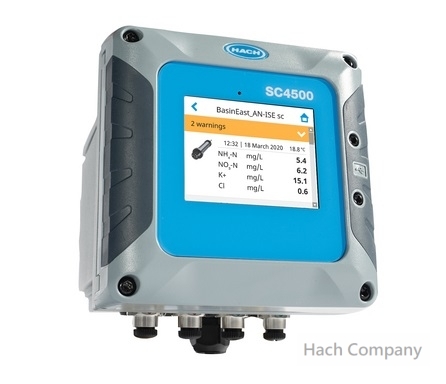

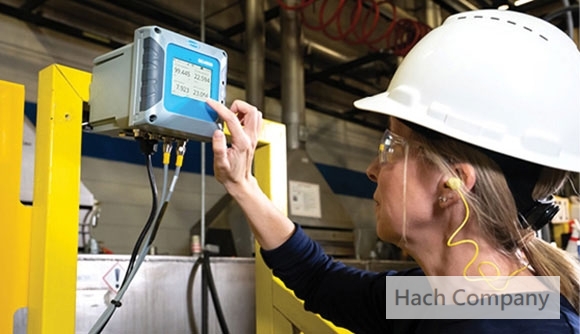

Easy Adoption 容易操作上手
The familiar experience of a modern touchscreen, the ability to use your current Hach sensors, and the same footprint as the SC200, make installation and integration of the SC4500 Controller seamless.
The familiar experience of a modern touchscreen, the ability to use your current Hach sensors, and the same footprint as the SC200, make installation and integration of the SC4500 Controller seamless.
觸控式操作螢幕、感測器一連接到SC4500 控制器即可使用, 快速安裝和整合。
No Time for Downtime
The SC4500's built-in predictive diagnostic software ensures measurement confidence and reduces the risk of unexpected equipment downtime by enabling proactive maintenance planning via MSM, including step-by-step instructions.
The SC4500's built-in predictive diagnostic software ensures measurement confidence and reduces the risk of unexpected equipment downtime by enabling proactive maintenance planning via MSM, including step-by-step instructions.
SC4500 內建儀器預測診斷軟體，確保穩定測量並降低設備意外停機的風險。
Providing the easy to integrate and upgrade SC4500 controller with the high-precision results of the Solitax sc sensor solution in one part number making ordering simple and fast.
For detailed technical specifications, please visit the following part-numbers:
SC4500: LXV525.99A11551
Solitax in-line sc: LXV424.99.00100
SC4500: LXV525.99A11551
Solitax in-line sc: LXV424.99.00100
What's included :
- SC4500 Controller, Prognosys, 5x mA Output, 2 digital Sensors, 100-240 VAC, without power cord (LXV525.99A11551)
- Solitax inline sc Turbidity (0.001-4000 NTU) and Suspended Solids (0.001-50 g/L) built-in probe, with wiper, stainless steel (LXV424.99.00100)
- Coped carbon steel welding flange kit for insertion mounting hardware (LZX703)
- Stainless steel safety armature for Solitax inline sc and Solitax highline sc (LZX337)
- SC4500 Controller, Prognosys, 5x mA Output, 2 digital Sensors, 100-240 VAC, without power cord (LXV525.99A11551)
- Solitax inline sc Turbidity (0.001-4000 NTU) and Suspended Solids (0.001-50 g/L) built-in probe, with wiper, stainless steel (LXV424.99.00100)
- Coped carbon steel welding flange kit for insertion mounting hardware (LZX703)
- Stainless steel safety armature for Solitax inline sc and Solitax highline sc (LZX337)
