水中酸鹼度電極(高鹼濃度水樣) IntelliCAL PHC705 Lab High Alkalinity Range RedRod Refillable Glass pH Electrode, 1 m Cable
產品編號：PHC705A01
IntelliCALⓇ PHC705A is a digital combination pH electrode with built-in temperature sensor. The PHC705A is a pH refillable electrode with ceramic porous pin reference junction embedding the RedRod technology to deliver exceptionally fast, stable, and accurate response times for accurate measurements within a wide temperature range. Thanks to its special pH glass bulb composition this high performance laboratory glass pH electrode is particularly suited for measuring pH in alkaline aqueous samples for pH above 12. A 59-mL bottle of saturated KCl Electrode Filling Solution is included with the probe. The PHC705 is not suitable for use with organic solvents, emulsions or sample types with high solids content.
內建溫度感測器的數位複合式 pH 分析電極。 PHC705A 可填充式 pH 探頭，採用陶瓷多孔針狀參考電極，並嵌入紅棒技術，可在廣泛的溫度範圍內提供極快、穩定且精確的反應時間，精準測量。由於其特殊的 pH 玻璃球結構，此款高效能實驗室玻璃 pH 分析電極特別適用於測量 pH 值高於 12 的鹼性水溶液樣品。探頭隨附一瓶 59 mL 飽和氯化鉀電極填充液。 PHC705 不適用於有機溶劑、乳液或高固體含量水樣。
Parameter : pH
Application 應用 : High Performance/High Alkalinity
Method Type 分析方法 : Laboratory: RedRod / Refillable Reference Element
Reference Type : Red Rod
Special Features : High-alkalinity samples
Range 量測範圍 : 0 - 14 pH
Accuracy : ±0.01 pH
Resolution : 0.001/0.01/0.1
Sample depth : 18 mm (0.71 in.)
Electrode Type : RedRod / Refillable Reference Element
Filling Solution : Saturated KCl (#25118026)
Junction : Porous Pin Junction
Sensor material : Glass
Sensor Type : pH Glass
Sodium (Alkalinity) error : <0.3 pH at pH 14 in 1 M NaOH
Temperature Range : 0 - 100 °C (32 - 212 °F)
Temperature Accuracy : ±0.3 °C (±0.54 °F)
Temperature Resolution : 0.1 °C (0.18 °F)
*使用 HQ系列 meter 主機進行控制分析 (sold separately)
關鍵字 : pH meter, pH probe, pH計, 水中 酸鹼度 分析探頭, 高鹼度水樣 pH 測量, pH 探頭, 精密型 pH計
內建溫度感測器的數位複合式 pH 分析電極。 PHC705A 可填充式 pH 探頭，採用陶瓷多孔針狀參考電極，並嵌入紅棒技術，可在廣泛的溫度範圍內提供極快、穩定且精確的反應時間，精準測量。由於其特殊的 pH 玻璃球結構，此款高效能實驗室玻璃 pH 分析電極特別適用於測量 pH 值高於 12 的鹼性水溶液樣品。探頭隨附一瓶 59 mL 飽和氯化鉀電極填充液。 PHC705 不適用於有機溶劑、乳液或高固體含量水樣。
Parameter : pH
Application 應用 : High Performance/High Alkalinity
Method Type 分析方法 : Laboratory: RedRod / Refillable Reference Element
Reference Type : Red Rod
Special Features : High-alkalinity samples
Range 量測範圍 : 0 - 14 pH
Accuracy : ±0.01 pH
Resolution : 0.001/0.01/0.1
Sample depth : 18 mm (0.71 in.)
Electrode Type : RedRod / Refillable Reference Element
Filling Solution : Saturated KCl (#25118026)
Junction : Porous Pin Junction
Sensor material : Glass
Sensor Type : pH Glass
Sodium (Alkalinity) error : <0.3 pH at pH 14 in 1 M NaOH
Temperature Range : 0 - 100 °C (32 - 212 °F)
Temperature Accuracy : ±0.3 °C (±0.54 °F)
Temperature Resolution : 0.1 °C (0.18 °F)
*使用 HQ系列 meter 主機進行控制分析 (sold separately)
關鍵字 : pH meter, pH probe, pH計, 水中 酸鹼度 分析探頭, 高鹼度水樣 pH 測量, pH 探頭, 精密型 pH計

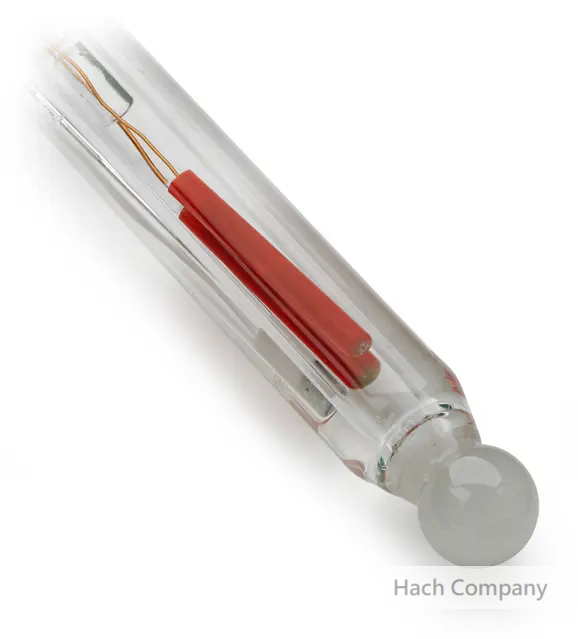

Red Rod technology provides fast, accurate and reproducible measurements
Symmetry between internal and external Red Rod reference elements ensures that the iso pH is the same as the zero pH, providing highly reproducible results and a fast, accurate response, even in samples with fluctuating temperatures. Red Rod technology also provides a stable signal by protecting the reference elements from light interference, and the saturated KCl salt-bridge aids in creating a stable liquid junction potential.
Symmetry between internal and external Red Rod reference elements ensures that the iso pH is the same as the zero pH, providing highly reproducible results and a fast, accurate response, even in samples with fluctuating temperatures. Red Rod technology also provides a stable signal by protecting the reference elements from light interference, and the saturated KCl salt-bridge aids in creating a stable liquid junction potential.
Red Rod reliability when measuring challenging samples over wider temperature ranges
Red Rod encapsulation of reference elements means no silver ions and less risk of clogged junctions. It also enables accurate measurements over a broader temperature range than standard electrodes.
Red Rod encapsulation of reference elements means no silver ions and less risk of clogged junctions. It also enables accurate measurements over a broader temperature range than standard electrodes.

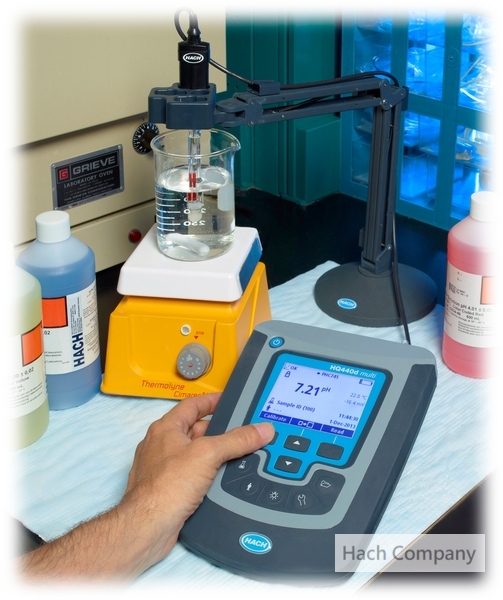

IntelliCAL digital probes can be moved between meters without the need to re-calibrate or re-enter measurement settings
Ideal for a multi-user environment with multiple HQD series laboratory and portable meters.
Ideal for a multi-user environment with multiple HQD series laboratory and portable meters.
IntelliCAL digital probes provide ultimate traceability in measurement history
Stored time and date stamp for each measurement, operator and sample ID, calibration history, parameter, and probe serial number
Stored time and date stamp for each measurement, operator and sample ID, calibration history, parameter, and probe serial number
Wide temperature range up to 100 °C
