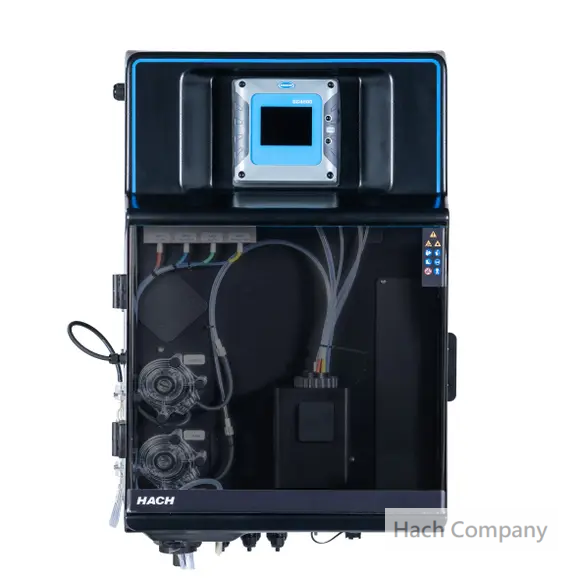

The EZ1031sc Phosphate analyzer uses the yellow method, based on the molybdovanadate process, to provide reliable and precise phosphate measurement in water. This approach is recognized for its effectiveness in advanced wastewater treatment applications, where clear results and dependable operation are critical. Designed to reduce downtime and boost efficiency, it ensures accurate monitoring to help optimize performance and maintain compliance. With the built-in SC4500 controller, it provides advanced data management and control. Durable and user-friendly, the EZ1031sc integrates easily into your operations for consistent success.
EZ1031sc 磷酸鹽自動分析儀採用根據鉬釩酸鹽法的黃法，可靠、精確監測水中磷酸鹽的濃度。此方法於先進廢污水處理應用中的有效性而備受肯定，特別是明確的監測結果和穩定可靠的運作。減少停機時間並提高效率，確保精確監測，進而協助優化效能並保持合規。內建的 SC4500 控制器提供先進的數據管理和控制功能。 EZ1031sc 經久耐用且容易操作，並可輕鬆整合到您的營運中。

Reliable, Scalable Systems Designed for Peak Performance 可靠、可擴展的系統，專門為卓越效能而設計

Flexible Customization 靈活配置
Customize the EZ1031sc Phosphate analyzer to fit your process. The standard model supports one stream but can be upgraded to handle up to eight streams with 4x or 8x mA outputs. It integrates easily into your system with network options like Modbus RTU, Modbus TCP/IP, Profibus DP, and Ethernet/IP for reliable connectivity and data integration. 標準型號支援一個水樣流，但可透過升級處理多達八個水樣流，並提供 4x 或 8x mA 輸出。可透過 Modbus RTU、Modbus TCP/IP、Profibus DP 和 Ethernet/IP 等網路選項輕鬆整合到您的系統中，達到可靠連接和數據資料整合。

Reliable and Easy to Use 穩定可靠且容易操作使用
The EZ1031sc Phosphate analyzer is engineered to deliver consistent, high-accuracy measurements with minimal maintenance requirements. Its intuitive design simplifies operation, enabling your team to focus on critical tasks without the stress of complex functionality. Dependable and user-friendly, this analyzer is built to support uninterrupted, efficient operations in the most demanding environments. 日常維護需求量極低。直覺式設計簡化操作，使您能夠專注於關鍵任務，而無需為複雜的功能而煩惱。可靠且容易操作使用，專門為在嚴苛環境下高效率持續運作而設計。

Certifications： CE compliant / ETL certified

Parameter 分析參數： Phosphate (vanadate yellow)
Measurement Method 分析方法： Colorimetric measurement using vanadate yellow method (450 nm) 比色法(黃法)

Range 量測範圍：
0.02 - 1 mg/L PO4-P
0.05 - 2.5 mg/L PO4-P
0.05 - 5 mg/L PO4-P
0.1 - 10 mg/L PO4-P
0.5 - 50 mg/L PO4-P (with internal dilution)
1.0 - 100 mg/L PO4-P (with internal dilution)
2.5 -250 mg/L PO4-P (with internal dilution)
5.0 -500 mg/L PO4-P (with internal dilution)
7.5 -750 mg/L PO4-P (with internal dilution)
10 -1000 mg/L PO4-P (with internal dilution)

Precision 精確度： Better than 2% full scale range for standard test solutions

Sample Flow Rate： 100 - 300 mL/min
Sample Pressure： By external overflow vessel
Sample Quality Maximum particle size 100 µm, < 0.1 g/L; Turbidity < 50 NTU

Interferences： Large amounts of color and turbidity interfere. Fats, oil, proteins, surfactants and tar.

Automatic cleaning 自動清潔： Yes

Calibration 校正： Automatic, 2-point; frequency freely programmable

Protection Class： IP44

Validation 驗證： Automatic; frequency freely programmable

Analog Outputs 類比輸出： Active 4 - 20 mA max. 500 Ohm load, standard 4, max. 8 (option)

Digital Outputs 數位輸出： None
Optional: Modbus (TCP/IP, RTU), Profinet, Profibus DP, Ethernet IP

關鍵字 : 水中磷酸鹽監測儀, 線上 自動監測 水中磷酸鹽 濃度
