水中導電度感測器 Contacting Conductivity Digital Sensor, 0.50 Cell Constant, Compression Fitting Style
產品編號：D3422B3
Ultimate accuracy from ultra-pure to high conductivity applications. 精準監測超純水, 超高導電度應用
Nominal Cell Constant (K) = 0.5, 3/4 inch NPT PVDF Compression Fitting, 7m (23 ft) Digital Cable, Titanium Electrode
Range 量測範圍 : 0 - 1000 µS/cm
Accuracy : ± 2 % of reading above 200 µS/cm
Repeatability : ± 0.5 of reading
Response Time : 90 % of reading within 30 seconds of step change
Sensitivity : ± .05 % of reading
Cell Constant k : 0.5 cm-1
Flow : 0 - 3 m/s (0–10 ft./s), maximum, fully immersed
Pressure Range : 0 - 300 psi (20.7 BAR)
Electrode Material : Titanium
Temperature Compensation : Temperature Compensator: Pt 1000 RTD
Temperature Measurement : -20 - 200 °C (-4 - 392°F)
Installation Requirement : PVDF
Cable Length : 6 m
Hach 導電度感測器3400系列與 Hach SC系列通用數位控制主機(錶頭)相容。安裝時，只需將數位傳感器插入 SC系列控制主機，控制主機即可自動辨識開始啟用，無需擔心複雜或冗長的設定工作。
關鍵字: 水 導電度 連續監測, 水 導電度分析儀, 水 導電度監測儀, 線上 導電度 連續監測, 水 導電度 sensor, online conductivity analyzer, 3400系列 Conductivity Sensors
Nominal Cell Constant (K) = 0.5, 3/4 inch NPT PVDF Compression Fitting, 7m (23 ft) Digital Cable, Titanium Electrode
Range 量測範圍 : 0 - 1000 µS/cm
Accuracy : ± 2 % of reading above 200 µS/cm
Repeatability : ± 0.5 of reading
Response Time : 90 % of reading within 30 seconds of step change
Sensitivity : ± .05 % of reading
Cell Constant k : 0.5 cm-1
Flow : 0 - 3 m/s (0–10 ft./s), maximum, fully immersed
Pressure Range : 0 - 300 psi (20.7 BAR)
Electrode Material : Titanium
Temperature Compensation : Temperature Compensator: Pt 1000 RTD
Temperature Measurement : -20 - 200 °C (-4 - 392°F)
Installation Requirement : PVDF
Cable Length : 6 m
Hach 導電度感測器3400系列與 Hach SC系列通用數位控制主機(錶頭)相容。安裝時，只需將數位傳感器插入 SC系列控制主機，控制主機即可自動辨識開始啟用，無需擔心複雜或冗長的設定工作。
關鍵字: 水 導電度 連續監測, 水 導電度分析儀, 水 導電度監測儀, 線上 導電度 連續監測, 水 導電度 sensor, online conductivity analyzer, 3400系列 Conductivity Sensors
High Performance Design
These enhanced performance sensors are manufactured to exacting tolerances using high quality, rugged materials for demanding applications including ultra-pure water, clean-in-place (CIP), and boiler/condensate monitoring. Each sensor is tested to determine its unique, absolute four-digit cell constant. Also, each sensor has a Pt 1000 RTD temperature element built into its tip for exceptionally fast response to changes in temperature with ±0.1ºC accuracy.
These enhanced performance sensors are manufactured to exacting tolerances using high quality, rugged materials for demanding applications including ultra-pure water, clean-in-place (CIP), and boiler/condensate monitoring. Each sensor is tested to determine its unique, absolute four-digit cell constant. Also, each sensor has a Pt 1000 RTD temperature element built into its tip for exceptionally fast response to changes in temperature with ±0.1ºC accuracy.
Resistivity and Conductivity Measurement Capability
These enhanced performance sensors measure from theoretically pure water (0.057 µS/cm or 18.2 MΩ) up to 200,000 µS/cm. Hach’s sc Digital Controllers accept multiple digital sensor inputs, and can be user-set to measure conductivity, resistivity,TDS, salinity, or one of six calculated measurements.
These enhanced performance sensors measure from theoretically pure water (0.057 µS/cm or 18.2 MΩ) up to 200,000 µS/cm. Hach’s sc Digital Controllers accept multiple digital sensor inputs, and can be user-set to measure conductivity, resistivity,TDS, salinity, or one of six calculated measurements.
Versatile Mounting Styles
Compression fitting sensors feature titanium electrodes and a compression fitting for universal installation with up to 4 inches (102 mm) insertion depth. The 1/2-inch or 3/4-inch male NPT compression fittings are offered in PVDF or 316 stainless steel. A longer version of this sensor is available for use with a 316 stainless steel ball valve hardware assembly to insert/retract the sensor from the process without stopping the flow. The longer version can also be used for insertion through a compression fitting. Maximum insertion depth is 7 inches (178 mm).
Compression fitting sensors feature titanium electrodes and a compression fitting for universal installation with up to 4 inches (102 mm) insertion depth. The 1/2-inch or 3/4-inch male NPT compression fittings are offered in PVDF or 316 stainless steel. A longer version of this sensor is available for use with a 316 stainless steel ball valve hardware assembly to insert/retract the sensor from the process without stopping the flow. The longer version can also be used for insertion through a compression fitting. Maximum insertion depth is 7 inches (178 mm).

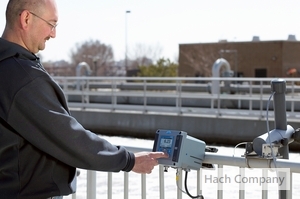

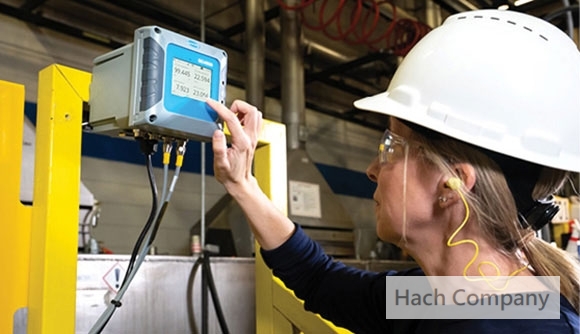

Full Featured “Plug and Play” with Digital SC Controller
There are no complicated wiring or set up procedures with any Hach SC controller. Just plug in any combination of Hach digital sensors and it's ready to use—it’s “plug and play.”
There are no complicated wiring or set up procedures with any Hach SC controller. Just plug in any combination of Hach digital sensors and it's ready to use—it’s “plug and play.”
