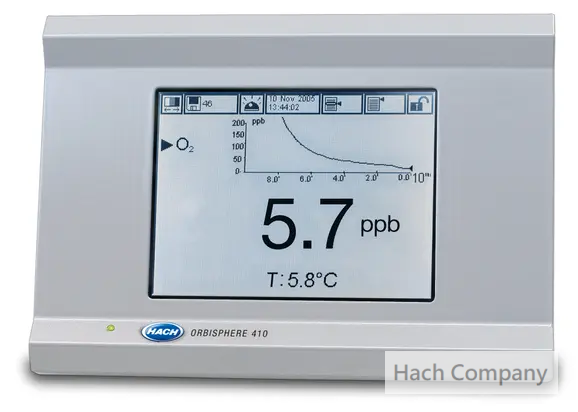

氧氣含量監測控制器 Orbisphere 410A Controller O₂ (EC), 1 Channel, Panel Mount
產品編號：410A/P1C10000
The Orbisphere 410 Mono-Channel controller offers precise, powerful process monitoring capability. 高精密設計單通道控制器提供精準強大的過程監控功能
These controllers are designed for applications in the power generation, electronics, life sciences, beverage, chemical and water treatment industries.
專門為電廠，微電子製造，生技製藥，飲料，化學和水處理產業應用而設計。
Precise, Powerful Process monitoring 高精密度和快速的反應時間帶給您高效率與可靠過程監控
Designed to complement the Orbisphere high quality sensors these instruments provide accurate, repeatable trace level measurements and an impressive level of data management. 此系列控制器與 Orbisphere 的高精密度感測器配合使用，提供準確、可重複的微量測量和優異的數據管理能力 (sensors sold separately)
Depending on the version, the Orbisphere 410 controller can be combined with:
• Orbisphere 311xx Oxygen Sensors
• Orbisphere A1100 Oxygen Sensors
• Orbisphere K1100 Oxygen Sensors
• Orbisphere M1100 Oxygen Sensor
• Orbisphere 314xx Carbon Dioxyde Sensors
• Orbisphere C1100 Ozone Sensors
Compliance Certifications :
EMC: EN61326-1:2006
CE: EN61010-1:2010
ETL, conforming to UL 61010-1 and CSA 22.2 No. 61010-1
Parameter 分析參數 : O₂ (EC)
Measurements : Resolution, accuracy and response time are determined by sensor 解析度、準確度和反應時間依感測器而定
Display : Color TFT touchscreen display
彩色觸控式螢幕和強大內建軟體提升操作容易度
User Interface 使用者操作介面 : Touch screen panel displays: concentration, trend graph, diagnostics, alarm status, historical data 濃度、趨勢圖、診斷資訊、警示狀態、歷史數據
Password Protection 密碼保護 : 5 levels of authorized access to configuration and data management
Data Storage 數據儲存 : Rolling buffer or store once mode for up to 1000 measurements and 1000 operator actions
Holds calibration records for last 50 calibrations
Units :
Gas concentration: Configurable for gas or liquid phase with multiple unit options 可配置用於氣相或液相，並提供多種選項
Pressure: External and barometric pressure with multiple unit options
Temperature: Sample temperature with unit options (K, °C, °F)
Analog Outputs 輸出 : 3 smart 0/4-20 mA (500 ohms), programmable as linear or tri-liniear, configurable to send diagnostics information
Communication 通訊 : Profibus DP/ RS485
Communication Capabilities : 3 x 0/4-20 mA; RS485; Ethernet
Compatible Instruments 相容 Orbisphere 感測器 : Channel 1: 311xx, A1100 or GA2x00
*Sensor and cable, flow-chamber or process connection, must be ordered separately.
關鍵字 : 純水 氧氣量 分析, pure water oxygen analyzer, 純水 溶氧 監測 控制器, 純水 溶氧 控制主機
These controllers are designed for applications in the power generation, electronics, life sciences, beverage, chemical and water treatment industries.
專門為電廠，微電子製造，生技製藥，飲料，化學和水處理產業應用而設計。
Precise, Powerful Process monitoring 高精密度和快速的反應時間帶給您高效率與可靠過程監控
Designed to complement the Orbisphere high quality sensors these instruments provide accurate, repeatable trace level measurements and an impressive level of data management. 此系列控制器與 Orbisphere 的高精密度感測器配合使用，提供準確、可重複的微量測量和優異的數據管理能力 (sensors sold separately)
Depending on the version, the Orbisphere 410 controller can be combined with:
• Orbisphere 311xx Oxygen Sensors
• Orbisphere A1100 Oxygen Sensors
• Orbisphere K1100 Oxygen Sensors
• Orbisphere M1100 Oxygen Sensor
• Orbisphere 314xx Carbon Dioxyde Sensors
• Orbisphere C1100 Ozone Sensors
Compliance Certifications :
EMC: EN61326-1:2006
CE: EN61010-1:2010
ETL, conforming to UL 61010-1 and CSA 22.2 No. 61010-1
Parameter 分析參數 : O₂ (EC)
Measurements : Resolution, accuracy and response time are determined by sensor 解析度、準確度和反應時間依感測器而定
Display : Color TFT touchscreen display
彩色觸控式螢幕和強大內建軟體提升操作容易度
User Interface 使用者操作介面 : Touch screen panel displays: concentration, trend graph, diagnostics, alarm status, historical data 濃度、趨勢圖、診斷資訊、警示狀態、歷史數據
Password Protection 密碼保護 : 5 levels of authorized access to configuration and data management
Data Storage 數據儲存 : Rolling buffer or store once mode for up to 1000 measurements and 1000 operator actions
Holds calibration records for last 50 calibrations
Units :
Gas concentration: Configurable for gas or liquid phase with multiple unit options 可配置用於氣相或液相，並提供多種選項
Pressure: External and barometric pressure with multiple unit options
Temperature: Sample temperature with unit options (K, °C, °F)
Analog Outputs 輸出 : 3 smart 0/4-20 mA (500 ohms), programmable as linear or tri-liniear, configurable to send diagnostics information
Communication 通訊 : Profibus DP/ RS485
Communication Capabilities : 3 x 0/4-20 mA; RS485; Ethernet
Compatible Instruments 相容 Orbisphere 感測器 : Channel 1: 311xx, A1100 or GA2x00
*Sensor and cable, flow-chamber or process connection, must be ordered separately.
關鍵字 : 純水 氧氣量 分析, pure water oxygen analyzer, 純水 溶氧 監測 控制器, 純水 溶氧 控制主機
Easy to use, intuitive software using clear, full color touch-screen
All functions of Orbisphere 410 instruments are accessed through the color, touch screen.This screen acts as display and keyboard.
All functions of Orbisphere 410 instruments are accessed through the color, touch screen.This screen acts as display and keyboard.
Internal diagnostics and reminders for maintenance and calibration
To ensure continuous high performance and simplify maintenance, Orbisphere 510 instruments offer a number of diagnostic features.
Notification that calibration is due—ensures QC procedural compliance
Notification that a sensor service is due—optimal preventative maintenance planning
Sensor service diagnostics—minimizes downtime
System alarms transmitted through analog output—continuous status indication
To ensure continuous high performance and simplify maintenance, Orbisphere 510 instruments offer a number of diagnostic features.
Notification that calibration is due—ensures QC procedural compliance
Notification that a sensor service is due—optimal preventative maintenance planning
Sensor service diagnostics—minimizes downtime
System alarms transmitted through analog output—continuous status indication
Easy to use and reliable
Orbisphere 410 instruments are designed for ease of use. After simple installation, the system is measuring your process in minutes. Simple menus allow you to rapidly create a specific configuration for the instrument. The main measurement window continuously displays real time process readings, graphed sensor trends (user selectable from last 1 minute to last 1 hour), alarm limits, temperature and event occurrence.
Orbisphere 410 instruments are designed for ease of use. After simple installation, the system is measuring your process in minutes. Simple menus allow you to rapidly create a specific configuration for the instrument. The main measurement window continuously displays real time process readings, graphed sensor trends (user selectable from last 1 minute to last 1 hour), alarm limits, temperature and event occurrence.
Multiple communication options including USB and Profibus
Digital communication uses industry standard protocols including Profibus and USB in addition to traditional analog outputs and alarm relays. These may all be configured in terms of function, content and behavior.
Digital communication uses industry standard protocols including Profibus and USB in addition to traditional analog outputs and alarm relays. These may all be configured in terms of function, content and behavior.
Data Storage
Data storage of up to 10000 measurements, last 1000 operator actions and details of last 50 calibrations
Data storage of up to 10000 measurements, last 1000 operator actions and details of last 50 calibrations
