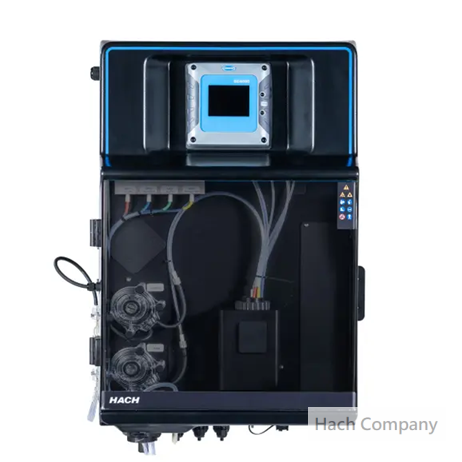

水中鋅監測儀 EZ1040sc Zinc Colorimetric Analyzer
產品編號：EZ1040.9700140T
The EZ1040sc Zinc analyzer ensures accurate, efficient zinc monitoring in water for industrial and wastewater applications. Designed for reliability, it addresses process inefficiencies, ensures compliance, and optimizes performance. With its advanced design and the built-in SC4500 controller, it minimizes downtime and supports continuous operation, making it ideal for demanding environments.
EZ1040sc 鋅分析儀準確、高效率監測工業和廢污水的水中鋅濃度。設計可靠，協助解決過程效率低問題，確以確實符合相關法規，並優化效能。先進的設計和內建的 SC4500 控制器，大幅減少設備停機時間並支援連續運作，為嚴苛環境應用的理想之選。
Flexible Customization 彈性客製化
The EZ1040sc Zinc analyzer is built to meet your operational needs. The base model supports one stream but can be configured for up to four or eight streams with 4x or 8x mA outputs. With advanced connectivity options like Modbus RTU, Modbus TCP/IP, Profibus DP, and Ethernet/IP, it integrates seamlessly into existing systems, offering a scalable solution for evolving demands.
Reliable and Easy to Use 穩定可靠 操作簡單
Engineered for durability and precision, the EZ1040sc Zinc analyzer consistently delivers high-accuracy zinc measurements that operators can depend on. Its intuitive interface simplifies operation, reducing the learning curve and enabling users to focus on mission-critical tasks. Designed with low maintenance requirements, this instrument ensures minimal disruption, allowing for smoother and more efficient operations.
Explore Tailored Solutions 彈性擴展可行性
Every facility has unique needs, and the EZ1040sc Zinc analyzer is built to meet them. Contact us today to learn how this customizable solution can enhance your processes, improve efficiency, and ensure compliance with ease. Together, we’ll find the right configuration to fit your specific requirements and drive your success.
Certifications 認證 : CE compliant / ETL certified
Measurement Method 量測方法 : Colorimetric measurement at 630 nm using Zincon, conform with standard method APHA 3500-Zn (B)
Range :
0.01 - 0.1 mg/L
0.025 - 0.25 mg/L
0.025 - 0.5 mg/L
0.05 - 1 mg/L
0.25 - 5 mg/L (with internal dilution)
0.5 - 10 mg/L (with internal dilution)
1.25 - 25 mg/L (with internal dilution)
2.5 - 50 mg/L (with internal dilution)
3.75 - 75 mg/L (with internal dilution)
5 - 100 mg/L (with internal dilution)
Lower Limit of Detection (LOD) : ≤ 10 µg/L
Sample Flow Rate : 100 - 300 mL/min
Cycle Time : 10 min (dilution + 5 min)
Calibration 校正 : Automatic, 2-point; frequency freely programmable
Automatic cleaning : Yes
Validation 驗證 : Automatic; frequency freely programmable
Number of sample streams :
Standard: 1
Optional accessory for 2, 4, or 8 sample streams
Analog Outputs 類比輸出 : Active 4 - 20 mA max. 500 Ohm load, standard 4, max. 8 (option)
Digital Outputs 數位輸出 : None
Optional: Modbus (TCP/IP, RTU), Profinet, Profibus DP, Ethernet IP
關鍵字 : 水 鋅濃度 自動監測, 水 鋅離子 濃度 自動分析儀, water zinc monitoring, zinc analyzer
EZ1040sc 鋅分析儀準確、高效率監測工業和廢污水的水中鋅濃度。設計可靠，協助解決過程效率低問題，確以確實符合相關法規，並優化效能。先進的設計和內建的 SC4500 控制器，大幅減少設備停機時間並支援連續運作，為嚴苛環境應用的理想之選。
Flexible Customization 彈性客製化
The EZ1040sc Zinc analyzer is built to meet your operational needs. The base model supports one stream but can be configured for up to four or eight streams with 4x or 8x mA outputs. With advanced connectivity options like Modbus RTU, Modbus TCP/IP, Profibus DP, and Ethernet/IP, it integrates seamlessly into existing systems, offering a scalable solution for evolving demands.
Reliable and Easy to Use 穩定可靠 操作簡單
Engineered for durability and precision, the EZ1040sc Zinc analyzer consistently delivers high-accuracy zinc measurements that operators can depend on. Its intuitive interface simplifies operation, reducing the learning curve and enabling users to focus on mission-critical tasks. Designed with low maintenance requirements, this instrument ensures minimal disruption, allowing for smoother and more efficient operations.
Explore Tailored Solutions 彈性擴展可行性
Every facility has unique needs, and the EZ1040sc Zinc analyzer is built to meet them. Contact us today to learn how this customizable solution can enhance your processes, improve efficiency, and ensure compliance with ease. Together, we’ll find the right configuration to fit your specific requirements and drive your success.
Certifications 認證 : CE compliant / ETL certified
Measurement Method 量測方法 : Colorimetric measurement at 630 nm using Zincon, conform with standard method APHA 3500-Zn (B)
Range :
0.01 - 0.1 mg/L
0.025 - 0.25 mg/L
0.025 - 0.5 mg/L
0.05 - 1 mg/L
0.25 - 5 mg/L (with internal dilution)
0.5 - 10 mg/L (with internal dilution)
1.25 - 25 mg/L (with internal dilution)
2.5 - 50 mg/L (with internal dilution)
3.75 - 75 mg/L (with internal dilution)
5 - 100 mg/L (with internal dilution)
Lower Limit of Detection (LOD) : ≤ 10 µg/L
Sample Flow Rate : 100 - 300 mL/min
Cycle Time : 10 min (dilution + 5 min)
Calibration 校正 : Automatic, 2-point; frequency freely programmable
Automatic cleaning : Yes
Validation 驗證 : Automatic; frequency freely programmable
Number of sample streams :
Standard: 1
Optional accessory for 2, 4, or 8 sample streams
Analog Outputs 類比輸出 : Active 4 - 20 mA max. 500 Ohm load, standard 4, max. 8 (option)
Digital Outputs 數位輸出 : None
Optional: Modbus (TCP/IP, RTU), Profinet, Profibus DP, Ethernet IP
關鍵字 : 水 鋅濃度 自動監測, 水 鋅離子 濃度 自動分析儀, water zinc monitoring, zinc analyzer
Trusted Equipment for Critical Operations
The EZ sc Series combines robust engineering with high-quality materials to ensure reliability 24/7. Designed for long-term performance, EZ sc Series minimises breakdowns and supports sustained operational success.
The EZ sc Series combines robust engineering with high-quality materials to ensure reliability 24/7. Designed for long-term performance, EZ sc Series minimises breakdowns and supports sustained operational success.
Scalable Solutions for Growing Needs
Built to evolve alongside your needs, online analysers from the EZ sc Series offer adaptable parameters and easier integration. They ensure your facility remains future proof without requiring expensive upgrades. Easily adjust parameter testing ranges and expand sample streams to accommodate innovation and growth.
Built to evolve alongside your needs, online analysers from the EZ sc Series offer adaptable parameters and easier integration. They ensure your facility remains future proof without requiring expensive upgrades. Easily adjust parameter testing ranges and expand sample streams to accommodate innovation and growth.
Real-Time Data for Faster Decisions
The EZ sc Series offers advanced connectivity and real-time monitoring, delivering immediate access to actionable insights. Facilities utilising this technology benefit from improved reaction times, empowering more informed decision-making and quicker responses during critical situations.
The EZ sc Series offers advanced connectivity and real-time monitoring, delivering immediate access to actionable insights. Facilities utilising this technology benefit from improved reaction times, empowering more informed decision-making and quicker responses during critical situations.
Simplified Troubleshooting with Expert Support
Built-in diagnostics combined with secure remote data access make the EZ sc Series simplify issue resolution. Supported by a highly responsive team of experts, it ensures uninterrupted functionality and minimises operational downtime. By addressing and identifying issues early, EZ sc Series of online analysers helps prevent costly disruptions and repairs while maintaining system efficiency.
Built-in diagnostics combined with secure remote data access make the EZ sc Series simplify issue resolution. Supported by a highly responsive team of experts, it ensures uninterrupted functionality and minimises operational downtime. By addressing and identifying issues early, EZ sc Series of online analysers helps prevent costly disruptions and repairs while maintaining system efficiency.
Clear Workflows for Predictable Outcomes
Standardised tools and guided workflows ensure consistent implementation and operation. The EZ sc Series minimises miscommunication, sets clear expectations, and reduces process inconsistencies, driving greater efficiency.
Standardised tools and guided workflows ensure consistent implementation and operation. The EZ sc Series minimises miscommunication, sets clear expectations, and reduces process inconsistencies, driving greater efficiency.
