水中銅分析儀 EZ1010 Copper Cu(II) Analyzer
產品編號：
Online colorimetric analysis of dissolved Copper in water 線上比色法自動分析水中溶解銅濃度
EZ1000 Copper Analyzers achieve excellent precision and accuracy. At the heart of the colorimeter there is a compact photometer assembly developed especially for the EZ Series. Consumption of reagents is reduced by low volume analysis, yet high sensitivity is assured by a long optical path length. The limit of detection is in the low µg/L range. 卓越的精密度和準確度。輕巧型光度計元件設計。低容量分析減少試劑消耗，長光程確保高靈敏度。偵測限值在低至 µg/L 的範圍內。
Certifications 認證 : CE compliant / ETL certified
Measurement Method 量測方法 : Colorimetric measurement at 546 nm using bicinchoninate method; conform respectively with USEPA Method 8506 and standard method APHA 3500-Cu (C)
Range 量測範圍 : 0.03 - 3 mg/L Cu(II)
Optional:
0.003 - 0.3 mg/L
0.02 - 0.75 mg/L
0.02 - 1.5 mg/L
0.2 - 12 mg/L (with internal dilution)
0.5 - 24 mg/L (with internal dilution)
3 - 300 mg/L (with internal dilution)
Precision : Better than 2% full scale range for standard test solutions
Lower Limit of Detection (LOD) : ≤ 3 µg/L
Sample Quality : Maximum particle size 100 µm, < 0.1 g/L; Turbidity < 50 NTU
Validation : Automatic; frequency freely programmable
Calibration 校正 : Automatic, 2-point; frequency freely programmable
Automatic cleaning : Yes
Analog Outputs : Active 4 - 20 mA max. 500 Ohm load, standard 1, max. 8 (option)
Digital Outputs : Optional: Modbus (TCP/IP, RS485)
關鍵字 : 水 銅 監測儀, 自動監測 水中 銅 濃度, online copper analyzer, 廢水 銅 濃度 監測, copper sensor, Cu analyzer
EZ1000 Copper Analyzers achieve excellent precision and accuracy. At the heart of the colorimeter there is a compact photometer assembly developed especially for the EZ Series. Consumption of reagents is reduced by low volume analysis, yet high sensitivity is assured by a long optical path length. The limit of detection is in the low µg/L range. 卓越的精密度和準確度。輕巧型光度計元件設計。低容量分析減少試劑消耗，長光程確保高靈敏度。偵測限值在低至 µg/L 的範圍內。
Certifications 認證 : CE compliant / ETL certified
Measurement Method 量測方法 : Colorimetric measurement at 546 nm using bicinchoninate method; conform respectively with USEPA Method 8506 and standard method APHA 3500-Cu (C)
Range 量測範圍 : 0.03 - 3 mg/L Cu(II)
Optional:
0.003 - 0.3 mg/L
0.02 - 0.75 mg/L
0.02 - 1.5 mg/L
0.2 - 12 mg/L (with internal dilution)
0.5 - 24 mg/L (with internal dilution)
3 - 300 mg/L (with internal dilution)
Precision : Better than 2% full scale range for standard test solutions
Lower Limit of Detection (LOD) : ≤ 3 µg/L
Sample Quality : Maximum particle size 100 µm, < 0.1 g/L; Turbidity < 50 NTU
Validation : Automatic; frequency freely programmable
Calibration 校正 : Automatic, 2-point; frequency freely programmable
Automatic cleaning : Yes
Analog Outputs : Active 4 - 20 mA max. 500 Ohm load, standard 1, max. 8 (option)
Digital Outputs : Optional: Modbus (TCP/IP, RS485)
關鍵字 : 水 銅 監測儀, 自動監測 水中 銅 濃度, online copper analyzer, 廢水 銅 濃度 監測, copper sensor, Cu analyzer
Results you can rely on 精密準確穩定可靠

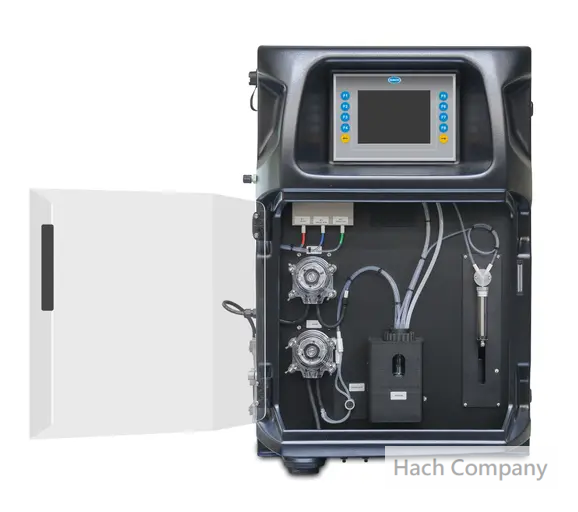

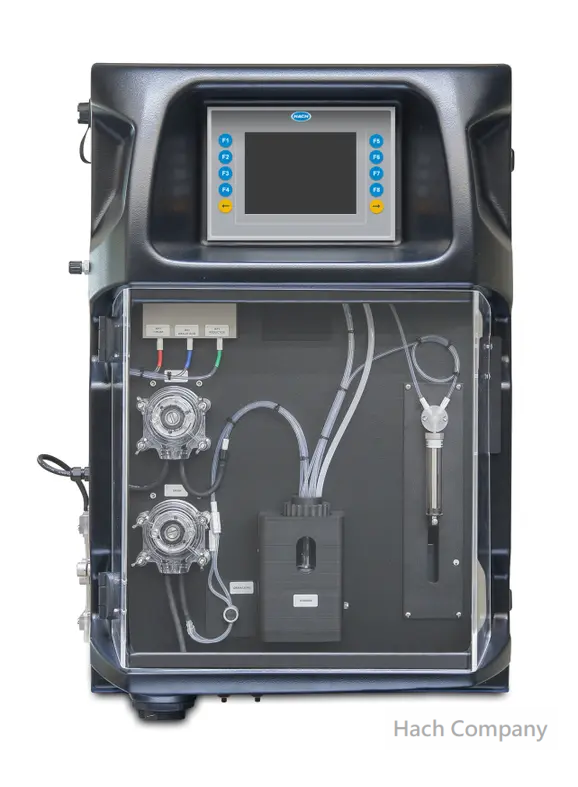

Smart automatic features for calibration, validation, priming and cleaning are embedded in the controller software and contribute to analytical performance, maximized uptime and negligible operator invervention. Precision micropumps dose all reagents. Sample lines and analysis vessel are cleaned with demineralized water to eliminate cross contamination between samples. Electronic and wet-chemical part of the analyzer are strictly separated. A transparent door allows for instant visual inspection of the wet part.
Smart automatic features for calibration, validation, priming and cleaning are embedded in the controller software and contribute to analytical performance, maximized uptime and negligible operator invervention. Precision micropumps dose all reagents. Sample lines and analysis vessel are cleaned with demineralized water to eliminate cross contamination between samples. Electronic and wet-chemical part of the analyzer are strictly separated. A transparent door allows for instant visual inspection of the wet part.
內建智慧自動化校正、驗證、清潔功能，協助提高分析效能，將正常運作時間最大化，大幅減少操作人員的干預。精密微型幫浦處理試劑的定量。水樣管線和分析容器均採用去離子水清洗以消除水樣間的交叉污染。分析儀的電子部分和濕化學部分嚴格分離。透明門的設計讓使用者可即時目視檢查濕化學部分。
Flexibility that meets your needs 高度靈活性
EZ Series Copper Analyzers come in an attractive, ergonomic mainframe with a compact footprint. All hardware is controlled by the integrated industrial panel PC. The modular build allows for the analyzer to match your application and operational needs.
- The standard measuring range can be narrowed by a different calibration range or extended via internal dilution options.
- Analog and digital output options
- Multiple stream analysis for up to 8 sample streams
EZ Series Copper Analyzers come in an attractive, ergonomic mainframe with a compact footprint. All hardware is controlled by the integrated industrial panel PC. The modular build allows for the analyzer to match your application and operational needs.
- The standard measuring range can be narrowed by a different calibration range or extended via internal dilution options.
- Analog and digital output options
- Multiple stream analysis for up to 8 sample streams
EZ系列線上分析儀採用美觀、符合人體工學的主機，體積精巧。所有硬體都由整合工業平板電腦控制。模組化結構滿足您的應用和操作需求。
- 標準測量範圍可透過不同的校正範圍縮小，或透過內部稀釋選項進行擴展。
- 類比和數位輸出選項
- 多水樣流分析，最多可進行 8 個水樣流分析
- 標準測量範圍可透過不同的校正範圍縮小，或透過內部稀釋選項進行擴展。
- 類比和數位輸出選項
- 多水樣流分析，最多可進行 8 個水樣流分析
There are many additional options available. Please contact Hach for more details.
