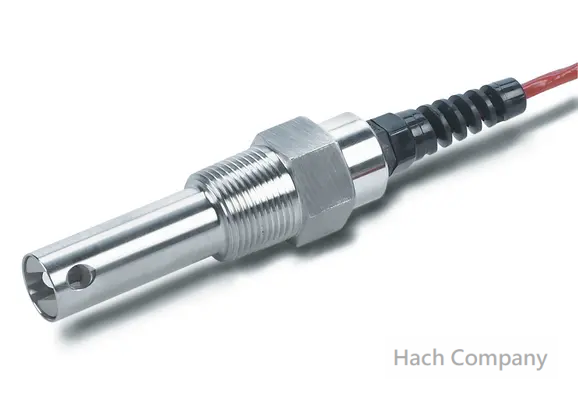

水中導電度感測器 Conductivity Sensor, Cell Constant 0.5, Stainless Steel HD
產品編號3444B8D
Nominal Cell Constant (K) = 0.5, 3/4 inch male NPT threaded 316 stainless steel body, 316 Stainless Steel Junction Box with 3/4" NPT Conduit Connection - Requires 1W1100 Interconnect Cable, Titanium Electrode

Installation style : Boiler/Condensate
Electrode Material : 316 SS
Junction box : 316 ss
Cell Constant k : 0.5
Range 量測範圍 : 0 - 1000 µS/cm
Digital Gateway : 316 Stainless Steel with 3/4" conduit connection
Sensor Type : Analog
Cable Length : 20

關鍵字 : hach 3400 系列 導電度感測器, 水中導電度線上分析儀, 線上監測 水中 導電度
產品介紹
High Performance Design 高效能感測技術
These enhanced performance sensors are manufactured to exacting tolerances using high quality, rugged materials for demanding applications including ultra-pure water, clean-in-place (CIP), and boiler/condensate monitoring. Each sensor is tested to determine its unique, absolute four-digit cell constant. Also, each sensor has a Pt 1000 RTD temperature element built into its tip for exceptionally fast response to changes in temperature with ±0.1ºC accuracy.  高效能感測器採用高品質、堅固耐用的材料,以嚴格的公差製造而成,適用於包括超純水、原位清洗 (CIP) 和鍋爐/冷凝水監測在內的嚴苛應用。每個感測器都經過測試,以確定其獨特的四位數絕對電池常數。此外,每個感測器的頂端都內建 Pt 1000 RTD 溫度元件,可對溫度變化做出極為快速的反應,精準度高達 ±0.1ºC。

Resistivity and Conductivity Measurement Capability  電阻率和導電度測量能力
These enhanced performance sensors measure from theoretically pure water (0.057 µS/cm or 18.2 MΩ) up to 200,000 µS/cm. Hach’s sc Digital Controllers accept multiple digital sensor inputs, and can be user-set to measure conductivity, resistivity,TDS, salinity, or one of six calculated measurements.  此系列高效能感測器可測量從理論上的純水(0.057 µS/cm 或 18.2 MΩ)到 200,000 µS/cm 的各種導電度。Hach SC系列數位控制器可連接多個數位感測器,並可由使用者設定為測量導電度、電阻率、總溶解固體 (TDS)、鹽度或六種計算測量值之一。

Versatile Mounting Styles 多種靈活安裝方式
High pressure and high temperature sensors are designed for monitoring boiler water and condensate in return lines. They have 316 stainless steel electrodes and threaded bodies (3/4-inch male NPT). They can be fastened into a boiler wall using a 3/4-inch weldolet or mounted into a process line using a standard 3/4-inch stainless pipe tee.  高壓高溫感測器設計用於監測鍋爐回水管路中的水和冷凝水。

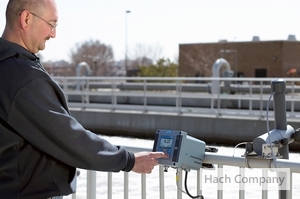

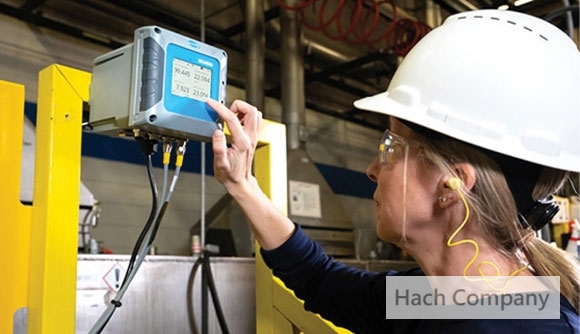

Full-Featured “Plug and Play” Hach sc Digital Controllers  直接連接數位控制器即可使用
There are no complicated wiring or set up procedures with any Hach sc controller. Just plug in any combination of Hach digital sensors and it's ready to use—it’s “plug and play.” Hach sc 控制器無需複雜的接線或設定步驟。只需連接至Hach 數位感測器即可立即使用。
