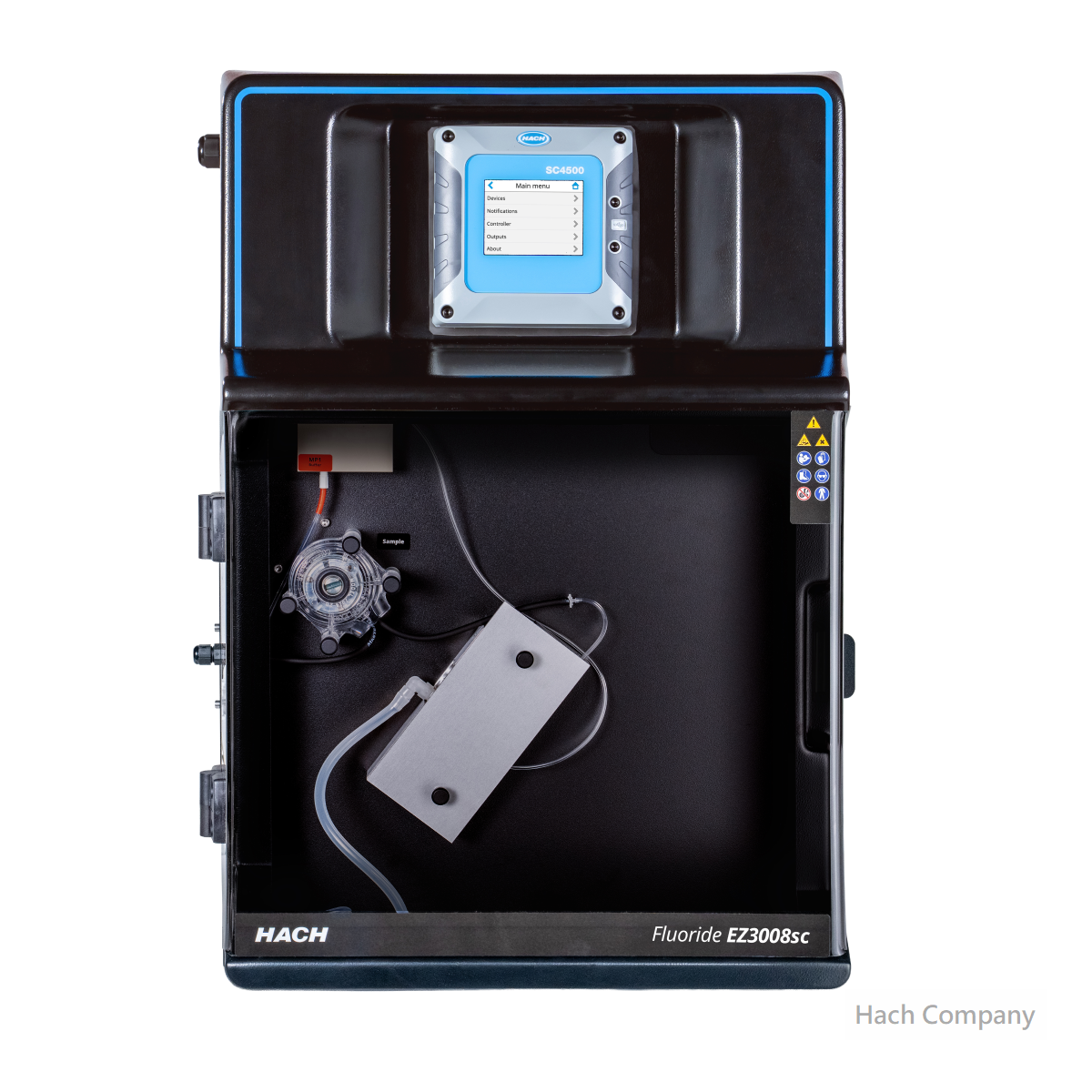

水中氟離子分析儀 EZ3008sc Fluoride Ion-Selective Electrode (ISE) Analyzer, 1 stream, 4x mA
產品編號：EZ3008.9700140T
Fluoride Monitoring for Operational Stability
EZ3008sc 氟離子線上分析儀採用間歇式離子選擇性電極 (ISE) 分析，並結合溫控讀數，可自動測量水中氟化物，獲得可靠且可重複的監測數據。凝膠填充式 ISE 技術無需補充電解液，減少日常成本，協助降低整體成本。
"Stable fluoride control is essential in drinking water and surface-water treatment, but manual sampling can be labor intensive and introduce variability. The EZ3008sc automates fluoride measurement using discontinuous ISE analysis with temperature-controlled readings for dependable, repeatable data. Gel-filled ISE technology eliminates electrolyte refilling, reducing routine service and helping lower total cost of ownership.
多水樣流功能、可選配的瞬時採樣功能（用於現場檢查）以及與 SCADA/PLC/DCS 系統無縫整合，可提供連續的監測數據和診斷資訊，進而確保合規準確度並加強過程控制。
With multi-stream capability, optional grab sampling for spot checks, and seamless integration into SCADA/PLC/DCS, the analyzer provides continuous results and diagnostics for confident compliance reporting and tighter process control.
Parameter 分析參數 : Fluoride
Certifications 認證 : CE, ETL certified to UL and CSA safety standards, UKCA
Measurement method 量測方法 : Discontinuous, direct measurement by combined Ion-Selective Electrode
Range 量測範圍 :
0.05 - 2.5 mg/L F-
0.1 - 5 mg/L F-
0.2 - 10 mg/L F-
Lower Limit of Detection (LOD) :
0.05 - 2.5 mg/L F-: 0.05 mg/L
0.1 - 5 mg/L F-: 0.1 mg/L
0.2 - 10 mg/L F-: 0.2 mg/L
Precision : Better than 2% full scale range for standard test solutions
Sample Flow Rate : 100 - 300 mL/min
Sample Pressure By external overflow vessel (open to atmospheric pressure)
Sample Quality : Maximum particle size 100 µm, < 0.1 g/L; Turbidity < 50 NTU
Sample Temperature : 50 - 86 °F (10 - 30 °C)
Cycle Time :
Default: 5 minutes
Continuous: 5 minutes
Number of sample streams : Standard: 1
Optional accessory for 2, 4, or 8 sample streams
Instrument Air : Dry and oil free according to ISA-S7.0.01-1996 quality standard for instrument air. Used to flush the instrument in corrosive environment. Min. 0.2 bar - Max. 0.5 bar
Protection Class 防護等級 : IP44
Automatic cleaning 自動清潔 : Yes; Frequency freely programmable: 6 hours, 12 hours, daily, weekly
Calibration 校正 : Automatic; 2-point; Frequency freely programmable: 6 hours, 12 hours, daily, weekly. Note: manufacturer recommends that a calibration is done when the reagents are replaced
Validation 驗證 : Automatic; Frequency freely programmable: 6 hours, 12 hours, daily, weekly
Analog Outputs 類比輸出 : Active 0 - 20 mA (or 4 - 20 mA) max. 500 Ohm load, standard 4, optional: 8
Digital Outputs 數位輸出 : Relays: 5 contacts, not user configurable: Malfunction, maintenance, analysis ready, sample ready, sample ready (EZ9150)
Ethernet Connections: Optional: Claros Ethernet connection and Modbus TCP/IP Ethernet connector; LAN version; 10/100 Mbps or Profinet or Ethernet IP
RS485 communication: Profibus DP or Modbus RTU
關鍵字 : 水中氟離子監測儀, 線上監測 水 氟離子濃度, Fluoride Analyzer
EZ3008sc 氟離子線上分析儀採用間歇式離子選擇性電極 (ISE) 分析，並結合溫控讀數，可自動測量水中氟化物，獲得可靠且可重複的監測數據。凝膠填充式 ISE 技術無需補充電解液，減少日常成本，協助降低整體成本。
"Stable fluoride control is essential in drinking water and surface-water treatment, but manual sampling can be labor intensive and introduce variability. The EZ3008sc automates fluoride measurement using discontinuous ISE analysis with temperature-controlled readings for dependable, repeatable data. Gel-filled ISE technology eliminates electrolyte refilling, reducing routine service and helping lower total cost of ownership.
多水樣流功能、可選配的瞬時採樣功能（用於現場檢查）以及與 SCADA/PLC/DCS 系統無縫整合，可提供連續的監測數據和診斷資訊，進而確保合規準確度並加強過程控制。
With multi-stream capability, optional grab sampling for spot checks, and seamless integration into SCADA/PLC/DCS, the analyzer provides continuous results and diagnostics for confident compliance reporting and tighter process control.
Parameter 分析參數 : Fluoride
Certifications 認證 : CE, ETL certified to UL and CSA safety standards, UKCA
Measurement method 量測方法 : Discontinuous, direct measurement by combined Ion-Selective Electrode
Range 量測範圍 :
0.05 - 2.5 mg/L F-
0.1 - 5 mg/L F-
0.2 - 10 mg/L F-
Lower Limit of Detection (LOD) :
0.05 - 2.5 mg/L F-: 0.05 mg/L
0.1 - 5 mg/L F-: 0.1 mg/L
0.2 - 10 mg/L F-: 0.2 mg/L
Precision : Better than 2% full scale range for standard test solutions
Sample Flow Rate : 100 - 300 mL/min
Sample Pressure By external overflow vessel (open to atmospheric pressure)
Sample Quality : Maximum particle size 100 µm, < 0.1 g/L; Turbidity < 50 NTU
Sample Temperature : 50 - 86 °F (10 - 30 °C)
Cycle Time :
Default: 5 minutes
Continuous: 5 minutes
Number of sample streams : Standard: 1
Optional accessory for 2, 4, or 8 sample streams
Instrument Air : Dry and oil free according to ISA-S7.0.01-1996 quality standard for instrument air. Used to flush the instrument in corrosive environment. Min. 0.2 bar - Max. 0.5 bar
Protection Class 防護等級 : IP44
Automatic cleaning 自動清潔 : Yes; Frequency freely programmable: 6 hours, 12 hours, daily, weekly
Calibration 校正 : Automatic; 2-point; Frequency freely programmable: 6 hours, 12 hours, daily, weekly. Note: manufacturer recommends that a calibration is done when the reagents are replaced
Validation 驗證 : Automatic; Frequency freely programmable: 6 hours, 12 hours, daily, weekly
Analog Outputs 類比輸出 : Active 0 - 20 mA (or 4 - 20 mA) max. 500 Ohm load, standard 4, optional: 8
Digital Outputs 數位輸出 : Relays: 5 contacts, not user configurable: Malfunction, maintenance, analysis ready, sample ready, sample ready (EZ9150)
Ethernet Connections: Optional: Claros Ethernet connection and Modbus TCP/IP Ethernet connector; LAN version; 10/100 Mbps or Profinet or Ethernet IP
RS485 communication: Profibus DP or Modbus RTU
關鍵字 : 水中氟離子監測儀, 線上監測 水 氟離子濃度, Fluoride Analyzer
Stable Performance in Changing Conditions 在不斷變化的環境中保持穩定水質監測效能
The EZ3008sc delivers temperature controlled, discontinuous fluoride measurements with multi stream capability. Operators get stable, reliable data during process fluctuations, reducing manual checks and adjustments while maintaining confident day to day water quality control.
The EZ3008sc delivers temperature controlled, discontinuous fluoride measurements with multi stream capability. Operators get stable, reliable data during process fluctuations, reducing manual checks and adjustments while maintaining confident day to day water quality control.
Reduced Maintenance and Service Costs 降低日常維護和服務成本
Designed for long-term operation, the analyzer uses gel-filled ion-selective electrodes that eliminate the need for electrolyte refilling. This technology reduces reagent consumption, routine service interventions, maximizes analyzer uptime, and lowers the total cost of ownership over the instrument’s lifetime. 專門為長期運行而設計，採用凝膠填充的離子選擇性電極，無需補充電解液。這項技術可減少試劑消耗和日常維護量，大幅延長分析儀的正常運作時間，並降低儀器整個生命週期的總擁有成本。
Designed for long-term operation, the analyzer uses gel-filled ion-selective electrodes that eliminate the need for electrolyte refilling. This technology reduces reagent consumption, routine service interventions, maximizes analyzer uptime, and lowers the total cost of ownership over the instrument’s lifetime. 專門為長期運行而設計，採用凝膠填充的離子選擇性電極，無需補充電解液。這項技術可減少試劑消耗和日常維護量，大幅延長分析儀的正常運作時間，並降低儀器整個生命週期的總擁有成本。
Flexible Connectivity for Legacy and Modern Platforms 適用於傳統和現代平台的靈活連接
Integrate seamlessly into existing PLC, SCADA, DCS and plant network architectures with a built-in industrial panel PC. Real-time data transmission provides immediate visibility into diagnostics and status, enabling faster responses and improved decision-making across your facility. 內建工業級面板電腦，可無縫整合到現有的 PLC、SCADA、DCS 和工廠網路架構中。即時資料傳輸可即時顯示儀器診斷結果和狀態，進而加快反應速度，並提升相關廠區水務的決策能力。
Integrate seamlessly into existing PLC, SCADA, DCS and plant network architectures with a built-in industrial panel PC. Real-time data transmission provides immediate visibility into diagnostics and status, enabling faster responses and improved decision-making across your facility. 內建工業級面板電腦，可無縫整合到現有的 PLC、SCADA、DCS 和工廠網路架構中。即時資料傳輸可即時顯示儀器診斷結果和狀態，進而加快反應速度，並提升相關廠區水務的決策能力。
Flexible Analysis for Multiple Streams 可同時進行多水樣流的靈活分析
Conduct quick spot checks and investigations without interrupting routine monitoring using built-in grab sampling. When combined with the optional 8-channel sample stream, one analyzer sequentially measures multiple process points: maximizing asset utilization and coverage while simplifying your system architecture. 利用內建的抓取採樣功能，無需中斷日常監測即可進行快速的現場檢查和調查。若結合 8 通道採水樣流(可選配)一起使用，一台分析儀可以按順序監測多個過程點：大幅提高設備資產利用率和涵蓋範圍，同時簡化系統架構。
Conduct quick spot checks and investigations without interrupting routine monitoring using built-in grab sampling. When combined with the optional 8-channel sample stream, one analyzer sequentially measures multiple process points: maximizing asset utilization and coverage while simplifying your system architecture. 利用內建的抓取採樣功能，無需中斷日常監測即可進行快速的現場檢查和調查。若結合 8 通道採水樣流(可選配)一起使用，一台分析儀可以按順序監測多個過程點：大幅提高設備資產利用率和涵蓋範圍，同時簡化系統架構。
