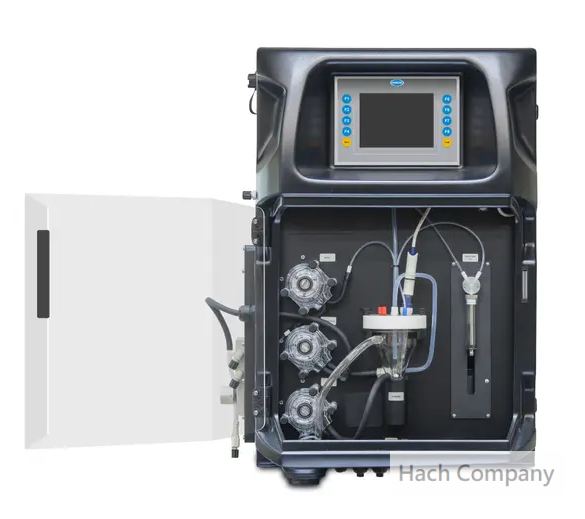

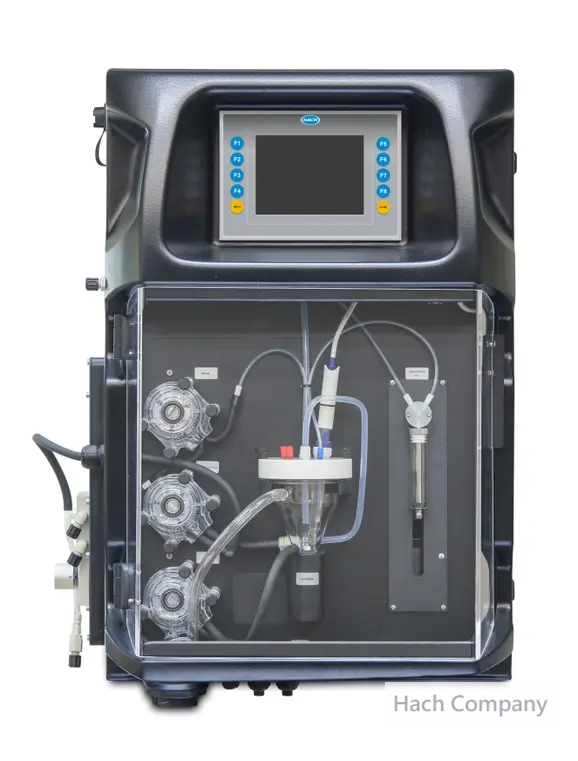

水中氯離子分析儀 EZ3505sc Chloride Ion-Selective Electrode (ISE) Standard Addition Analyzer, 1 stream, 4x mA
產品編號：EZ3505.9700140T
Accurate Chloride Measurement in Variable Water Matrices
精確測量多變的水基質中的氯化物濃度
Changing water matrices, fouling and interferences can make chloride ISE measurements unstable. The EZ3505sc combines discontinuous ISE analysis with a standard addition method to compensate for matrix effects and deliver repeatable chloride results—even when sample conditions shift. Automated operation reduces manual calibration and sensor maintenance while supporting treatment efficiency and regulatory compliance.
水基質的變化、結垢和干擾會導致氯離子選擇性電極 (ISE) 測量的不穩定性。 EZ3505sc 結合間歇式 ISE 分析和標準添加法，可補償基質效應，即使在水樣條件變化的情況下也能提供可重複的氯化物監測數據。自動化操作減少手動校正和感測器維護工作量，同時提高處理效率並符合法規要求。
Monitor up to eight sample streams from one analyzer to reduce footprint and infrastructure cost. Standard analog and digital communications integrate easily with existing plant networks for real-time data, diagnostics and faster decisions.
一台分析儀即可監測多達8個水樣流，減少佔地面積和基礎設施成本。標準的類比和數位通訊可輕鬆整合到現有廠區網路中，達到即時監測數據、儀器診斷和快速反應採取應變決策。
Benefits:
- Standard addition compensates for interferences in variable matrices 標準加法可補償不同基質中的干擾
- Discontinuous ISE analysis delivers stable, repeatable chloride results
- Reduces manual calibration and sensor maintenance 減少手動校正和感測器維護
- Multi-stream capability: up to 8 sample points per analyzer
- Easy integration via common analog/digital protocols 透過通用類比/數位協定輕鬆整合
Certifications 認證 : CE, ETL certified to UL and CSA safety standards, UKCA
Measurement method 量測方法 : Discontinuous, direct measurement by combined Ion-Selective Electrode with standard addition
Range 量測範圍 :
No dilution
2 - 100 mg/L Cl-
5 - 250 mg/L Cl-
10 - 500 mg/L Cl-
20 - 1000 mg/L Cl-
Internal dilution
100 - 5000 mg/L Cl-
200 - 10000 mg/L Cl-
Lower Limit of Detection (LOD) :
No dilution
2 - 100 mg/L Cl-: 2 mg/L
5 - 250 mg/L Cl-: 5 mg/L
10 - 500 mg/L Cl-: 10 mg/L
20 - 1000 mg/L Cl-: 20 mg/L
Internal dilution
100 - 5000 mg/L Cl-: 100 mg/L
200 - 10000 mg/L Cl-: 200 mg/L
Precision : Better than 2% full scale range for standard test solutions
Sample Flow Rate : 100 - 300 mL/min
Sample Pressure : By external overflow vessel (open to atmospheric pressure)
Sample Quality : Maximum particle size 100 µm, < 0.1 g/L; Turbidity < 50 NTU
Cycle Time :
No dilution
Default: 5 minutes
Continuous: 4 minutes
Internal dilution
Default: 10 minutes
Continuous: 7 minutes
Calibration 校正 : Automatic; 2-point; offset or slope; Frequency freely programmable: 6 hours, 12 hours, daily, weekly. Note: manufacturer recommends that a calibration is done when the reagents are replaced
Validation 驗證 : Automatic; Frequency freely programmable: 6 hours, 12 hours, daily, weekly
Automatic cleaning : Yes; Frequency freely programmable: 6 hours, 12 hours, daily, weekly
Instrument Air : Dry and oil free according to ISA-S7.0.01-1996 quality standard for instrument air. Used to flush the instrument in corrosive environment. Min. 0.2 bar - Max. 0.5 bar
Number of sample streams 水樣流 : Standard: 1
Optional accessory for 2, 4, or 8 sample streams
Protection Class : IP44
Analog Outputs 類比輸出 : Active 0 - 20 mA (or 4 - 20 mA) max. 500 Ohm load, standard 4, optional: 8
Digital Outputs 數位輸出 : Relays: 5 contacts, not user configurable: Malfunction, maintenance, analysis ready, sample ready, sample ready (EZ9150)
Ethernet Connections: Optional: Claros Ethernet connection and Modbus TCP/IP Ethernet connector; LAN version; 10/100 Mbps or Profinet or Ethernet IP
RS485 communication: Profibus DP or Modbus RTU
關鍵字 : 氯化物 濃度 分析, 水中氯化物分析儀, 水 氯 監測儀, Chloride sensor, Chloride analyzer,
精確測量多變的水基質中的氯化物濃度
Changing water matrices, fouling and interferences can make chloride ISE measurements unstable. The EZ3505sc combines discontinuous ISE analysis with a standard addition method to compensate for matrix effects and deliver repeatable chloride results—even when sample conditions shift. Automated operation reduces manual calibration and sensor maintenance while supporting treatment efficiency and regulatory compliance.
水基質的變化、結垢和干擾會導致氯離子選擇性電極 (ISE) 測量的不穩定性。 EZ3505sc 結合間歇式 ISE 分析和標準添加法，可補償基質效應，即使在水樣條件變化的情況下也能提供可重複的氯化物監測數據。自動化操作減少手動校正和感測器維護工作量，同時提高處理效率並符合法規要求。
Monitor up to eight sample streams from one analyzer to reduce footprint and infrastructure cost. Standard analog and digital communications integrate easily with existing plant networks for real-time data, diagnostics and faster decisions.
一台分析儀即可監測多達8個水樣流，減少佔地面積和基礎設施成本。標準的類比和數位通訊可輕鬆整合到現有廠區網路中，達到即時監測數據、儀器診斷和快速反應採取應變決策。
Benefits:
- Standard addition compensates for interferences in variable matrices 標準加法可補償不同基質中的干擾
- Discontinuous ISE analysis delivers stable, repeatable chloride results
- Reduces manual calibration and sensor maintenance 減少手動校正和感測器維護
- Multi-stream capability: up to 8 sample points per analyzer
- Easy integration via common analog/digital protocols 透過通用類比/數位協定輕鬆整合
Certifications 認證 : CE, ETL certified to UL and CSA safety standards, UKCA
Measurement method 量測方法 : Discontinuous, direct measurement by combined Ion-Selective Electrode with standard addition
Range 量測範圍 :
No dilution
2 - 100 mg/L Cl-
5 - 250 mg/L Cl-
10 - 500 mg/L Cl-
20 - 1000 mg/L Cl-
Internal dilution
100 - 5000 mg/L Cl-
200 - 10000 mg/L Cl-
Lower Limit of Detection (LOD) :
No dilution
2 - 100 mg/L Cl-: 2 mg/L
5 - 250 mg/L Cl-: 5 mg/L
10 - 500 mg/L Cl-: 10 mg/L
20 - 1000 mg/L Cl-: 20 mg/L
Internal dilution
100 - 5000 mg/L Cl-: 100 mg/L
200 - 10000 mg/L Cl-: 200 mg/L
Precision : Better than 2% full scale range for standard test solutions
Sample Flow Rate : 100 - 300 mL/min
Sample Pressure : By external overflow vessel (open to atmospheric pressure)
Sample Quality : Maximum particle size 100 µm, < 0.1 g/L; Turbidity < 50 NTU
Cycle Time :
No dilution
Default: 5 minutes
Continuous: 4 minutes
Internal dilution
Default: 10 minutes
Continuous: 7 minutes
Calibration 校正 : Automatic; 2-point; offset or slope; Frequency freely programmable: 6 hours, 12 hours, daily, weekly. Note: manufacturer recommends that a calibration is done when the reagents are replaced
Validation 驗證 : Automatic; Frequency freely programmable: 6 hours, 12 hours, daily, weekly
Automatic cleaning : Yes; Frequency freely programmable: 6 hours, 12 hours, daily, weekly
Instrument Air : Dry and oil free according to ISA-S7.0.01-1996 quality standard for instrument air. Used to flush the instrument in corrosive environment. Min. 0.2 bar - Max. 0.5 bar
Number of sample streams 水樣流 : Standard: 1
Optional accessory for 2, 4, or 8 sample streams
Protection Class : IP44
Analog Outputs 類比輸出 : Active 0 - 20 mA (or 4 - 20 mA) max. 500 Ohm load, standard 4, optional: 8
Digital Outputs 數位輸出 : Relays: 5 contacts, not user configurable: Malfunction, maintenance, analysis ready, sample ready, sample ready (EZ9150)
Ethernet Connections: Optional: Claros Ethernet connection and Modbus TCP/IP Ethernet connector; LAN version; 10/100 Mbps or Profinet or Ethernet IP
RS485 communication: Profibus DP or Modbus RTU
關鍵字 : 氯化物 濃度 分析, 水中氯化物分析儀, 水 氯 監測儀, Chloride sensor, Chloride analyzer,
Advanced Standard Addition Technology 標準添加技術
Ensure reliable data accuracy with advanced discontinuous and standard addition modes. This feature automatically compensates for interferences, delivering precise results even in complex or changing water conditions. Avoid compliance risks caused by inconsistent or unreliable measurements. 採用先進的間歇式添加和標準添加模式，確保數據準確可靠。此功能可自動補償干擾，即使在複雜或變化的水質條件下也能提供精確的結果。避免因測量結果不一致或不可靠而導致的合規風險。
Ensure reliable data accuracy with advanced discontinuous and standard addition modes. This feature automatically compensates for interferences, delivering precise results even in complex or changing water conditions. Avoid compliance risks caused by inconsistent or unreliable measurements. 採用先進的間歇式添加和標準添加模式，確保數據準確可靠。此功能可自動補償干擾，即使在複雜或變化的水質條件下也能提供精確的結果。避免因測量結果不一致或不可靠而導致的合規風險。
Designed for Low-Maintenance Operation 專門為低維護工作量操作而設計
Frequent manual calibration and sensor cleaning increase maintenance effort and downtime. The EZ3505sc employs discontinuous and automated standard addition modes to compensate for matrix effects, stabilize potentiometric response, reduce reagent consumption, and maximize analyzer uptime for reliable chloride monitoring. 頻繁的手動校正和感測器清潔會增加維護工作量和停機時間。 EZ3505sc 分析儀採用間歇式添加和自動標準添加模式，可補償基質效應、穩定電位反應、減少試劑消耗並大幅延長分析儀的正常運行時間，進而穩定可靠的監測氯化物濃度。
Frequent manual calibration and sensor cleaning increase maintenance effort and downtime. The EZ3505sc employs discontinuous and automated standard addition modes to compensate for matrix effects, stabilize potentiometric response, reduce reagent consumption, and maximize analyzer uptime for reliable chloride monitoring. 頻繁的手動校正和感測器清潔會增加維護工作量和停機時間。 EZ3505sc 分析儀採用間歇式添加和自動標準添加模式，可補償基質效應、穩定電位反應、減少試劑消耗並大幅延長分析儀的正常運行時間，進而穩定可靠的監測氯化物濃度。
Seamless System Integration 無縫系統整合
Isolated data silos hinder effective plant management. Featuring standard analogue and digital communication protocols, this analyzer integrates easily into existing plant networks. Real-time visibility ensures you can make informed decisions quickly based on current process conditions. EZ3505sc 分析儀採用標準的類比和數位通訊，可輕鬆整合到您現有廠區內網路。即時可見度讓操作和管理人員能夠根據當下的製程條件快速做出明智的應對決策。
Isolated data silos hinder effective plant management. Featuring standard analogue and digital communication protocols, this analyzer integrates easily into existing plant networks. Real-time visibility ensures you can make informed decisions quickly based on current process conditions. EZ3505sc 分析儀採用標準的類比和數位通訊，可輕鬆整合到您現有廠區內網路。即時可見度讓操作和管理人員能夠根據當下的製程條件快速做出明智的應對決策。
Cost-Effective Scalability 經濟高效率可擴充性
Monitoring multiple sample points traditionally requires significant capital investment. This system supports multi-stream functionality, allowing a single unit to analyze up to 8 sample streams. You gain comprehensive process insight while optimizing infrastructure costs and reducing equipment footprint.傳統上，監控多個採樣點需要大量的資本投入。此分析儀系統支援多水樣流功能，能夠單一儀器分析多達 8 個採樣流(選配)。操作和管理人員能夠掌握全面的流程，同時優化基礎設施成本並減少設備佔地面積。
Monitoring multiple sample points traditionally requires significant capital investment. This system supports multi-stream functionality, allowing a single unit to analyze up to 8 sample streams. You gain comprehensive process insight while optimizing infrastructure costs and reducing equipment footprint.傳統上，監控多個採樣點需要大量的資本投入。此分析儀系統支援多水樣流功能，能夠單一儀器分析多達 8 個採樣流(選配)。操作和管理人員能夠掌握全面的流程，同時優化基礎設施成本並減少設備佔地面積。
