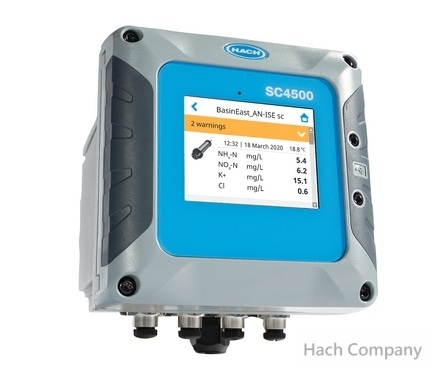

通用控制器 SC4500 Controller, Prognosys, Modbus RS, 1 analog UPW pH/ORP, 1 analog UPW Conductivity Sensor, 100-240 VAC
產品編號：LXV525.99A13761
Ready for Now. Ready for the Future. 邁向數位時代的水質控制器
Digital controller for up to two compatible instruments. 可連接最多兩支相容感測器的數位控制器
Technologies are advancing rapidly, providing new levels of convenience, accuracy, and efficiency. Which is exactly why the SC4500 Controller from HachⓇ is designed to integrate easily into your current system while allowing you to upgrade as your capabilities advance, without having to replace inventory. With a wide range of analog and digital connectivity options and the availability of intelligent instrument and data management features, the SC4500 unlocks the future, today.
SC4500 控制器輕鬆整合到您現有的系統中。多種的類比和數位連接選項以及智慧化的儀器和數據管理功能。
Description : Microprocessor-controlled and menu-driven controller that operates the sensor
Compliance Certifications : CE. ETL certified to UL and CSA safety standards (with all sensor types), FCC, ISED, KC, RCM, EAC, UKCA, SABS, C م (Morocco)
Sensor Input #1 : Analog UPW pH/ORP
Sensor Input #2 : Analog UPW Conductivity
Software available : Non-Claros + Embedded Prognosys
USB Port : Used for data download and software upload. The controller records approximately 20,000 data points for each connected sensor.
Network Connectivity : LAN: Two Ethernet connectors (10/100 Mbps)
Cellular: External 4G
Wi-Fi
Compatible Network Technologies : GSM 3G/4G (e.g. AT&T, T-Mobile, Rogers, Vodafone etc.)
CDMA (e.g. Verizon)
Outputs Modbus : RS232/RS485
Enclosure Rating : UL50E type 4X, IEC/EN 60529–IP 66, NEMA 250 type 4X
Metal enclosure with a corrosion-resistant finish
Protection Class : I, connected to protective earth
Pollution Degree : 4
Digital controller for up to two compatible instruments. 可連接最多兩支相容感測器的數位控制器
Technologies are advancing rapidly, providing new levels of convenience, accuracy, and efficiency. Which is exactly why the SC4500 Controller from HachⓇ is designed to integrate easily into your current system while allowing you to upgrade as your capabilities advance, without having to replace inventory. With a wide range of analog and digital connectivity options and the availability of intelligent instrument and data management features, the SC4500 unlocks the future, today.
SC4500 控制器輕鬆整合到您現有的系統中。多種的類比和數位連接選項以及智慧化的儀器和數據管理功能。
Description : Microprocessor-controlled and menu-driven controller that operates the sensor
Compliance Certifications : CE. ETL certified to UL and CSA safety standards (with all sensor types), FCC, ISED, KC, RCM, EAC, UKCA, SABS, C م (Morocco)
Sensor Input #1 : Analog UPW pH/ORP
Sensor Input #2 : Analog UPW Conductivity
Software available : Non-Claros + Embedded Prognosys
USB Port : Used for data download and software upload. The controller records approximately 20,000 data points for each connected sensor.
Network Connectivity : LAN: Two Ethernet connectors (10/100 Mbps)
Cellular: External 4G
Wi-Fi
Compatible Network Technologies : GSM 3G/4G (e.g. AT&T, T-Mobile, Rogers, Vodafone etc.)
CDMA (e.g. Verizon)
Outputs Modbus : RS232/RS485
Enclosure Rating : UL50E type 4X, IEC/EN 60529–IP 66, NEMA 250 type 4X
Metal enclosure with a corrosion-resistant finish
Protection Class : I, connected to protective earth
Pollution Degree : 4
Easy Adoption 輕鬆建置

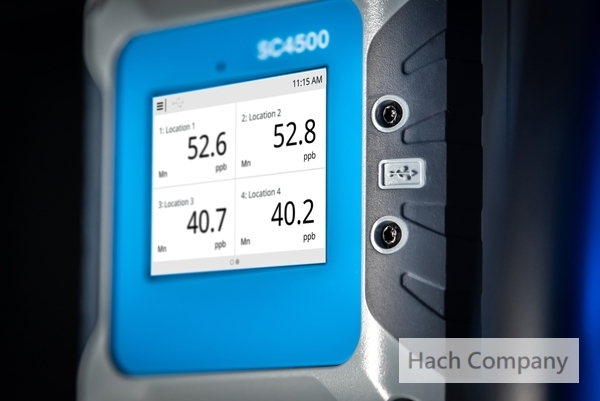

The familiar experience of a modern touchscreen, the ability to use your current Hach sensors, and the same footprint as the SC200, make installation and integration of the SC4500 Controller seamless. SC4500 控制器採用現代化的觸控式螢幕，操作簡單快捷，可與您現有的Hach 感測器相容，其尺寸與 SC200系列控制器相同，因此安裝和整合都非常輕鬆容易。
The familiar experience of a modern touchscreen, the ability to use your current Hach sensors, and the same footprint as the SC200, make installation and integration of the SC4500 Controller seamless. SC4500 控制器採用現代化的觸控式螢幕，操作簡單快捷，可與您現有的Hach 感測器相容，其尺寸與 SC200系列控制器相同，因此安裝和整合都非常輕鬆容易。
No Time for Downtime 避免停機
The SC4500's built-in predictive diagnostic software ensures measurement confidence and reduces the risk of unexpected equipment downtime by enabling proactive maintenance planning via MSM, including step-by-step instructions. 內建預測儀器診斷維護軟體可確保測量結果的可靠性，並透過 MSM（維護管理系統）提供主動維護計劃，包括逐步引導指示，進而降低儀器意外停機的風險。
The SC4500's built-in predictive diagnostic software ensures measurement confidence and reduces the risk of unexpected equipment downtime by enabling proactive maintenance planning via MSM, including step-by-step instructions. 內建預測儀器診斷維護軟體可確保測量結果的可靠性，並透過 MSM（維護管理系統）提供主動維護計劃，包括逐步引導指示，進而降低儀器意外停機的風險。
The Connectivity Options You Need 滿足您需求的多種通訊連線選項
The Controller is Smart Monitoring enabled and provides local communication to SCADA or a PLC. From analog and advanced digital protocols to Wi-Fi, cellular or LAN, the SC4500 gives you the flexibility to adapt in a rapidly changing world.
The Controller is Smart Monitoring enabled and provides local communication to SCADA or a PLC. From analog and advanced digital protocols to Wi-Fi, cellular or LAN, the SC4500 gives you the flexibility to adapt in a rapidly changing world.
