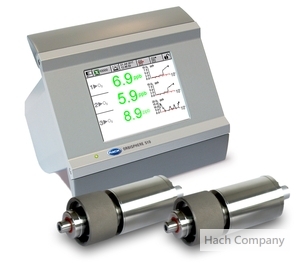

臭氧監測控制器 Orbisphere 410 Controller O₃ (EC)
產品編號：410C/P2C00000
The Orbisphere 410 Mono-Channel controller offers precise, powerful process monitoring capability. 單通道控制器提供精準、強大的過程監控功能
Designed to complement the Orbisphere high quality sensors these instruments provide accurate, repeatable trace level measurements and an impressive level of data management. 與 Orbisphere 高品質感測器配合，提供精確、可重複的微量測量以及優異的數據資料管理能力。 (Sensors sold separately.)
These controllers are designed for applications in the power generation, electronics, life sciences, beverage, chemical and water treatment industries.
專門為電廠、電子製造、生技製藥、飲料、化學和水處理等產業而設計
Do not hesitate to contact us to define the best configuration for your application.
Controller 控制器 : 410, Mono-channel
Parameter 分析參數 : O₃ (EC) 臭氧
Compliance Certifications :
EMC: EN61326-1:2006
CE: EN61010-1:2010
ETL, conforming to UL 61010-1 and CSA 22.2 No. 61010-1
Display : Color TFT touchscreen display
User Interface 使用介面 : Touch screen panel displays: concentration, trend graph, diagnostics, alarm status, historical data 觸控面板顯示：濃度、趨勢圖、診斷、警示狀態、歷史數據
Data Storage 數據儲存 : Rolling buffer or store once mode for up to 1000 measurements and 1000 operator actions
Holds calibration records for last 50 calibrations
Password Protection 密碼保護 : 5 levels of authorized access to configuration and data management
Units :
• Gas concentration: Configurable for gas or liquid phase with multiple unit options 可配置用於氣相或液相，並提供多種選項
• Pressure : External and barometric pressure with multiple unit options
• Temperature : Sample temperature with unit options (K, °C, °F)
Compatible Instruments 相容感測器 : Channel 1 : 313xx sensor or C1100 sensor
Measurements : Resolution, accuracy and response time are determined by sensor 依照搭配感測器規格而定
關鍵字 : 純水 臭氧 監測, 純水 O3 分析, 電廠 純水 臭氧 監測儀, 製藥 純水 臭氧 監測, O3 analyzer
Designed to complement the Orbisphere high quality sensors these instruments provide accurate, repeatable trace level measurements and an impressive level of data management. 與 Orbisphere 高品質感測器配合，提供精確、可重複的微量測量以及優異的數據資料管理能力。 (Sensors sold separately.)
These controllers are designed for applications in the power generation, electronics, life sciences, beverage, chemical and water treatment industries.
專門為電廠、電子製造、生技製藥、飲料、化學和水處理等產業而設計
Do not hesitate to contact us to define the best configuration for your application.
Controller 控制器 : 410, Mono-channel
Parameter 分析參數 : O₃ (EC) 臭氧
Compliance Certifications :
EMC: EN61326-1:2006
CE: EN61010-1:2010
ETL, conforming to UL 61010-1 and CSA 22.2 No. 61010-1
Display : Color TFT touchscreen display
User Interface 使用介面 : Touch screen panel displays: concentration, trend graph, diagnostics, alarm status, historical data 觸控面板顯示：濃度、趨勢圖、診斷、警示狀態、歷史數據
Data Storage 數據儲存 : Rolling buffer or store once mode for up to 1000 measurements and 1000 operator actions
Holds calibration records for last 50 calibrations
Password Protection 密碼保護 : 5 levels of authorized access to configuration and data management
Units :
• Gas concentration: Configurable for gas or liquid phase with multiple unit options 可配置用於氣相或液相，並提供多種選項
• Pressure : External and barometric pressure with multiple unit options
• Temperature : Sample temperature with unit options (K, °C, °F)
Compatible Instruments 相容感測器 : Channel 1 : 313xx sensor or C1100 sensor
Measurements : Resolution, accuracy and response time are determined by sensor 依照搭配感測器規格而定
關鍵字 : 純水 臭氧 監測, 純水 O3 分析, 電廠 純水 臭氧 監測儀, 製藥 純水 臭氧 監測, O3 analyzer
Easy to use, intuitive software using clear, full color touch-screen
All functions of Orbisphere 410 instruments are accessed through the color, touch screen.This screen acts as display and keyboard.
All functions of Orbisphere 410 instruments are accessed through the color, touch screen.This screen acts as display and keyboard.
Internal diagnostics and reminders for maintenance and calibration
To ensure continuous high performance and simplify maintenance, Orbisphere 510 instruments offer a number of diagnostic features.
Notification that calibration is due—ensures QC procedural compliance
Notification that a sensor service is due—optimal preventative maintenance planning
Sensor service diagnostics—minimizes downtime
System alarms transmitted through analog output—continuous status indication
To ensure continuous high performance and simplify maintenance, Orbisphere 510 instruments offer a number of diagnostic features.
Notification that calibration is due—ensures QC procedural compliance
Notification that a sensor service is due—optimal preventative maintenance planning
Sensor service diagnostics—minimizes downtime
System alarms transmitted through analog output—continuous status indication
Easy to use and reliable
Orbisphere 410 instruments are designed for ease of use. After simple installation, the system is measuring your process in minutes. Simple menus allow you to rapidly create a specific configuration for the instrument. The main measurement window continuously displays real time process readings, graphed sensor trends (user selectable from last 1 minute to last 1 hour), alarm limits, temperature and event occurrence.
Orbisphere 410 instruments are designed for ease of use. After simple installation, the system is measuring your process in minutes. Simple menus allow you to rapidly create a specific configuration for the instrument. The main measurement window continuously displays real time process readings, graphed sensor trends (user selectable from last 1 minute to last 1 hour), alarm limits, temperature and event occurrence.
Multiple communication options including USB and Profibus
Digital communication uses industry standard protocols including Profibus and USB in addition to traditional analog outputs and alarm relays. These may all be configured in terms of function, content and behavior.
Digital communication uses industry standard protocols including Profibus and USB in addition to traditional analog outputs and alarm relays. These may all be configured in terms of function, content and behavior.
Data Storage
Data storage of up to 10000 measurements, last 1000 operator actions and details of last 50 calibrations
Data storage of up to 10000 measurements, last 1000 operator actions and details of last 50 calibrations
