光學法溶氧控制器 Orbisphere 410M Controller O₂ (LDO), 0/4-20mA, RS485
產品編號：410M/P1C00000
Precise, Powerful Process monitoring 精準、強大的線上監控
The Hach Orbisphere 410 Mono-Channel Controller is a high accuracy instrument designed for the measurement of oxygen (LDO or EC), ozone (EC) or carbon dioxide (TC) by connecting the according Orbisphere high quality sensor.
Hach Orbisphere 410 單通道控制器為高精密度儀器，透過連接相應的 Orbisphere sensor 感測器，可測量氧氣（LDO 或 EC）、臭氧 (EC) 或二氧化碳 (TC)。

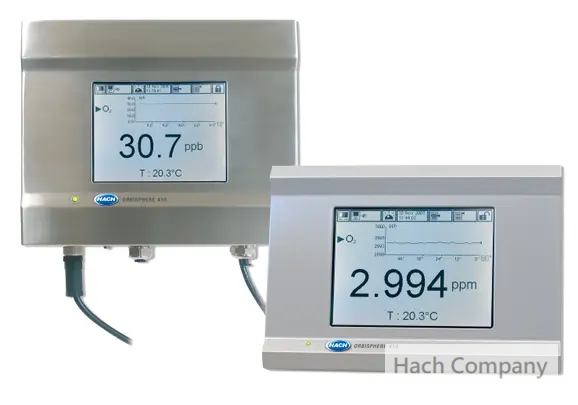

Depending on which version is best suited for your process, the Hach Orbisphere 410 controllers are available as wall-mount or panel-mount version for process and laboratory analysis.
壁掛式或面板式機款可供選擇，可根據您製程的需求進行選擇，適用於線上和實驗室分析。
The Data Management system keeps you up to date with important information such as trace level measurement data, operator actions and calibration details with the security of a software password protected, reducing the risk of errors in operation or configuration.
資料管理系統可讓您隨時掌握重要訊息，例如微量測量資料、操作人員操作和校正細節，並透過軟體密碼保護，降低操作或配置錯誤的風險。
Compatible Instruments 相容設備 : Channel 1: M1100 dissolved oxygen sensor
Measurements 量測 : Resolution, accuracy and response time are determined by sensor 根據感測器而定
Data Storage : Rolling buffer or store once mode for up to 1000 measurements and 1000 operator actions
Holds calibration records for last 50 calibrations
Compliance Certifications 認證 : EMC: EN61326-1:2006
CE: EN61010-1:2010
ETL, conforming to UL 61010-1 and CSA 22.2 No. 61010-1
Please do not hesitate to contact us to define the best configuration for your application.
關鍵字 : 溶氧 感測器 主機, 溶氧 監控器, 溶氧 線上 監測儀, dissolved oxygen analyzer,
The Hach Orbisphere 410 Mono-Channel Controller is a high accuracy instrument designed for the measurement of oxygen (LDO or EC), ozone (EC) or carbon dioxide (TC) by connecting the according Orbisphere high quality sensor.
Hach Orbisphere 410 單通道控制器為高精密度儀器，透過連接相應的 Orbisphere sensor 感測器，可測量氧氣（LDO 或 EC）、臭氧 (EC) 或二氧化碳 (TC)。
Depending on which version is best suited for your process, the Hach Orbisphere 410 controllers are available as wall-mount or panel-mount version for process and laboratory analysis.
壁掛式或面板式機款可供選擇，可根據您製程的需求進行選擇，適用於線上和實驗室分析。
The Data Management system keeps you up to date with important information such as trace level measurement data, operator actions and calibration details with the security of a software password protected, reducing the risk of errors in operation or configuration.
資料管理系統可讓您隨時掌握重要訊息，例如微量測量資料、操作人員操作和校正細節，並透過軟體密碼保護，降低操作或配置錯誤的風險。
Compatible Instruments 相容設備 : Channel 1: M1100 dissolved oxygen sensor
Measurements 量測 : Resolution, accuracy and response time are determined by sensor 根據感測器而定
Data Storage : Rolling buffer or store once mode for up to 1000 measurements and 1000 operator actions
Holds calibration records for last 50 calibrations
Compliance Certifications 認證 : EMC: EN61326-1:2006
CE: EN61010-1:2010
ETL, conforming to UL 61010-1 and CSA 22.2 No. 61010-1
Please do not hesitate to contact us to define the best configuration for your application.
關鍵字 : 溶氧 感測器 主機, 溶氧 監控器, 溶氧 線上 監測儀, dissolved oxygen analyzer,
Easy to use, intuitive software using clear, full colour touch-screen
容易使用、直覺式操作的軟體設計，搭配清晰的彩色觸控螢幕
All functions of Orbisphere 410 instruments are accessed through the colour touch-screen. This screen acts as display and keyboard.
All functions of Orbisphere 410 instruments are accessed through the colour touch-screen. This screen acts as display and keyboard.
Internal diagnostics and reminders for maintenance and calibration
儀器內部診斷以及維護和校正提醒功能
To ensure continuous high performance and simplify maintenance, Orbisphere 410 instruments offer a number of diagnostic features: A notification that calibration is due ensures QC procedural compliance, a notification that a sensor service is due ensures optimal preventative maintenance planning. The sensor service diagnostics minimises downtime, and system alarms transmitted through analogue output provide continuous status indication.
Easy to use and reliable 容易使用 穩定可靠
Orbisphere 410 instruments are designed for ease of use. After simple installation, the system is measuring your process in minutes. Simple menus allow you to rapidly create a specific configuration for the instrument. The main measurement window continuously displays real time process readings, graphed sensor trends (user selectable from last 1 minute to last 1 hour), alarm limits, temperature and event occurrence.
Orbisphere 410 instruments are designed for ease of use. After simple installation, the system is measuring your process in minutes. Simple menus allow you to rapidly create a specific configuration for the instrument. The main measurement window continuously displays real time process readings, graphed sensor trends (user selectable from last 1 minute to last 1 hour), alarm limits, temperature and event occurrence.
Multiple communication options including USB and Profibus 多種通訊介面選項，包括 USB 和 Profibus
Digital communication uses industry standard protocols including Profibus and USB in addition to traditional analog outputs and alarm relays. These may all be configured in terms of function, content and behavior.
Digital communication uses industry standard protocols including Profibus and USB in addition to traditional analog outputs and alarm relays. These may all be configured in terms of function, content and behavior.
Data storage of up to 10000 measurements, last 1000 operator actions and details of last 50 calibrations.
