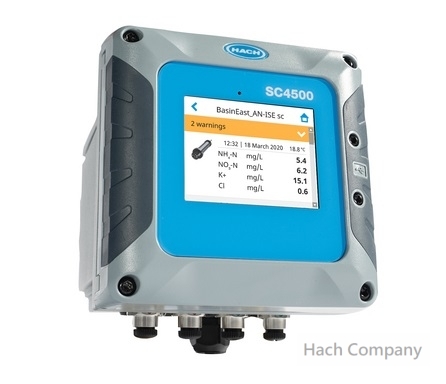

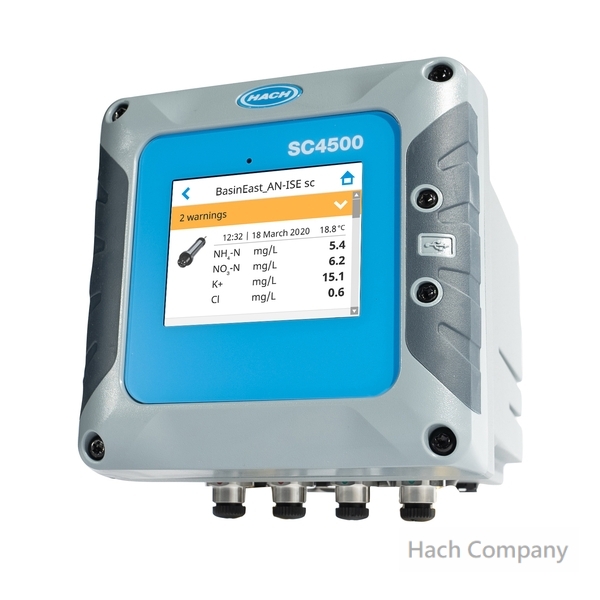

水質感測控制器 SC4500系列 Controllers
產品編號：
全新一代 SC4500 通用型控制器可輕鬆與您目前的儀器系統整合，並能夠隨著系統能力的提升而升級。透過諸多的類比和數位連接選項以及智能儀器和數據管理功能的可用性，SC4500 Controllers 協助您邁入智慧水質監測系統。
SC4500 通用型控制器可用於民生污水、自來水、污染源、地面水、工業過程水和工業廢污水等監測，尤其適用於智慧水務相關應用，達成高效率的水質監測和管理
*與 Hach 所有水質參數感測器 sensors 相容，例如 : 濁度、溶氧、pH、導電度、氨氮、硬度、餘氯總氯、硝酸鹽氮感測器等
Ready for Now. Ready for the Future. 邁向數位時代的水質控制器
Digital controller for up to two compatible instruments. 可連接最多兩支相容感測器的數位控制器
Technologies are advancing rapidly, providing new levels of convenience, accuracy, and efficiency. Which is exactly why the SC4500 Controller from HachⓇ is designed to integrate easily into your current system while allowing you to upgrade as your capabilities advance, without having to replace inventory. With a wide range of analog and digital connectivity options and the availability of intelligent instrument and data management features, the SC4500 unlocks the future, today.
SC4500 控制器輕鬆整合到您現有的系統中。豐富的類比和數位連接選項以及智慧化的儀器和數據管理功能。
There are many options available. Please contact us for more details. SC4500系列提供許多不同款式的型號, 歡迎您與我們聯繫以推薦適合您應用需求的數位控制器型號
Description : Microprocessor-controlled and menu-driven controller that operates the sensor
Compliance Certifications : CE. ETL certified to UL and CSA safety standards (with all sensor types), FCC, ISED, KC, RCM, EAC, UKCA, SABS, C م (Morocco)
Display : 3.5-inch TFT colour display with capacitive touchpad
Enclosure Rating : UL50E type 4X, IEC/EN 60529–IP 66, NEMA 250 type 4X
Metal enclosure with a corrosion-resistant finish
Indoor/Outdoor : Outdoor installation in direct sunlight or UV radiation requires UV protection screen and/or sunroof
Installation Category : Category II
Mounting : Wall, Pole, or Panel Mounting
Network Connectivity LAN: Two Ethernet connectors (10/100 Mbps)
Cellular: External 4G
Wi-Fi
Communication (optional) :
Analog:
Five 0-20 mA or 4-20 mA analog outputs on each analog output module
Up to two analog Input modules (0-20 mA or 4-20 mA). Each input module replaces a digital sensor input.
Digital:
Profibus DPV1 module
Modbus TCP
Profinet IO module
Ethernet IP module
Compatible Network Technologies :
GSM 3G/4G (e.g. AT&T, T-Mobile, Rogers, Vodafone etc.)
CDMA (e.g. Verizon)
關鍵字 : 溶氧 水質 控制器, 懸浮固體 水質 控制器, ph 水質 控制器, 氨氮 水質 控制器, 氯 水質 控制器, 濁度 水質 控制器, 水質 控制器, 水質 監控器, 水質感測器 線上控制主機
SC4500 通用型控制器可用於民生污水、自來水、污染源、地面水、工業過程水和工業廢污水等監測，尤其適用於智慧水務相關應用，達成高效率的水質監測和管理
*與 Hach 所有水質參數感測器 sensors 相容，例如 : 濁度、溶氧、pH、導電度、氨氮、硬度、餘氯總氯、硝酸鹽氮感測器等
Ready for Now. Ready for the Future. 邁向數位時代的水質控制器
Digital controller for up to two compatible instruments. 可連接最多兩支相容感測器的數位控制器
Technologies are advancing rapidly, providing new levels of convenience, accuracy, and efficiency. Which is exactly why the SC4500 Controller from HachⓇ is designed to integrate easily into your current system while allowing you to upgrade as your capabilities advance, without having to replace inventory. With a wide range of analog and digital connectivity options and the availability of intelligent instrument and data management features, the SC4500 unlocks the future, today.
SC4500 控制器輕鬆整合到您現有的系統中。豐富的類比和數位連接選項以及智慧化的儀器和數據管理功能。
There are many options available. Please contact us for more details. SC4500系列提供許多不同款式的型號, 歡迎您與我們聯繫以推薦適合您應用需求的數位控制器型號
Description : Microprocessor-controlled and menu-driven controller that operates the sensor
Compliance Certifications : CE. ETL certified to UL and CSA safety standards (with all sensor types), FCC, ISED, KC, RCM, EAC, UKCA, SABS, C م (Morocco)
Display : 3.5-inch TFT colour display with capacitive touchpad
Enclosure Rating : UL50E type 4X, IEC/EN 60529–IP 66, NEMA 250 type 4X
Metal enclosure with a corrosion-resistant finish
Indoor/Outdoor : Outdoor installation in direct sunlight or UV radiation requires UV protection screen and/or sunroof
Installation Category : Category II
Mounting : Wall, Pole, or Panel Mounting
Network Connectivity LAN: Two Ethernet connectors (10/100 Mbps)
Cellular: External 4G
Wi-Fi
Communication (optional) :
Analog:
Five 0-20 mA or 4-20 mA analog outputs on each analog output module
Up to two analog Input modules (0-20 mA or 4-20 mA). Each input module replaces a digital sensor input.
Digital:
Profibus DPV1 module
Modbus TCP
Profinet IO module
Ethernet IP module
Compatible Network Technologies :
GSM 3G/4G (e.g. AT&T, T-Mobile, Rogers, Vodafone etc.)
CDMA (e.g. Verizon)
關鍵字 : 溶氧 水質 控制器, 懸浮固體 水質 控制器, ph 水質 控制器, 氨氮 水質 控制器, 氯 水質 控制器, 濁度 水質 控制器, 水質 控制器, 水質 監控器, 水質感測器 線上控制主機
Easy Adoption輕鬆建置
The familiar experience of a modern touchscreen, the ability to use your current Hach sensors, and the same footprint as the SC200, make installation and integration of the SC4500 Controller seamless. SC4500 控制器採用現代化的觸控式螢幕，操作簡單快捷，可與您現有的Hach 感測器相容，其尺寸與 SC200系列控制器相同，因此安裝和整合都非常輕鬆。
The familiar experience of a modern touchscreen, the ability to use your current Hach sensors, and the same footprint as the SC200, make installation and integration of the SC4500 Controller seamless. SC4500 控制器採用現代化的觸控式螢幕，操作簡單快捷，可與您現有的Hach 感測器相容，其尺寸與 SC200系列控制器相同，因此安裝和整合都非常輕鬆。
No Time for Downtime 避免停機
The SC4500's built-in predictive diagnostic software ensures measurement confidence and reduces the risk of unexpected equipment downtime by enabling proactive maintenance planning via MSM, including step-by-step instructions. 內建預測儀器診斷維護軟體可確保測量結果的可靠性，並透過 MSM（維護管理系統）提供主動維護計劃，包括逐步引導指示，進而降低儀器意外停機的風險。
The SC4500's built-in predictive diagnostic software ensures measurement confidence and reduces the risk of unexpected equipment downtime by enabling proactive maintenance planning via MSM, including step-by-step instructions. 內建預測儀器診斷維護軟體可確保測量結果的可靠性，並透過 MSM（維護管理系統）提供主動維護計劃，包括逐步引導指示，進而降低儀器意外停機的風險。
The Connectivity Options You Need 滿足您需求的通訊連線選項
The Controller is Smart Monitoring enabled and provides local communication to SCADA or a PLC. From analog and advanced digital protocols to Wi-Fi, cellular or LAN, the SC4500 gives you the flexibility to adapt in a rapidly changing world.支援智慧監控，並可與 SCADA 或 PLC 進行本地通訊。從類比和數位協定到 Wi-Fi、LAN，為您提供靈活應對快速變化環境的方案。
The Controller is Smart Monitoring enabled and provides local communication to SCADA or a PLC. From analog and advanced digital protocols to Wi-Fi, cellular or LAN, the SC4500 gives you the flexibility to adapt in a rapidly changing world.支援智慧監控，並可與 SCADA 或 PLC 進行本地通訊。從類比和數位協定到 Wi-Fi、LAN，為您提供靈活應對快速變化環境的方案。
Compatible Instruments 相容線上水質感測器 :
Compatible Sensors and Analyzers / Software Version (Release Year)
Amtax sc / V2.30 (2018) or higher
A-ISE sc / V1.02 or higher
AN-ISE sc / V1.08 (2013) or higher
N-ISE sc / V1.02 or higher
Nitratax clear sc, Nitratax eco sc, Nitratax plus sc / V3.13 (2013) or higher
NT3100sc/NT3200sc
Phosphax sc / V2.30 (2018) or higher
Phosphax sc LR/MR/HR / V1.01 (2018) or higher
TSS sc / V41.73 (2013) or higher
Solitax sc / V2.20 (2013) or higher
TU5300sc, TU5400sc / V1.34 (2017) or higher
SS7 sc (in Bypass) / V1.01 (2006) or higher
Ultraturb sc / V3.06 (2017) or higher
1720E / V2.10 (2006) or higher
Sonatax sc / V1.15 (2016) or higher
CL17sc / V2.7 (2019) or higher
CL10sc / V1.14 (2013) or higher
9184sc, 9185sc, 9187sc* / V2.03 (2013) or higher
Uvas plus sc / V3.01 (2017) or higher
LDO 2 sc* / V1.22 (2013) or higher
3798sc* / V2.03 (2013) or higher
3700sc + Inductive Conductive Digital Gateway 6120800 / V3.00 (2017) or higher
3422sc, Analog 3400 + Contacting Cond. Digital Gateway 6120700 / V3.00 or higher
pHD sc*, pHD-S sc / V3.10 (2016) or higher
1200-S sc* / V2.04 (2013) or higher
pHD analog + Digital Gateway 6120500 / V3.00 (2017) or higher
RC and PC analog sensor + Digital Gateway for conventional analog pH and ORP sensors 6120600 / V3.00 (2017) or higher
8362sc* / V3.00 (2017) or higher
*Hardware Version1 of instrument is not supported
Compatible Sensors and Analyzers / Software Version (Release Year)
Amtax sc / V2.30 (2018) or higher
A-ISE sc / V1.02 or higher
AN-ISE sc / V1.08 (2013) or higher
N-ISE sc / V1.02 or higher
Nitratax clear sc, Nitratax eco sc, Nitratax plus sc / V3.13 (2013) or higher
NT3100sc/NT3200sc
Phosphax sc / V2.30 (2018) or higher
Phosphax sc LR/MR/HR / V1.01 (2018) or higher
TSS sc / V41.73 (2013) or higher
Solitax sc / V2.20 (2013) or higher
TU5300sc, TU5400sc / V1.34 (2017) or higher
SS7 sc (in Bypass) / V1.01 (2006) or higher
Ultraturb sc / V3.06 (2017) or higher
1720E / V2.10 (2006) or higher
Sonatax sc / V1.15 (2016) or higher
CL17sc / V2.7 (2019) or higher
CL10sc / V1.14 (2013) or higher
9184sc, 9185sc, 9187sc* / V2.03 (2013) or higher
Uvas plus sc / V3.01 (2017) or higher
LDO 2 sc* / V1.22 (2013) or higher
3798sc* / V2.03 (2013) or higher
3700sc + Inductive Conductive Digital Gateway 6120800 / V3.00 (2017) or higher
3422sc, Analog 3400 + Contacting Cond. Digital Gateway 6120700 / V3.00 or higher
pHD sc*, pHD-S sc / V3.10 (2016) or higher
1200-S sc* / V2.04 (2013) or higher
pHD analog + Digital Gateway 6120500 / V3.00 (2017) or higher
RC and PC analog sensor + Digital Gateway for conventional analog pH and ORP sensors 6120600 / V3.00 (2017) or higher
8362sc* / V3.00 (2017) or higher
*Hardware Version1 of instrument is not supported
