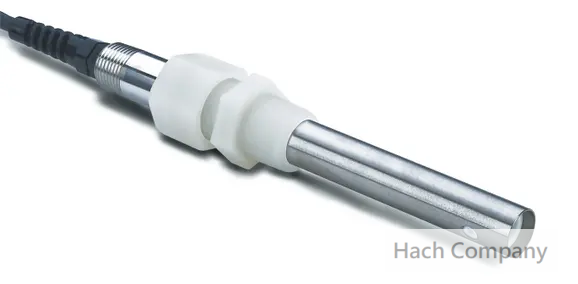

水中導電度感測器 Contacting Conductivity Sensor, High Conductivity (k=10), with ¾" PVDF Compression Fitting
產品編號：3422E3A
Ultimate accuracy from ultra-pure to high conductivity applications.
滿足超純水到高導電度應用的線上導電度監測需求
Contacting conductivity sensor with a nominal cell constant k = 10 cm-1, ¾-inch NPT PVDF compression fitting, 6 m analogue cable, and titanium electrode.
Measuring range 量測範圍 0 -200,000 µS/cm.
Electrode Material : Titanium 鈦
Accuracy : ±2 % of reading above 200 µS/cm
Repeatability : ±0.5 % of reading
Response Time T90 : 30 s
Sensitivity : ±0.5 % of reading
Sensor Thread : ½" NPT
Sensor Type : Analog
Temperature Measurement : -20 - 200 °C
Temperature Sensor : PT1000 RTD
Pressure Range : 1.7 bar at 150 °C
*使用 Hach SC系列 controllers 數位控制主機進行監控
關鍵字 : 水中導電度線上分析儀, 導電度 濃度 監測, conductivity analyzer, conductivity detector, 導電度偵測
滿足超純水到高導電度應用的線上導電度監測需求
Contacting conductivity sensor with a nominal cell constant k = 10 cm-1, ¾-inch NPT PVDF compression fitting, 6 m analogue cable, and titanium electrode.
Measuring range 量測範圍 0 -200,000 µS/cm.
Electrode Material : Titanium 鈦
Accuracy : ±2 % of reading above 200 µS/cm
Repeatability : ±0.5 % of reading
Response Time T90 : 30 s
Sensitivity : ±0.5 % of reading
Sensor Thread : ½" NPT
Sensor Type : Analog
Temperature Measurement : -20 - 200 °C
Temperature Sensor : PT1000 RTD
Pressure Range : 1.7 bar at 150 °C
*使用 Hach SC系列 controllers 數位控制主機進行監控
關鍵字 : 水中導電度線上分析儀, 導電度 濃度 監測, conductivity analyzer, conductivity detector, 導電度偵測
High Performance Design 高效能設計
These sensors are manufactured to exacting tolerances using high quality, rugged materials for demanding applications including ultra-pure water, clean-in-place (CIP), and boiler/condensate monitoring. Each sensor is tested to determine its unique, absolute four-digit cell constant. Also, each sensor has a PT1000 RTD temperature element built into its tip for exceptionally fast response to changes in temperature with ±0.1 ºC accuracy. 採用高品質、堅固材料按照嚴格的公差製造，適用於超純水、就地清洗 (CIP) 和鍋爐/冷凝水監測等要求嚴格的應用。每個感測器都經過測試以確定其獨特的、絕對的四位數電池常數。內建 PT1000 RTD 溫度元件，可對溫度變化做出極快的反應，準確度為 ±0.1 ºC。
These sensors are manufactured to exacting tolerances using high quality, rugged materials for demanding applications including ultra-pure water, clean-in-place (CIP), and boiler/condensate monitoring. Each sensor is tested to determine its unique, absolute four-digit cell constant. Also, each sensor has a PT1000 RTD temperature element built into its tip for exceptionally fast response to changes in temperature with ±0.1 ºC accuracy. 採用高品質、堅固材料按照嚴格的公差製造，適用於超純水、就地清洗 (CIP) 和鍋爐/冷凝水監測等要求嚴格的應用。每個感測器都經過測試以確定其獨特的、絕對的四位數電池常數。內建 PT1000 RTD 溫度元件，可對溫度變化做出極快的反應，準確度為 ±0.1 ºC。
Resistivity and Conductivity Measurement Capability 電阻率和導電度測量能力
These enhanced performance sensors measure from 0.057 µS/cm or 18.2 MΩ (theoretically pure water) up to 200,000 µS/cm.
These enhanced performance sensors measure from 0.057 µS/cm or 18.2 MΩ (theoretically pure water) up to 200,000 µS/cm.
Versatile mounting styles 多種靈活安裝方式
Compression Fitting Sensors feature titanium electrodes and a compression fitting for universal installation with up to 102 mm insertion depth. The ½-inch or ¾-inch male NPT compression fitting are offered in PVDF or 316 stainless steel. A longer version of this sensor is available for use with a 316 stainless steel ball valve hardware assembly to insert/retract the sensor form the process without stopping the flow. The longer version can also be used for insertion through a compression fitting. Maximum insertion depth is 178 mm.
Compression Fitting Sensors feature titanium electrodes and a compression fitting for universal installation with up to 102 mm insertion depth. The ½-inch or ¾-inch male NPT compression fitting are offered in PVDF or 316 stainless steel. A longer version of this sensor is available for use with a 316 stainless steel ball valve hardware assembly to insert/retract the sensor form the process without stopping the flow. The longer version can also be used for insertion through a compression fitting. Maximum insertion depth is 178 mm.
Full-Featured “Plug and Play” with Digital Hach SC Controllers
There are no complicated wiring or set up procedures with any Hach SC controller. Just plug in any combination of Hach digital sensors and it's ready to use—it’s “plug and play.” 無需複雜的接線或設定程式。Hach 數位感測器只需連接Hach SC系列數位控制器即可開始使用。
There are no complicated wiring or set up procedures with any Hach SC controller. Just plug in any combination of Hach digital sensors and it's ready to use—it’s “plug and play.” 無需複雜的接線或設定程式。Hach 數位感測器只需連接Hach SC系列數位控制器即可開始使用。
