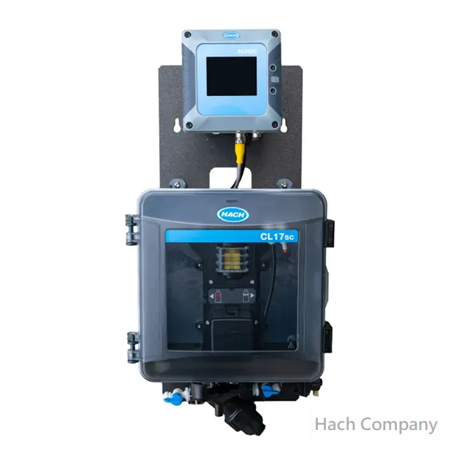

水中餘氯監測儀 Monitoring Panel with SC4500 and CL17sc
產品編號：SPMP-CL
The single parameter chlorine panels offers the CL17sc Chlorine analyzer and SC4500 controller in the convenience of one panel. These panel configurations are pre-engineered, ready to install, simple solutions that are designed to work together.
CL17sc 氯分析儀和SC4500控制器整合於同一面板使用。面板配置為預先設計，安裝簡便。
Certifications 認證 : CE compliant with: EN 61326-1, CISPR 11, EN 50581
ACMA RCM
South Korea KC Certificate
North America: FCC Supplier’s Declaration of Conformance, IEC/EN 60529, ICES-003
Parameter : Chlorine, free; Chlorine, total residual
Light Source : LED, measurement at 510 nm, 1 cm light pathlength
Range 量測範圍 : 0.03 - 10 mg/L Cl₂
Lower Limit of Detection (LOD) : 0.03 mg/L
Accuracy :
± 5% or ± 0.04 mg/L (whichever is greater) from 0 - 5 mg/L Cl₂
± 10% from 5 - 10 mg/L Cl₂
Reagent Consumption : 0.5 L of buffer solution and 0.5 L of indicator solution in 31 days
Sample Flow Rate : 60 - 200 mL/min through the instrument
Cycle Time : 2.5 minutes
Air Purge : Optional with 3/8-inch quick-connect fitting and tubing; 0.003 m3/min at 1.38 bar (20 psig) maximum
Alerts 警示 : Low and high chlorine. Dirty cell. Low and high sample flow.
關鍵字 : 餘氯 自動監測, 總氯 監測, 氯濃度連續監測, 氯連續監測儀, 線上 氯離子 檢測儀, 餘氯分析儀, 餘氯監測儀, chlorine analyzer, 線上 餘氯計, 線上 總氯計, 線上 餘氯計, 線上 游離氯計, 線上 總氯計, 餘氯 監測儀, 總氯 監測儀, 線上監測 餘氯 濃度, free chlorine Analyzer, total chlorine Analyzer, chlorine sensor
CL17sc 氯分析儀和SC4500控制器整合於同一面板使用。面板配置為預先設計，安裝簡便。
Certifications 認證 : CE compliant with: EN 61326-1, CISPR 11, EN 50581
ACMA RCM
South Korea KC Certificate
North America: FCC Supplier’s Declaration of Conformance, IEC/EN 60529, ICES-003
Parameter : Chlorine, free; Chlorine, total residual
Light Source : LED, measurement at 510 nm, 1 cm light pathlength
Range 量測範圍 : 0.03 - 10 mg/L Cl₂
Lower Limit of Detection (LOD) : 0.03 mg/L
Accuracy :
± 5% or ± 0.04 mg/L (whichever is greater) from 0 - 5 mg/L Cl₂
± 10% from 5 - 10 mg/L Cl₂
Reagent Consumption : 0.5 L of buffer solution and 0.5 L of indicator solution in 31 days
Sample Flow Rate : 60 - 200 mL/min through the instrument
Cycle Time : 2.5 minutes
Air Purge : Optional with 3/8-inch quick-connect fitting and tubing; 0.003 m3/min at 1.38 bar (20 psig) maximum
Alerts 警示 : Low and high chlorine. Dirty cell. Low and high sample flow.
關鍵字 : 餘氯 自動監測, 總氯 監測, 氯濃度連續監測, 氯連續監測儀, 線上 氯離子 檢測儀, 餘氯分析儀, 餘氯監測儀, chlorine analyzer, 線上 餘氯計, 線上 總氯計, 線上 餘氯計, 線上 游離氯計, 線上 總氯計, 餘氯 監測儀, 總氯 監測儀, 線上監測 餘氯 濃度, free chlorine Analyzer, total chlorine Analyzer, chlorine sensor
Quality from start to finish
Our panel configurations allows you to maximize the inherent quality of the instruments, providing peace of mind while leveraging Hach’s 100 years of water quality innovations.
Our panel configurations allows you to maximize the inherent quality of the instruments, providing peace of mind while leveraging Hach’s 100 years of water quality innovations.
Up and running in no time
Our preassembled, ready-to-use solutions streamline the process between purchasing and startup.
Our preassembled, ready-to-use solutions streamline the process between purchasing and startup.
Ease of installation
When you buy a water quality monitoring station from Hach, you’ll receive an expertly designed, preassembled panel that makes installation straightforward and user friendly.
When you buy a water quality monitoring station from Hach, you’ll receive an expertly designed, preassembled panel that makes installation straightforward and user friendly.
The industry standard Hach CL17sc Colorimetric Chlorine Analyzer uses colorimetric DPD chemistry to continuously monitor water for free or total chlorine. The CL17sc will operate unattended for 30 days and is compliant with US EPA regulation 40 CFR 141.74. Monthly routine maintenance for the CL17sc can be performed in a few minutes, including changing reagents and cleaning the colorimetric cell. No special tools are required, and step-by-step, on-screen instructions for all routine maintenance activities give you the confidence that you performed the task correctly without missing any key steps.
The CL17sc analysis method is not affected by changes in chlorine concentration, sample pH, temperature, flow, or pressure. This provides more reliable and accurate measurement with less operator interventions than other methods in today's market.
The CL17sc is equipped with a comprehensive set of diagnostic features that help you prevent downtime. With a built-in flow meter, three-color status light, measurement cycle indicators, colorimeter window, and on-screen diagnostics menu you'll spend less time identifying and fixing issues when they arise.
The CL17sc is also suitable for permanganate residual measurements. Laboratory and field studies demonstrate the analytical capabilities of the analyzer to determine permanganate concentration in water and confirm that it is a robust solution and a good tool for the control of challenging water treatment processes (variable water quality and demand).
*This product has not been evaluated to test for chlorine and chloramines in medical applications in the United States.
CL17sc Colorimetric Chlorine Analyzers require an SC controller for operation. If you don’t have one already, choose a Claros Enabled SC4200c. Our legacy SC200 or SC1000 controllers are also compatible with the CL17sc.
