水中懸浮固體和濁度感測儀(鈦材質) TSS TITANIUM2 sc Turbidity and Suspended Solids Immersion Probe, Titanium
產品編號：LXV329.99.10002
Turbidity and suspended solids Immersion probe specially designed for use in aggressive fluids in the industrial sector
精密型水中濁度和懸浮物含量(浸沒式)感測器，專門為工業領域侵蝕性流體分析應用而設計
The TSS Titanium2 sc is a digital process probe for the extremely accurate measurement of turbidity and suspended solids specially designed for use in aggressive fluids (e.g. organic and inorganic acids, lyes and chloride-containing solutions). This immersion probe is installed by tank-side mounting and can measure both on-line suspended solids and turbidity in one instrument. The two channel 90° scattered light turbidity method is in accordance with DIN EN ISO 7027. For the determination of suspended solids a scattered light measurement method at 120 ° is integrated. This eight channel measurement system, with an integrated bubble and temperature compensating software, enables the instrument to have a wide measuring range. The TSS Titanium2 sc probes are compatible with the Hach SC200 and SC1000 controller platform. Furthermore, they are made of titanium with a scratch resistant and easy to clean sapphire window design to withstand harsh environments.
Hach TSS Titanium2 sc 水中懸浮固體和濁度數位感測器，用於極度精確測量水中濁度和懸浮物含量，專門為侵蝕性流體（例如 有機酸和無機酸、鹼液和含氯化物溶液）而設計。此浸入式探頭採用罐側安裝方式。一台儀器即可同時線上監測懸浮物含量和濁度濃度。雙通道 90° 散射光濁度測量方法符合 DIN EN ISO 7027 標準。並且整合120° 散射光測量方法，用於測定水中懸浮物含量。此八通道測量系統整合氣泡和溫度補償軟體，因此儀器具備寬廣的測量範圍。 TSS Titanium2 sc 感測探頭與 Hach SC系列數位控制器相容。感測器探頭採用鈦金屬材質，並配備耐刮擦且易於清潔的藍寶石窗口，耐受惡劣環境應用。
Parameter 分析參數 : Turbidity, Suspended Solids
Application 應用 : Aggressive media
Measurement Method 分析方法 :
Combined multiple beam alternating light method with infrared diode system and beam focusing. 結合多光束交替光法、紅外線二極體系統和光束聚焦技術。
Turbidity (TRB) 濁度測量 : 2-channel 90º scattered light measurement in accordance with DIN EN ISO 7027, wavelength = 860 nm
Solids (TSS) 懸浮物測量 : 90º and 120º scattered light measurement, eight channel multi-angle measurement system, with an integrated bubble and temperature compensating, wavelength = 860 nm
Range 量測範圍 :
Turbidity (TRB): 0.001 - 9999 NTU
Solids (TSS): 0.001 - 500 g/L
Accuracy : Turbidity up to 1000 NTU:
< 5% of the measured value ±0.01 NTU
Repeatability :
TSS content: < 4 %
Turbidity: < 3 %
Response Time : 1 s < T90 < 300 s (adjustable)
Response Time T90 : 1 - 300 s adjustable
Calibration 校正 :
Turbidity (TRB): Factory calibrated
Solids (TS): To be calibrated by customer on site
Zero point: Permanently calibrated in the factory
Calibration Method :
Turbidity (TRB): Factory calibrated
Solids (TS): To be calibrated by customer on site
Zero point: Permanently calibrated in the factory
Maintenance Interval : 1 h/month
Pressure Range : 10 bar or 100 m
Controller Compatibility : SC200, SC1000, SC4500. All controllers sold separately
關鍵字 : 懸浮固體分析儀, 濁度分析儀, Turbidity analyzer, suspended solids analyzer,
精密型水中濁度和懸浮物含量(浸沒式)感測器，專門為工業領域侵蝕性流體分析應用而設計
The TSS Titanium2 sc is a digital process probe for the extremely accurate measurement of turbidity and suspended solids specially designed for use in aggressive fluids (e.g. organic and inorganic acids, lyes and chloride-containing solutions). This immersion probe is installed by tank-side mounting and can measure both on-line suspended solids and turbidity in one instrument. The two channel 90° scattered light turbidity method is in accordance with DIN EN ISO 7027. For the determination of suspended solids a scattered light measurement method at 120 ° is integrated. This eight channel measurement system, with an integrated bubble and temperature compensating software, enables the instrument to have a wide measuring range. The TSS Titanium2 sc probes are compatible with the Hach SC200 and SC1000 controller platform. Furthermore, they are made of titanium with a scratch resistant and easy to clean sapphire window design to withstand harsh environments.
Hach TSS Titanium2 sc 水中懸浮固體和濁度數位感測器，用於極度精確測量水中濁度和懸浮物含量，專門為侵蝕性流體（例如 有機酸和無機酸、鹼液和含氯化物溶液）而設計。此浸入式探頭採用罐側安裝方式。一台儀器即可同時線上監測懸浮物含量和濁度濃度。雙通道 90° 散射光濁度測量方法符合 DIN EN ISO 7027 標準。並且整合120° 散射光測量方法，用於測定水中懸浮物含量。此八通道測量系統整合氣泡和溫度補償軟體，因此儀器具備寬廣的測量範圍。 TSS Titanium2 sc 感測探頭與 Hach SC系列數位控制器相容。感測器探頭採用鈦金屬材質，並配備耐刮擦且易於清潔的藍寶石窗口，耐受惡劣環境應用。
Parameter 分析參數 : Turbidity, Suspended Solids
Application 應用 : Aggressive media
Measurement Method 分析方法 :
Combined multiple beam alternating light method with infrared diode system and beam focusing. 結合多光束交替光法、紅外線二極體系統和光束聚焦技術。
Turbidity (TRB) 濁度測量 : 2-channel 90º scattered light measurement in accordance with DIN EN ISO 7027, wavelength = 860 nm
Solids (TSS) 懸浮物測量 : 90º and 120º scattered light measurement, eight channel multi-angle measurement system, with an integrated bubble and temperature compensating, wavelength = 860 nm
Range 量測範圍 :
Turbidity (TRB): 0.001 - 9999 NTU
Solids (TSS): 0.001 - 500 g/L
Accuracy : Turbidity up to 1000 NTU:
< 5% of the measured value ±0.01 NTU
Repeatability :
TSS content: < 4 %
Turbidity: < 3 %
Response Time : 1 s < T90 < 300 s (adjustable)
Response Time T90 : 1 - 300 s adjustable
Calibration 校正 :
Turbidity (TRB): Factory calibrated
Solids (TS): To be calibrated by customer on site
Zero point: Permanently calibrated in the factory
Calibration Method :
Turbidity (TRB): Factory calibrated
Solids (TS): To be calibrated by customer on site
Zero point: Permanently calibrated in the factory
Maintenance Interval : 1 h/month
Pressure Range : 10 bar or 100 m
Controller Compatibility : SC200, SC1000, SC4500. All controllers sold separately
關鍵字 : 懸浮固體分析儀, 濁度分析儀, Turbidity analyzer, suspended solids analyzer,

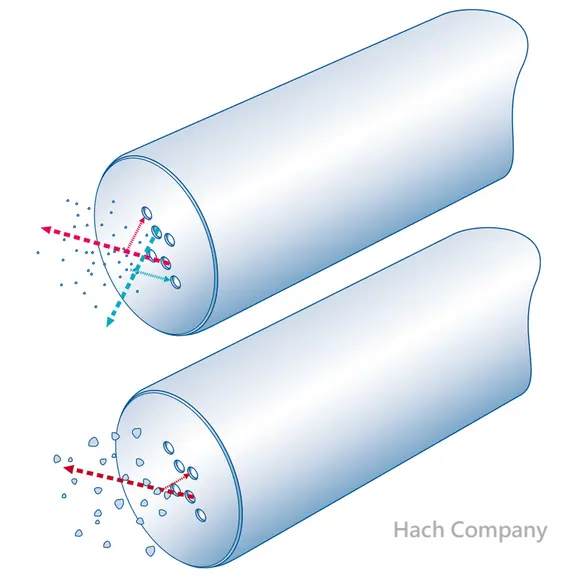

Unique Multi-Beam Pulsed Infrared Light System 獨特的多光束脈衝紅外光系統
TSS Titanium2 sc probes have a double optical system with two pulsating infrared LEDs and four receivers. This combined multiple beam alternating light method with beam focusing facilitates accurate color independent measurement of turbidity and suspended solids. 感測探頭採用雙光學系統，配備兩個脈衝紅外線LED和四個接收器。結合多光束交替照明和光束聚焦技術，能夠精確測量濁度和懸浮固體，且測量結果不受色彩影響
TSS Titanium2 sc probes have a double optical system with two pulsating infrared LEDs and four receivers. This combined multiple beam alternating light method with beam focusing facilitates accurate color independent measurement of turbidity and suspended solids. 感測探頭採用雙光學系統，配備兩個脈衝紅外線LED和四個接收器。結合多光束交替照明和光束聚焦技術，能夠精確測量濁度和懸浮固體，且測量結果不受色彩影響
Automatic Compensation for Air Bubbles and Temperature Swings for Accuracy 自動補償氣泡和溫度波動，提高精準度
Special software enables the system to recognize gas bubbles or temperature swings for a more accurate suspended solids or turbidity measurement.
Special software enables the system to recognize gas bubbles or temperature swings for a more accurate suspended solids or turbidity measurement.
Standard Compliant and Precise - Ease of Calibration 合規且精準度高 - 容易校正
The turbidity measurement complies with the standard ISO 7027. Calibration is not necessary. If the probe is used to measure the solids content, a one-point calibration suffices. For special applications, curves can be defined using several calibration points. 濁度測量符合 ISO 7027 標準，無需校正。如果探頭用於測量懸浮固體濃度，則只需進行單點校正。對於特殊應用，可使用多個校正點繪製曲線
The turbidity measurement complies with the standard ISO 7027. Calibration is not necessary. If the probe is used to measure the solids content, a one-point calibration suffices. For special applications, curves can be defined using several calibration points. 濁度測量符合 ISO 7027 標準，無需校正。如果探頭用於測量懸浮固體濃度，則只需進行單點校正。對於特殊應用，可使用多個校正點繪製曲線

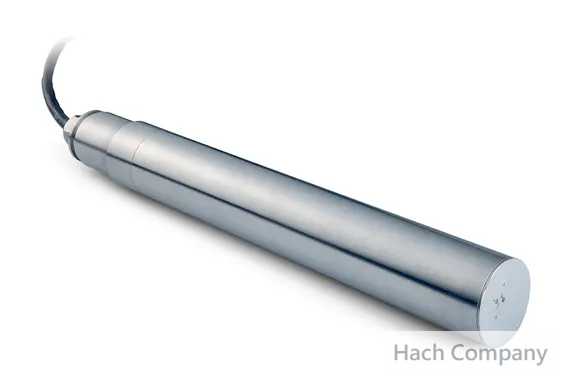

Titanium Probe Designed for the Most Difficult Environments 專門為嚴苛環境應用設計的鈦材質感測探頭
While offering the same high quality measuring properties, its special titanium body enables it to perform in aggressive fluids in the industrial sector
While offering the same high quality measuring properties, its special titanium body enables it to perform in aggressive fluids in the industrial sector

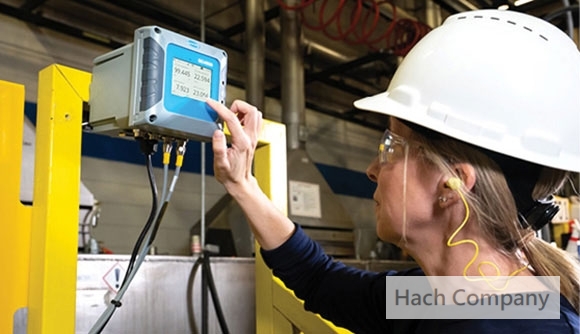

Compatible with Hach SC controller platform 與 Hach SC系列數位控制器相容
Measurement data is displayed and processed with the help of a digital Hach SC200 or SC1000 controller.
Two parameters in one instrument--Suspended Solids and Turbidity 一台儀器即可測量兩個水質參數－懸浮固體和濁度
