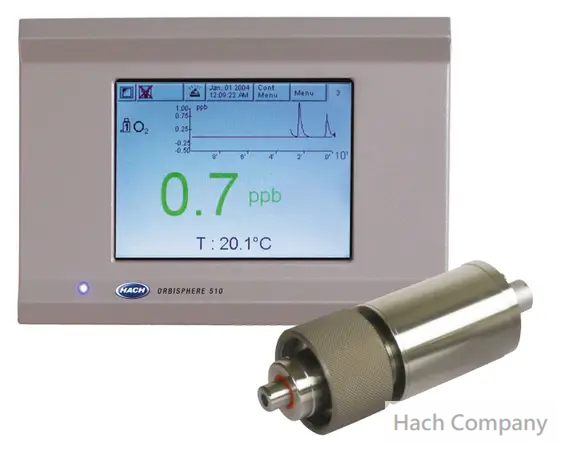

超純水溶氧感測器 Orbisphere dual-channel 510 controller, K1100 LDO sensors (0-2000 ppb), 2x ¼" flow chamber, panel mount
產品編號：DGK510KK-P-IMP
Applications 應用 : Ultrapure Water 超純水
The first maintenance-free optical oxygen sensor for power plants. 免維護型的超純水溶氧感測器
The Orbisphere K1100 is a high accuracy Luminescent Dissolved Oxygen Sensor optimized for power industry application. Since 1978, Hach Orbisphere LDO analyzers have set the industry standard for oxygen measurement by delivering confidence to every water chemistry manager. Together with the Orbisphere 410 single channel controller and the Orbisphere 510 multichannel controller, offers a new way of monitoring oxygen in power plants. Orbisphere dissolved oxygen sensors set the industry standards for oxygen measurement by offering peace of mind to every water chemist. The absence of membrane and electrolyte means that the sensor accuracy is unaffected by process changes such as changes in flow. The K1100 dissolved oxygen analyzer maintains this tradition and offers significant operating and cost benefits.
高精密度光學溶氧感測器，搭配 Orbisphere 510 雙通道數位控制器，專門為電力產業溶氧監測應用而最佳化。卓越性能為水化學管理人員帶來安心保障。由於無需膜和電解質，感測器的精密度不受流量變化等過程變化的影響。 K1100 超純水溶氧分析儀顯著提升運作效率和成本效益。
Certifications : 2004/108/EC - EN 61326-1
Range 量測範圍 : 0 - 2000 ppb dissolved O₂ (DO)
Accuracy : ± 0.8 ppb or 2 % whichever is greater
Lower Limit of Detection (LOD) : 0.6 ppb
Repeatability : ± 0.4 ppb or 1 % whichever is greater
Reproducibility : ± 0.8 ppb or 2 % whichever is greater
Response Time : (90%) <10 s (gas phase); <30 s (liquid phase)
Sample Flow Rate : 50 - 300 mL/min
Sample Pressure : 1 - 20 bar absolute (14.5 - 290 psi)
Sample Temperature : -5 - 50°C (23 - 122°F)
Temperature Range : Accurate from -5 - 50 °C (23 - 122 °F)
Resistant - temperature from -5 - 100 °C (23 - 212 °F)
Calibration 校正 : Single point zero calibration with standard 99.999% nitrogen (quality 5.0) or equivalent oxygen free gas
Controller 數位控制器 : Panel
Display Resolution : 0.1 ppb
Communication Capabilities 通訊 : 3 x 0/4-20 mA; RS485; Ethernet
Analog Outputs : 3 Smart 0/4 to 20 mA (500 Ohms) programmable as linear or tri-linear, configurable to send diagnostics or alarm information.

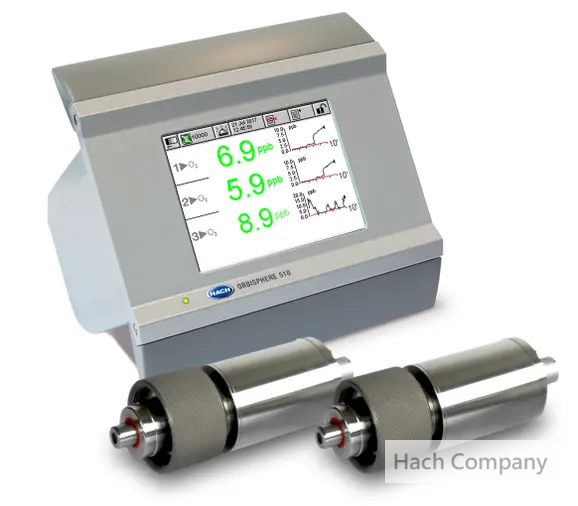

What's included 內容物 : 1x Orbisphere controller 510KK0/P1C00000, 2x K1100-S00 sensor (low level), 2x ¼" flow chamber 32001.011, 2x 32510.10 sensor cable (10 m) to connect M/K-type sensor with Orbisphere 510 instruments
關鍵字 : 超純水 溶氧分析儀, 超純水 溶氧監測儀, 監測 電廠 純水 溶氧 濃度, ultra pure water oxygen analyzer,
The first maintenance-free optical oxygen sensor for power plants. 免維護型的超純水溶氧感測器
The Orbisphere K1100 is a high accuracy Luminescent Dissolved Oxygen Sensor optimized for power industry application. Since 1978, Hach Orbisphere LDO analyzers have set the industry standard for oxygen measurement by delivering confidence to every water chemistry manager. Together with the Orbisphere 410 single channel controller and the Orbisphere 510 multichannel controller, offers a new way of monitoring oxygen in power plants. Orbisphere dissolved oxygen sensors set the industry standards for oxygen measurement by offering peace of mind to every water chemist. The absence of membrane and electrolyte means that the sensor accuracy is unaffected by process changes such as changes in flow. The K1100 dissolved oxygen analyzer maintains this tradition and offers significant operating and cost benefits.
高精密度光學溶氧感測器，搭配 Orbisphere 510 雙通道數位控制器，專門為電力產業溶氧監測應用而最佳化。卓越性能為水化學管理人員帶來安心保障。由於無需膜和電解質，感測器的精密度不受流量變化等過程變化的影響。 K1100 超純水溶氧分析儀顯著提升運作效率和成本效益。
Certifications : 2004/108/EC - EN 61326-1
Range 量測範圍 : 0 - 2000 ppb dissolved O₂ (DO)
Accuracy : ± 0.8 ppb or 2 % whichever is greater
Lower Limit of Detection (LOD) : 0.6 ppb
Repeatability : ± 0.4 ppb or 1 % whichever is greater
Reproducibility : ± 0.8 ppb or 2 % whichever is greater
Response Time : (90%) <10 s (gas phase); <30 s (liquid phase)
Sample Flow Rate : 50 - 300 mL/min
Sample Pressure : 1 - 20 bar absolute (14.5 - 290 psi)
Sample Temperature : -5 - 50°C (23 - 122°F)
Temperature Range : Accurate from -5 - 50 °C (23 - 122 °F)
Resistant - temperature from -5 - 100 °C (23 - 212 °F)
Calibration 校正 : Single point zero calibration with standard 99.999% nitrogen (quality 5.0) or equivalent oxygen free gas
Controller 數位控制器 : Panel
Display Resolution : 0.1 ppb
Communication Capabilities 通訊 : 3 x 0/4-20 mA; RS485; Ethernet
Analog Outputs : 3 Smart 0/4 to 20 mA (500 Ohms) programmable as linear or tri-linear, configurable to send diagnostics or alarm information.
What's included 內容物 : 1x Orbisphere controller 510KK0/P1C00000, 2x K1100-S00 sensor (low level), 2x ¼" flow chamber 32001.011, 2x 32510.10 sensor cable (10 m) to connect M/K-type sensor with Orbisphere 510 instruments
關鍵字 : 超純水 溶氧分析儀, 超純水 溶氧監測儀, 監測 電廠 純水 溶氧 濃度, ultra pure water oxygen analyzer,
One calibration per year 每年一次校正
One zero point calibration per year is all that is needed with the K1100 sensor. Designed for minimal drift, luminescent technology makes the K1100 sensor the most stable sensor with the longest calibration interval in the industry.
One zero point calibration per year is all that is needed with the K1100 sensor. Designed for minimal drift, luminescent technology makes the K1100 sensor the most stable sensor with the longest calibration interval in the industry.
No membranes = two minutes of maintenance 無需膜片 = 兩分鐘維護
With no membranes to replace and no electrolyte solution to replenish, the K1100 requires only two minutes of maintenance per year. Corrosive or hazardous chemicals are not required, making the annual task faster, easier and safer without reducing measurement precision.
With no membranes to replace and no electrolyte solution to replenish, the K1100 requires only two minutes of maintenance per year. Corrosive or hazardous chemicals are not required, making the annual task faster, easier and safer without reducing measurement precision.
Low cost retrofit
The complete system consists of a controller, a flow chamber, and the K1100 Luminescent Dissolved Oxygen Sensor. The sensor is compatible with Hach Orbisphere 28 mm flow chambers, eliminating the need for engineering changes. Installation is fast and easy and does not require special preparation. 整套系統包含控制器、流量室和 K1100 光學溶氧感測器。此感測器與 Hach Orbisphere 28 mm 流量室相容，無需進行任何工程改造。安裝快速簡便，無需特殊準備。
The complete system consists of a controller, a flow chamber, and the K1100 Luminescent Dissolved Oxygen Sensor. The sensor is compatible with Hach Orbisphere 28 mm flow chambers, eliminating the need for engineering changes. Installation is fast and easy and does not require special preparation. 整套系統包含控制器、流量室和 K1100 光學溶氧感測器。此感測器與 Hach Orbisphere 28 mm 流量室相容，無需進行任何工程改造。安裝快速簡便，無需特殊準備。
A new level of confidence
The K1100 optical sensor is the first to use luminescent measurement technology to measure both ppb and ppm oxygen levels in power plants. Since 1978, Hach Orbisphere sensors have set the industry standard for oxygen measurement by delivering confidence to every water chemistry manager. The K1100 maintains this tradition and offers significant operating and cost benefits. K1100 光學感測器是首款採用光學測量技術測量電廠 ppb 和 ppm 等級溶氧濃度的感測器。
The K1100 optical sensor is the first to use luminescent measurement technology to measure both ppb and ppm oxygen levels in power plants. Since 1978, Hach Orbisphere sensors have set the industry standard for oxygen measurement by delivering confidence to every water chemistry manager. The K1100 maintains this tradition and offers significant operating and cost benefits. K1100 光學感測器是首款採用光學測量技術測量電廠 ppb 和 ppm 等級溶氧濃度的感測器。
