水中銅自動分析儀 EZ2002 Total Copper Analyzer
產品編號：
Online colorimetric analysis of Total Copper in water
採用線上比色法分析水中總銅濃度
EZ2000 Total Copper Analyzers achieve excellent precision and accuracy. At the heart of the colorimeter there is a compact photometer assembly developed especially for the EZ Series. Consumption of reagents is reduced by low volume analysis, yet high sensitivity is assured by a long optical path length. The limit of detection is in the low µg/L range.
優異的精準度。精巧型光度計元件設計。低容量分析可減少試劑消耗，長光程確保高靈敏度。偵測限值低至 µg/L 範圍。
EZ2000 Total Copper Analyzers have an internal digestion unit. This additional step prior to analysis allows to measure non-soluble or complexed metal species.
內建消解裝置。分析前的此一附加步驟可用於測量不溶性或絡合金屬。
Measurement Method 量測方法 : Colorimetric measurement at 546 nm using bicinchoninate method, conform with USEPA Method 8506
Range 量測範圍 : 0.03 - 3 mg/L Cu
Optional:
0.003 - 0.3 mg/L
0.02 - 0.75 mg/L
0.02 - 1.5 mg/L
0.2 - 12 mg/L (with internal dilution)
0.5 - 30 mg/L (with internal dilution)
3 - 60 mg/L (with internal dilution)
Precision : Better than 2% full scale range for standard test solutions
Lower Limit of Detection (LOD) : ≤ 3 µg/L
Cycle Time : 20 minutes Total Cu (dilution + 5 min.)
30 minutes Total Cu & Cu(II)
Calibration : Automatic, 2-point; frequency freely programmable
Number of sample streams 水樣流 : 1, 2, 4 or 8
Certifications : CE compliant / UL certified
Analog Outputs : Active 4 - 20 mA max. 500 Ohm load, standard 1, max. 8 (option)
Digital Outputs : Optional: Modbus (TCP/IP, RS485)
關鍵字 : 水中銅監測儀, 水中銅 線上監測, 水中銅 濃度 分析儀, Cu analyzer, wastewater Copper sensor
採用線上比色法分析水中總銅濃度
EZ2000 Total Copper Analyzers achieve excellent precision and accuracy. At the heart of the colorimeter there is a compact photometer assembly developed especially for the EZ Series. Consumption of reagents is reduced by low volume analysis, yet high sensitivity is assured by a long optical path length. The limit of detection is in the low µg/L range.
優異的精準度。精巧型光度計元件設計。低容量分析可減少試劑消耗，長光程確保高靈敏度。偵測限值低至 µg/L 範圍。
EZ2000 Total Copper Analyzers have an internal digestion unit. This additional step prior to analysis allows to measure non-soluble or complexed metal species.
內建消解裝置。分析前的此一附加步驟可用於測量不溶性或絡合金屬。
Measurement Method 量測方法 : Colorimetric measurement at 546 nm using bicinchoninate method, conform with USEPA Method 8506
Range 量測範圍 : 0.03 - 3 mg/L Cu
Optional:
0.003 - 0.3 mg/L
0.02 - 0.75 mg/L
0.02 - 1.5 mg/L
0.2 - 12 mg/L (with internal dilution)
0.5 - 30 mg/L (with internal dilution)
3 - 60 mg/L (with internal dilution)
Precision : Better than 2% full scale range for standard test solutions
Lower Limit of Detection (LOD) : ≤ 3 µg/L
Cycle Time : 20 minutes Total Cu (dilution + 5 min.)
30 minutes Total Cu & Cu(II)
Calibration : Automatic, 2-point; frequency freely programmable
Number of sample streams 水樣流 : 1, 2, 4 or 8
Certifications : CE compliant / UL certified
Analog Outputs : Active 4 - 20 mA max. 500 Ohm load, standard 1, max. 8 (option)
Digital Outputs : Optional: Modbus (TCP/IP, RS485)
關鍵字 : 水中銅監測儀, 水中銅 線上監測, 水中銅 濃度 分析儀, Cu analyzer, wastewater Copper sensor
Results you can rely on 專業穩定可靠

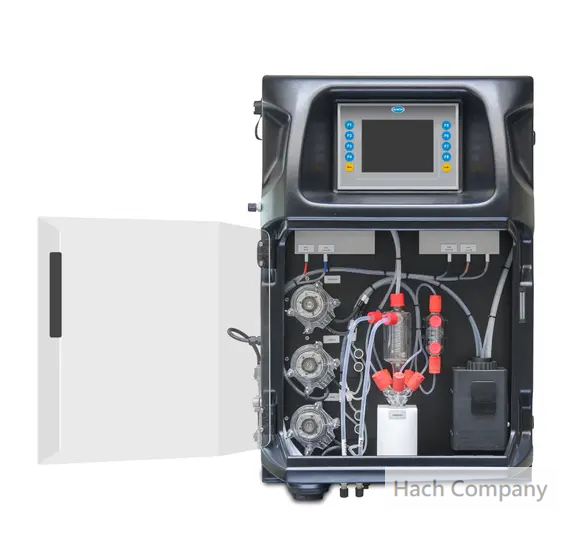

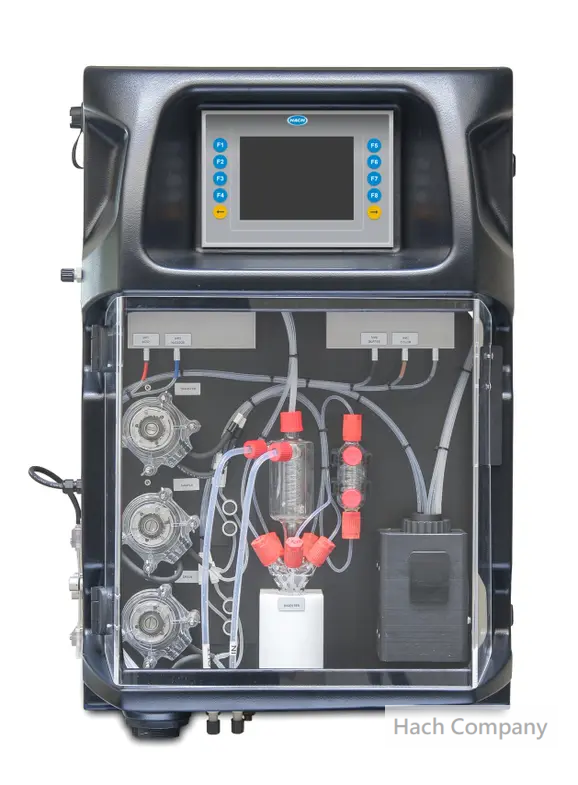

Smart automatic features for calibration, validation, priming and cleaning are embedded in the controller software and contribute to analytical performance, maximized uptime and negligible operator invervention. Precision micropumps dose all reagents. Sample lines and analysis vessel are cleaned with demineralized water to eliminate cross contamination between samples. Electronic and wet-chemical part of the analyzer are strictly separated. A transparent door allows for instant visual inspection of the wet part.
Smart automatic features for calibration, validation, priming and cleaning are embedded in the controller software and contribute to analytical performance, maximized uptime and negligible operator invervention. Precision micropumps dose all reagents. Sample lines and analysis vessel are cleaned with demineralized water to eliminate cross contamination between samples. Electronic and wet-chemical part of the analyzer are strictly separated. A transparent door allows for instant visual inspection of the wet part.
內建智慧自動化功能，用於校正、驗證、預充和清潔，提高分析效能，大幅延長正常運作時間，大幅減少操作人員干預。精密微型幫浦負責所有試劑的定量。水樣管路和分析容器採用去離子水清洗，以消除樣品之間的交叉污染。分析儀的電子部分和濕化學部分嚴格分離。透明門方便使用者即時目視檢查濕化學部分。
Flexibility that meets your needs 高度靈活性
EZ Series Total Copper Analyzers come in an attractive, ergonomic mainframe with a compact footprint. All hardware is controlled by the integrated industrial panel PC. The modular build allows for the analyzer to match your application and operational needs.
EZ Series Total Copper Analyzers come in an attractive, ergonomic mainframe with a compact footprint. All hardware is controlled by the integrated industrial panel PC. The modular build allows for the analyzer to match your application and operational needs.
人體工學設計主機，體積精巧。所有硬體均由整合式工業平板電腦控制。模組化結構滿足您的應用和操作需求。
- The standard measuring range can be narrowed by a different calibration range or extended via internal dilution options.
- Analog and digital output options
- Multiple stream analysis for up to 8 sample streams
- The standard measuring range can be narrowed by a different calibration range or extended via internal dilution options.
- Analog and digital output options
- Multiple stream analysis for up to 8 sample streams
There are many additional options available. Please contact Hach for more details.
