Kipp & Zonen RaZON+ Sun Tracker 太陽日照追蹤器
產品編號：0382900

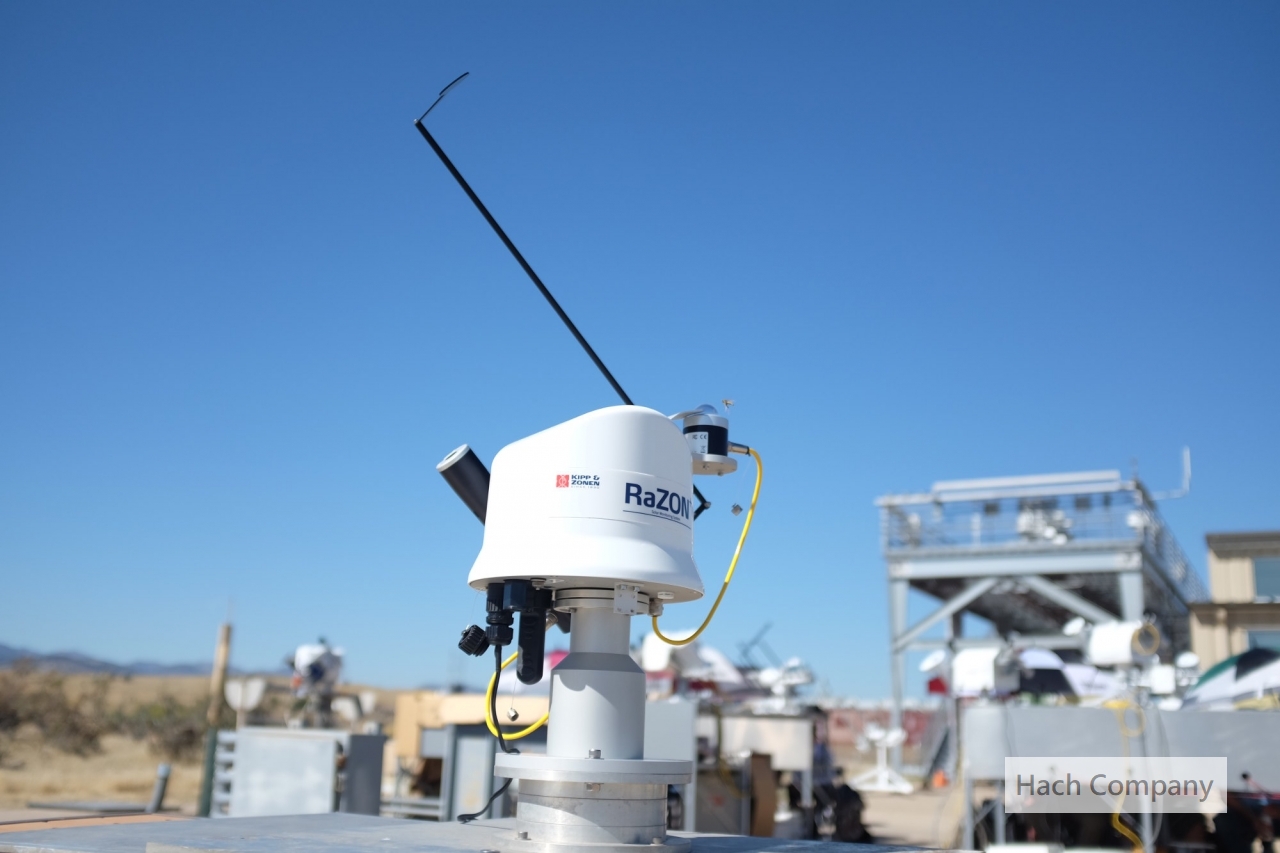

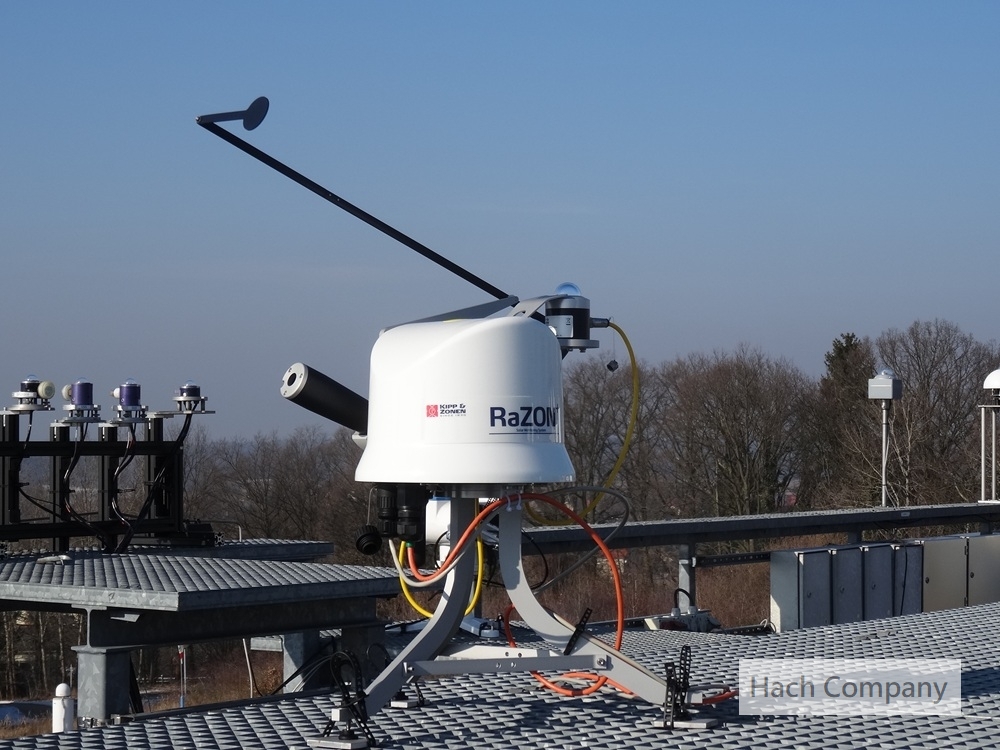

The Kipp & Zonen RaZON+ is an all-in-one system that accurately measures both direct normal irradiance (DNI) and diffuse horizontal irradiance (DHI) from the sun and sky, enabling it to provide very reliable values of global horizontal solar irradiance (GHI) and sunshine duration. The integrated data logger presents the irradiance measurements in W/m², sunshine duration in hours and energy in kWh/m² (kilowatt-hours per square meter).

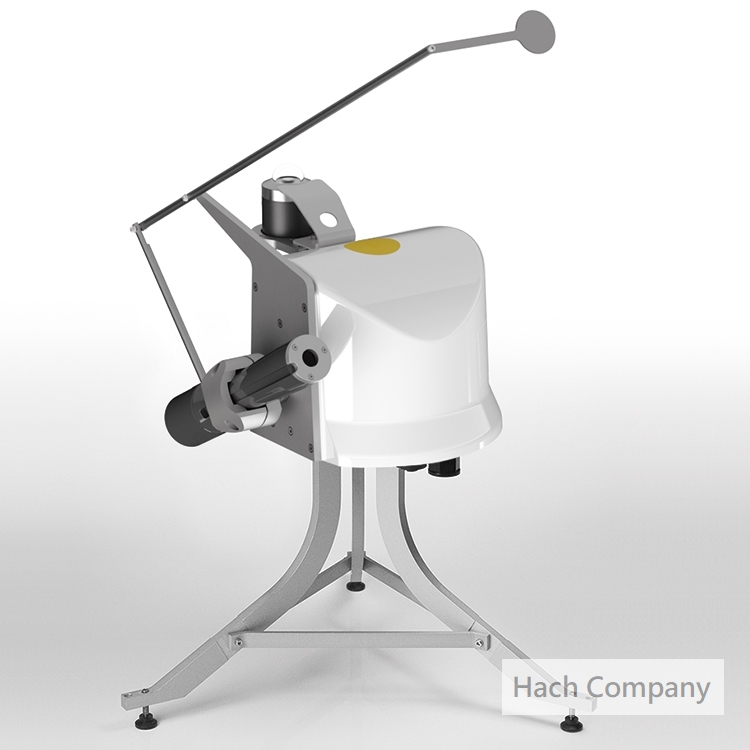

RaZON+ is fitted as standard with the PR1 pyranometer and PH1 pyrheliometer. A base version is also available for mounting SMP/SHP radiometers. Even though the standard RaZON+ instrument specifications are Class C, the calculated GHI is as accurate as the Kipp & Zonen SMP10 Class A pyranometer. The uncertainty of the PH1 is proven to be within 1% of Kipp & Zonen CHP1 and SHP1 pyrheliometers.
Applications: It is a perfect fit for small meteorological stations, used in temperate climates. Ideal for solar energy resource mapping, Concentrated Solar Power (CSP), Concentrated Photovoltaics (CPV) and tracking PV site prospecting. Continuous power plant monitoring.
RaZON+為一款多合一功能整合系統，可準確測量來自太陽和天空的直接法向輻照度(DNI)和散射水平輻照度(DHI)，以提供可靠的全球水平太陽輻照度(GHI)和日照持續時間的值。

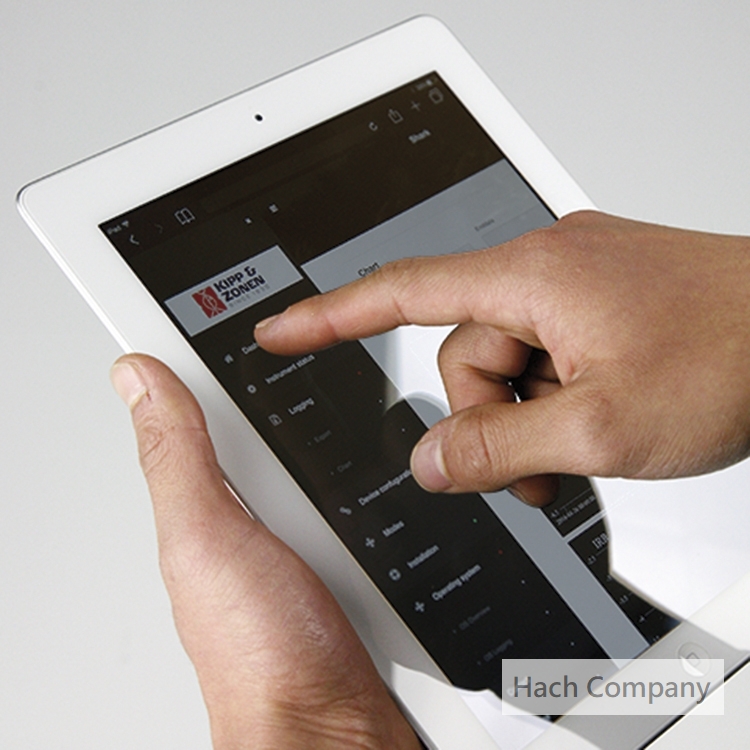

整合型的數據記錄器以W/m2代表輻照度測量值，以小時為單位的日照持續時間，和以千瓦時/m2的電能顯示。透過Wi-Fi連接設計，您可以使用任何智慧型設備(例如平板電腦)輕鬆設定和配置RaZON+。
Applications 應用領域 :
Commercial & Industrial Solar 商業及工業太陽能
Meteorology Observations 氣象觀測
Meteorology Research 氣象研究
Solar Site Prospecting & Research 太陽能電站選址及研究
Utility-Scale Solar 公用事業規模太陽能電站
RaZON+ is fitted as standard with the PR1 pyranometer and PH1 pyrheliometer. A base version is also available for mounting SMP/SHP radiometers. Even though the standard RaZON+ instrument specifications are Class C, the calculated GHI is as accurate as the Kipp & Zonen SMP10 Class A pyranometer. The uncertainty of the PH1 is proven to be within 1% of Kipp & Zonen CHP1 and SHP1 pyrheliometers.
Applications: It is a perfect fit for small meteorological stations, used in temperate climates. Ideal for solar energy resource mapping, Concentrated Solar Power (CSP), Concentrated Photovoltaics (CPV) and tracking PV site prospecting. Continuous power plant monitoring.
RaZON+為一款多合一功能整合系統，可準確測量來自太陽和天空的直接法向輻照度(DNI)和散射水平輻照度(DHI)，以提供可靠的全球水平太陽輻照度(GHI)和日照持續時間的值。
整合型的數據記錄器以W/m2代表輻照度測量值，以小時為單位的日照持續時間，和以千瓦時/m2的電能顯示。透過Wi-Fi連接設計，您可以使用任何智慧型設備(例如平板電腦)輕鬆設定和配置RaZON+。
Applications 應用領域 :
Commercial & Industrial Solar 商業及工業太陽能
Meteorology Observations 氣象觀測
Meteorology Research 氣象研究
Solar Site Prospecting & Research 太陽能電站選址及研究
Utility-Scale Solar 公用事業規模太陽能電站
Anti-soiling & low maintenance
Thanks to the open collimator tube design and the quartz diffuser, the pyrheliometer is resistant to the effects of soiling. Moreover, RaZON+ is based on a completely maintenance-free gear drive sun tracking mechanism.
Thanks to the open collimator tube design and the quartz diffuser, the pyrheliometer is resistant to the effects of soiling. Moreover, RaZON+ is based on a completely maintenance-free gear drive sun tracking mechanism.
Internal data logging with web access
RaZON+ comes with internal data logging of all parameters in one data set. Choose either the Ethernet or RS-485 interfaces (Modbus® RTU or ASCII) to download your data. The data is presented in a complete interface with data, graphs and status information.
RaZON+ comes with internal data logging of all parameters in one data set. Choose either the Ethernet or RS-485 interfaces (Modbus® RTU or ASCII) to download your data. The data is presented in a complete interface with data, graphs and status information.
Expand RaZON+ with additional sensors
An extra Modbus® input is fitted, which will allow additional sensors to be connected with future updates; for example PV panel temperature, tilted irradiance or a compact weather station.
An extra Modbus® input is fitted, which will allow additional sensors to be connected with future updates; for example PV panel temperature, tilted irradiance or a compact weather station.
