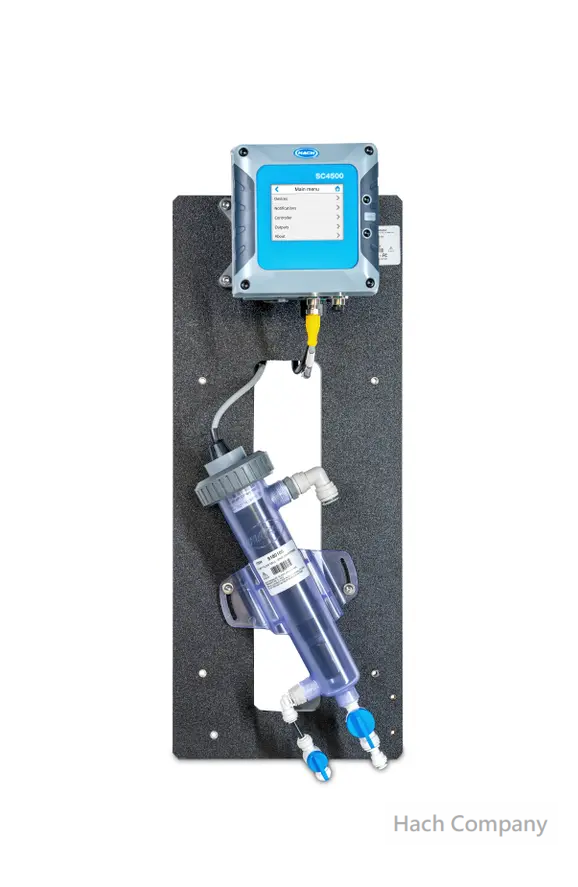

水中酸鹼度監測儀 Single Parameter Monitoring Panel with SC4500 and Digital pH Sensor
產品編號：109972
Expertise + Simplicity 專業技術 + 簡單操作
The single parameter pH panel offers Digital pHD sensor and SC4500 controller in the convenience of one panel. These panel configurations are pre-engineered, ready to install and simple solutions that are designed to work together
此款 pH 控制面板將數位 pHD 感測器和 SC4500 數位控制器整合於一控制面板，使用容易。面板配置經過預先設計，安裝簡便，可輕鬆達成協同工作。
Certifications 認證 : SC4500 Controller is CE compliant and is TÜV listed to UL and CSA safety standards
Compliance 合規 : Hazardous location, Maritime, CE
Range 量測範圍 : -2.0 - 14.0 pH
Repeatability : ± 0.05 pH
Accuracy : ± 0.02 pH
Sensitivity : ± 0.01 pH
Flow Rate : 10 ft. (3 m) per second, maximum
Sample Flow Rate : 500 - 833 mL/min
Sample Pressure : Max. 345 kPa (50 psi) maximum
Drift : 0.03 pH per 24 hours, non-cumulative
Pressure Range 壓力範圍 : Maximum 10.7 bar. 6.9 bar for Digital Sensor at 158 °F (70 °C), and 6.9 bar for Analog Sensor at 221 °F (105 °C).
Temperature Sensor 溫度感測器 : NTC 300 Ω thermistor for automatic temperature compensation and analyzer temperature readout
Temperature Compensation 溫度補償 : Automatic with NTC 300 Ω thermistor, or manually fixed at a user-entered temperature, additional selectable temperature correction factors (ammonia, morpholine, or user-defined pH/°C linear slope) available for pure water automatic compensation 0.0 - 50 °C
Calibration Method 校正 : Two point automatic, one point automatic, two point manual, one point manual
Wetted Materials : PEEK or PPS, salt bridge of matching material with PVDF junction, glass process electrode, titanium ground electrode, and FKM/FPM O-ring seals (pH sensor with optional HF-resistant glass process electrode has 316 stainless steel ground electrode, and perfluoro elastomer wetted O-rings; consult factory for other available wetted O-ring materials)
Mounting 安裝方式 : Wall or rack mounting
What's included 內容物 : SC4500 Controller, Claros-enabled, 5x mA Output, 2 digital Sensors, 100-240 VAC, US plug (LXV525.99EA1551)
Digital pH Sensor, PPS, Water Distribution Monitoring Panel Mounting (DPD1R1-WDMP)
User Manual
關鍵字 : 酸鹼度線上分析儀, 酸鹼度分析儀, Online pH analyzer, online pH sensor, 線上即時監測 水中酸鹼度
The single parameter pH panel offers Digital pHD sensor and SC4500 controller in the convenience of one panel. These panel configurations are pre-engineered, ready to install and simple solutions that are designed to work together
此款 pH 控制面板將數位 pHD 感測器和 SC4500 數位控制器整合於一控制面板，使用容易。面板配置經過預先設計，安裝簡便，可輕鬆達成協同工作。
Certifications 認證 : SC4500 Controller is CE compliant and is TÜV listed to UL and CSA safety standards
Compliance 合規 : Hazardous location, Maritime, CE
Range 量測範圍 : -2.0 - 14.0 pH
Repeatability : ± 0.05 pH
Accuracy : ± 0.02 pH
Sensitivity : ± 0.01 pH
Flow Rate : 10 ft. (3 m) per second, maximum
Sample Flow Rate : 500 - 833 mL/min
Sample Pressure : Max. 345 kPa (50 psi) maximum
Drift : 0.03 pH per 24 hours, non-cumulative
Pressure Range 壓力範圍 : Maximum 10.7 bar. 6.9 bar for Digital Sensor at 158 °F (70 °C), and 6.9 bar for Analog Sensor at 221 °F (105 °C).
Temperature Sensor 溫度感測器 : NTC 300 Ω thermistor for automatic temperature compensation and analyzer temperature readout
Temperature Compensation 溫度補償 : Automatic with NTC 300 Ω thermistor, or manually fixed at a user-entered temperature, additional selectable temperature correction factors (ammonia, morpholine, or user-defined pH/°C linear slope) available for pure water automatic compensation 0.0 - 50 °C
Calibration Method 校正 : Two point automatic, one point automatic, two point manual, one point manual
Wetted Materials : PEEK or PPS, salt bridge of matching material with PVDF junction, glass process electrode, titanium ground electrode, and FKM/FPM O-ring seals (pH sensor with optional HF-resistant glass process electrode has 316 stainless steel ground electrode, and perfluoro elastomer wetted O-rings; consult factory for other available wetted O-ring materials)
Mounting 安裝方式 : Wall or rack mounting
What's included 內容物 : SC4500 Controller, Claros-enabled, 5x mA Output, 2 digital Sensors, 100-240 VAC, US plug (LXV525.99EA1551)
Digital pH Sensor, PPS, Water Distribution Monitoring Panel Mounting (DPD1R1-WDMP)
User Manual
關鍵字 : 酸鹼度線上分析儀, 酸鹼度分析儀, Online pH analyzer, online pH sensor, 線上即時監測 水中酸鹼度
Quality from start to finish
Our panel configurations allow you to maximize the inherent quality of the instruments, providing peace of mind while leveraging Hach’s 100 years of water quality innovations.
Our panel configurations allow you to maximize the inherent quality of the instruments, providing peace of mind while leveraging Hach’s 100 years of water quality innovations.
Up and running in no time
Our preassembled, ready-to-use solutions streamline the process between purchasing and startup.
Our preassembled, ready-to-use solutions streamline the process between purchasing and startup.
When you buy a water quality monitoring station from Hach, you’ll receive an expertly designed, preassembled panel that makes installation straightforward and user friendly.
