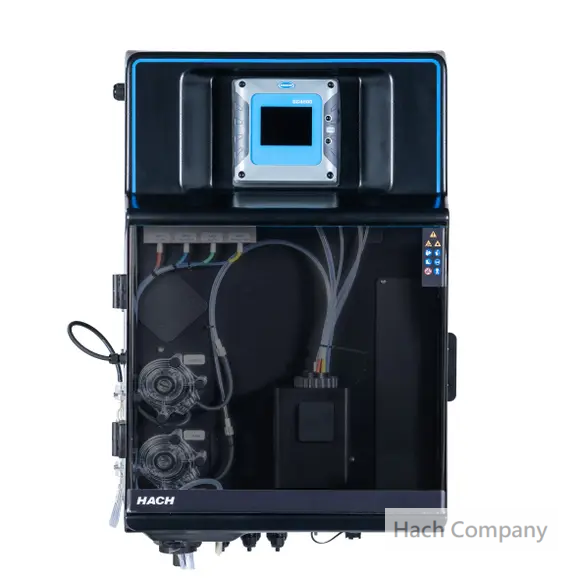

The EZ2710sc Total Copper Analyzer with the SC4500 Controller is essential for accurately monitoring copper in water. It tackles challenges like process inefficiencies and regulatory compliance, streamlining workflows and ensuring reliable performance. Built for easy integration and dependability, it helps operators minimize downtime and stay in control of critical processes.
EZ2710sc 總銅分析儀內建 SC4500 數位控制器精確監測水中銅濃度。簡化工作流程，效能穩定可靠。容易整合，協助操作人員大幅減少停機時間，並掌控關鍵流程。

Flexible Customization 彈性配置
The EZ2710sc Total Copper Analyzer is built to adapt to your unique operational needs. Starting with a baseline configuration of 1 stream and 4x mA outputs, it can be upgraded to handle up to 8 streams and 8x mA outputs as requirements grow. Multiple connectivity options—including Modbus RTU, Modbus TCP/IP, Profibus DP, and Ethernet/IP—ensure smooth integration with existing plant systems, enabling efficient and effective monitoring even in complex environments.
基本配置為 1 個水樣流和 4 個 mA 輸出，並可依需求選購升級至最多 8 個水樣流和 8 個 mA 輸出。多種連接選項（包括 Modbus RTU、Modbus TCP/IP、Profibus DP 和 Ethernet/IP）與既有系統無縫整合，即使在複雜的水樣環境中也能達到高效率的監控。

Reliable and Easy to Use 穩定可靠 容易使用
Built to perform reliably under demanding conditions, the EZ2710sc Total Copper Analyzer delivers consistent, high-accuracy copper measurements. Its intuitive user interface reduces complexity, making it easy to set up and operate. With low-maintenance requirements and a durable design, this Analyzer minimizes operational interruptions, allowing you to focus on driving efficiency and achieving compliance.
專門為在嚴苛條件下可靠運作而設計，穩定、高精準度的監測水中銅濃度。直覺化設計的使用介面降低複雜度，讓設定和操作更加方便簡捷。日常維護需求量低以及耐用設計，大幅減少運行中斷，讓您能夠專注於提高效率並達到合規。

Certifications 認證 : CE compliant / ETL certified

Parameter 分析參數 : Copper, total

Measurement Method 量測方法 : Colorimetric measurement at 546 nm using bicinchoninate method, conform with USEPA Method 8506

Range 量測範圍 :
0.003 - 0.3 mg/L
0.02 - 0.75 mg/L
0.02 - 1.5 mg/L
0.03 - 3 mg/L

Precision : Better than 2% full scale range for standard test solutions

Lower Limit of Detection (LOD) : ≤ 3 µg/L

Sample Flow Rate : 100 - 300 mL/min

Cycle Time : 20 minutes Total Cu (dilution + 5 min.)
30 minutes Total Cu & Cu(II)

Calibration : Automatic, 2-point; frequency freely programmable

Validation : Automatic; frequency freely programmable

Number of sample streams 水樣流 : 1, 2, 4 or 8

Automatic cleaning : Yes

Analog Outputs : Active 4 - 20 mA max. 500 Ohm load, standard 1, max. 8 (option)
Digital Outputs : Optional: Modbus (TCP/IP, RS485)
