海水濁度監測儀 Ultraturb seawater sc Turbidimeter with 10 m Cable
產品編號：LPV415.99.32002
Turbidities in the range of FNU (NTU) 0.0001-1,000 are measured and displayed alphanumerically using a controller. This high resolution facilitates precision differentiation, even for ultra clear liquids. A pulsed, long-life IR radiation source (LED) ensures that costs are minimized.
數位控制器以字母數字方式顯示 0.0001-1000 FNU (NTU) 濃度範圍內的濁度數值。此高解析度即使對於超清澈的液體也能達到精確測量。長使用年限的紅外線輻射源 (LED) 讓成本最小化。
Designed in accordance with DIN EN ISO 7027 and permanently calibrated before leaving the factory.
All key data is set to practical standard values. The instruments are immediately ready for use after connection to the power supply and the supply of sample water.
Hach Ultraturb 海水濁度監測儀器依照 DIN EN ISO 7027 國際標準設計，並在出廠前進行永久校正。所有關鍵數據均設定為實用標準值。連接電源和水樣後，儀器即可立即使用。
The measuring range and all data outputs are modified to suit requirements using menus on the controller. All optical and electronic assemblies are installed in housings that are physically very strong and proof against water jets.
測量範圍和所有資料輸出都可透過數位控制器上的選單進行控制，以滿足不同需求。所有光學和電子組件均安裝在堅固耐用的外殼內，可抵禦水柱衝擊。
The turbidity bypass sensor that brings clarity
Measurement Method 量測方法 : 90° infrared pulse scattered light technique in accordance with DIN EN ISO 7027
Range 量測範圍 : 0.0001 - 1000 FNU (TE/F, NTU, FNU) can be programmed as required (0.001-250 EBC = 2500 ppm SiO2) (Note: 1 FNU is equivalent to 1 NTU)
Accuracy : ± 0.008 FNU ±1% of reading whichever is greater
(0 - 10 FNU)
Repeatability 重複性 : ± 0.003 FNU or ± 0.5% of reading (whichever is greater) from 0 - 2 FNU
Response Time 反應時間 : 1 - 60 s (programmable)
Sample Flow Rate : 0.2 to 1 L/min
Calibration Method 校正 : Stablcal
Automatic Wiper : Yes
Verification : Stablcal

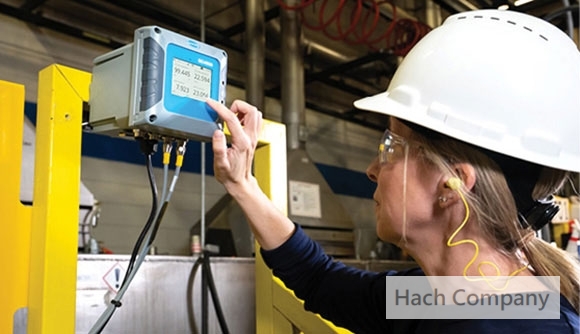

Display 顯示 : Display provided through connection with Hach sc Controller 使用Hach sc系列數位控制器進行控制 (sold separately)
關鍵字 : 海水 濁度 分析儀, sea water turbidity, 海水濁度計, 海水濁度監測, seawater turbidity analyzer, 半鹹水濁度監測, 半鹹水 濁度 分析儀,
數位控制器以字母數字方式顯示 0.0001-1000 FNU (NTU) 濃度範圍內的濁度數值。此高解析度即使對於超清澈的液體也能達到精確測量。長使用年限的紅外線輻射源 (LED) 讓成本最小化。
Designed in accordance with DIN EN ISO 7027 and permanently calibrated before leaving the factory.
All key data is set to practical standard values. The instruments are immediately ready for use after connection to the power supply and the supply of sample water.
Hach Ultraturb 海水濁度監測儀器依照 DIN EN ISO 7027 國際標準設計，並在出廠前進行永久校正。所有關鍵數據均設定為實用標準值。連接電源和水樣後，儀器即可立即使用。
The measuring range and all data outputs are modified to suit requirements using menus on the controller. All optical and electronic assemblies are installed in housings that are physically very strong and proof against water jets.
測量範圍和所有資料輸出都可透過數位控制器上的選單進行控制，以滿足不同需求。所有光學和電子組件均安裝在堅固耐用的外殼內，可抵禦水柱衝擊。
The turbidity bypass sensor that brings clarity
Measurement Method 量測方法 : 90° infrared pulse scattered light technique in accordance with DIN EN ISO 7027
Range 量測範圍 : 0.0001 - 1000 FNU (TE/F, NTU, FNU) can be programmed as required (0.001-250 EBC = 2500 ppm SiO2) (Note: 1 FNU is equivalent to 1 NTU)
Accuracy : ± 0.008 FNU ±1% of reading whichever is greater
(0 - 10 FNU)
Repeatability 重複性 : ± 0.003 FNU or ± 0.5% of reading (whichever is greater) from 0 - 2 FNU
Response Time 反應時間 : 1 - 60 s (programmable)
Sample Flow Rate : 0.2 to 1 L/min
Calibration Method 校正 : Stablcal
Automatic Wiper : Yes
Verification : Stablcal
Display 顯示 : Display provided through connection with Hach sc Controller 使用Hach sc系列數位控制器進行控制 (sold separately)
關鍵字 : 海水 濁度 分析儀, sea water turbidity, 海水濁度計, 海水濁度監測, seawater turbidity analyzer, 半鹹水濁度監測, 半鹹水 濁度 分析儀,
Large measuring range: 0.0001 - 1,000 NTU 寬廣量測範圍
The Hach Ultraturb plus sc Sensor measures turbidity from 0 to 1000 FNU (NTU) for a wide variety of low to medium range turbidity applications. Use it to effectively monitor conventional filtered water processes, effluent water, distribution systems, and elevated tanks where small-sized particulates or air entrapment may be an issue.
The Hach Ultraturb plus sc Sensor measures turbidity from 0 to 1000 FNU (NTU) for a wide variety of low to medium range turbidity applications. Use it to effectively monitor conventional filtered water processes, effluent water, distribution systems, and elevated tanks where small-sized particulates or air entrapment may be an issue.
Self-cleaning Sample Chamber Option 自動清潔水樣室設計
The Ultraturb sensor is available with an automatically self-cleaning sample chamber that guarantees stable measured values. The silicon wiper blades inside the sample chamber are held in place with a magnetic coupling wheel to further keep the sample chamber intact.
The Ultraturb sensor is available with an automatically self-cleaning sample chamber that guarantees stable measured values. The silicon wiper blades inside the sample chamber are held in place with a magnetic coupling wheel to further keep the sample chamber intact.
Suitable for seawater, brackish water, raw water and other applications
The new Ultraturb seawater sc is resistant to salt concentrations up to 65 g/L.
The new Ultraturb seawater sc is resistant to salt concentrations up to 65 g/L.
Ratio Methodology Detects Sample Chamber Fouling
The Ultraturb sensor uses ratio methodology with detection at 90° and 180° to minimize reflections in the measuring cell and on the windows. In this way, fouling of the sample chamber is detected earlier than with a single detection system.
The Ultraturb sensor uses ratio methodology with detection at 90° and 180° to minimize reflections in the measuring cell and on the windows. In this way, fouling of the sample chamber is detected earlier than with a single detection system.
